Specifications: Brand: HAKRC

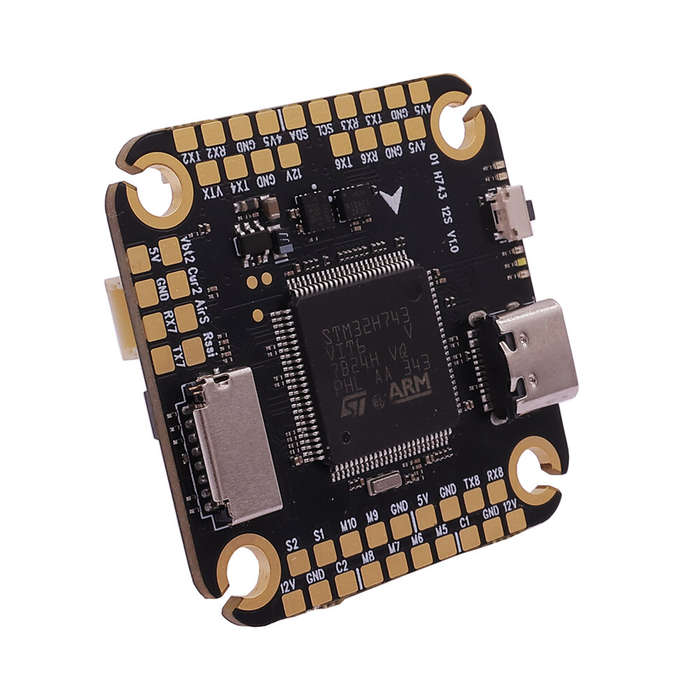

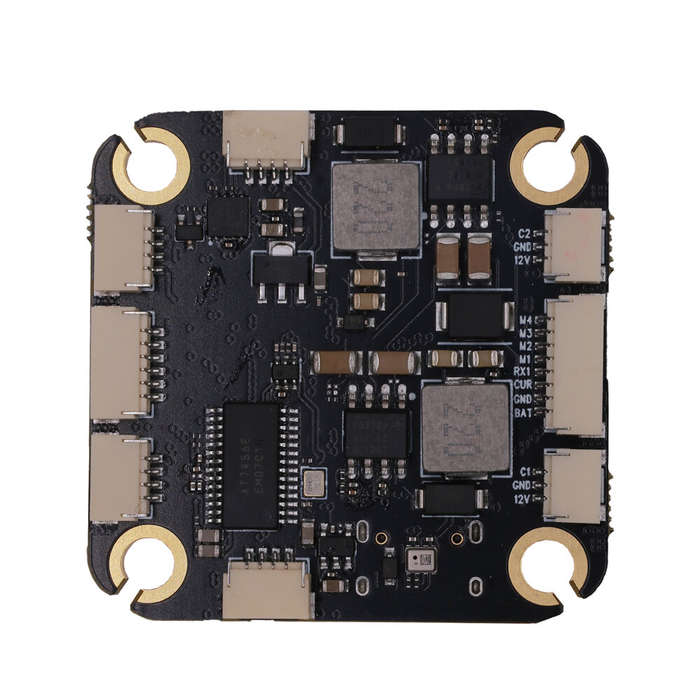

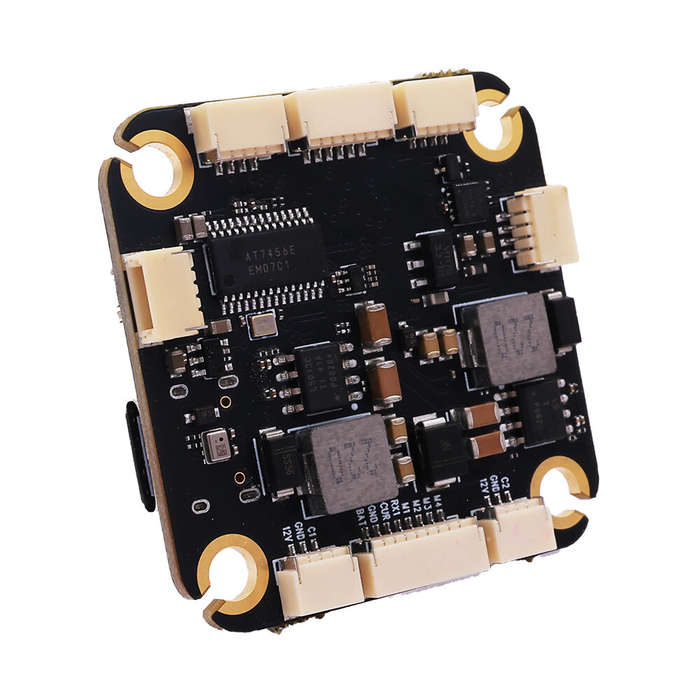

Item Name: H743 12S Flight Controller
CPU: STM32H743VIT6 (Main Control Frequency: 480Hz)
IMU: ICM42688 Dual Gyroscope
OSD: AT7456E
Input Voltage: 6-12S
Barometer: SPA06-003
External Storage: MicroSD Card
BEC: 5V/3.5A
BEC:12V/3A
LED: Support External Adjustable LED
Firmware Version: HAKRC H743
Receiver: Frsky / Futba / Flysky / TBS CRSF / DSMX: DSM2 Receiver
Serial Ports: 8
Product Size: 40*40mm
Product Weight: 11.3g
Feature: 1. The PCB is made of high-end 6-layer 1oZ thickened copper skin, which has strong anti-interference ability.
2. Adopt double gyroscope design to reduce the error of one gyroscope.
3. Adopt industrial-grade LDO, high temperature resistance.
4. Comes with DJI sky straight socket, easy to install, solder-free.
5. Reserve the 5V power supply of the external LED strip light, and the remote co
