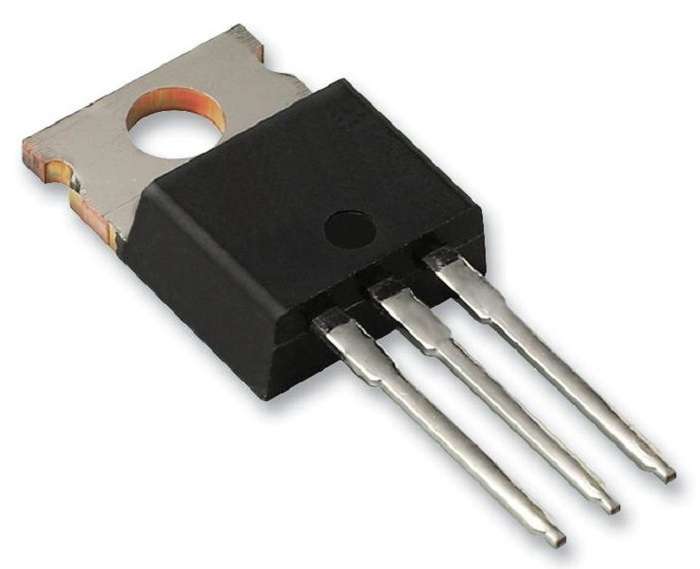

Stmicroelectronics (LD1084V) LDO Voltage Regulator, Adjustable, 30V in

LDO Voltage Regulator, Adjustable, 30V in, 1.3V drop, 5A out, TO-220-3Product OverviewThe LD1084V is a low-drop Positive Voltage Regulator providing up to 5A ofoutput current. Dropout is guaranteed at a maximum of 1.5V at the maximum outputcurrent, decreasing at lower loads. The regular is pin-to-pin compatible withthe older 3-terminal adjustable regulator, but it has better performances interms of drop and output tolerance. Unlike PNP regulator, where a part of theoutput current is wasted as quiescent current, the regulator quiescent currentflows into the load, so to increase the efficiency. A minimum capacitor of 10µFis needed for stability.Internal power and thermal limitPinout compatibility with standard adjustable VREGApplicationsPower ManagementProduct InformationOutput Type: AdjustableInput Voltage Min: 4.25VInput Voltage Max: 30VOutput Current: 5ADropout Voltage Vdo: 1.3VLDO Regulator Case Style: TO-220No. of Pins: 3PinsOperating Temperature Min: -40°COperating Temperature Max: 125°C
