Stmicroelectronics (AEK-Con-Sensor1) Connector Board

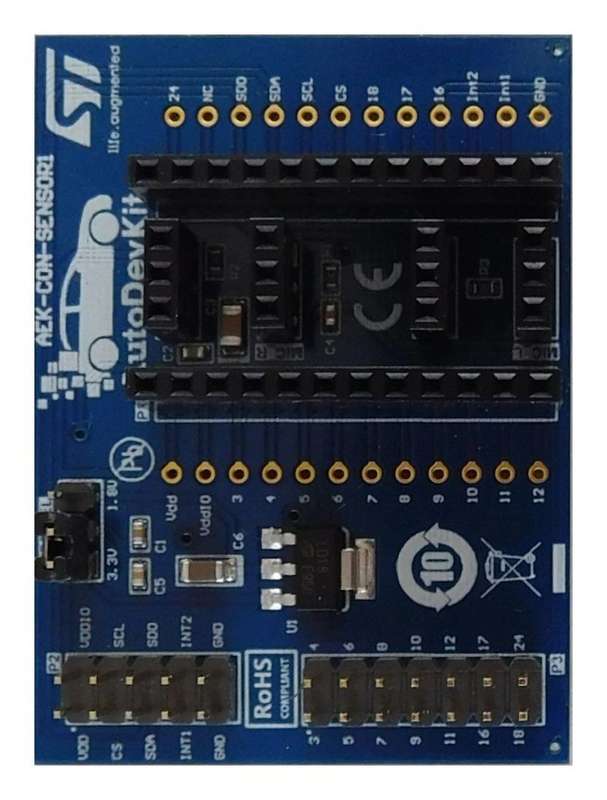

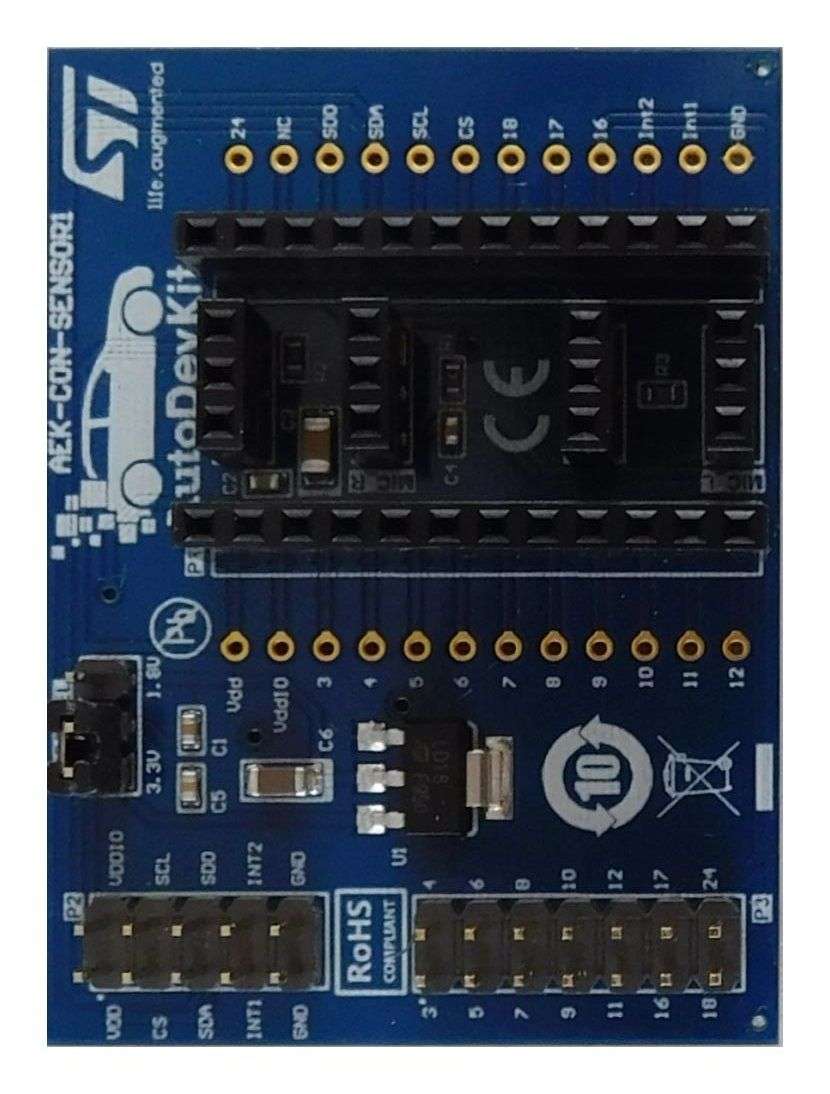

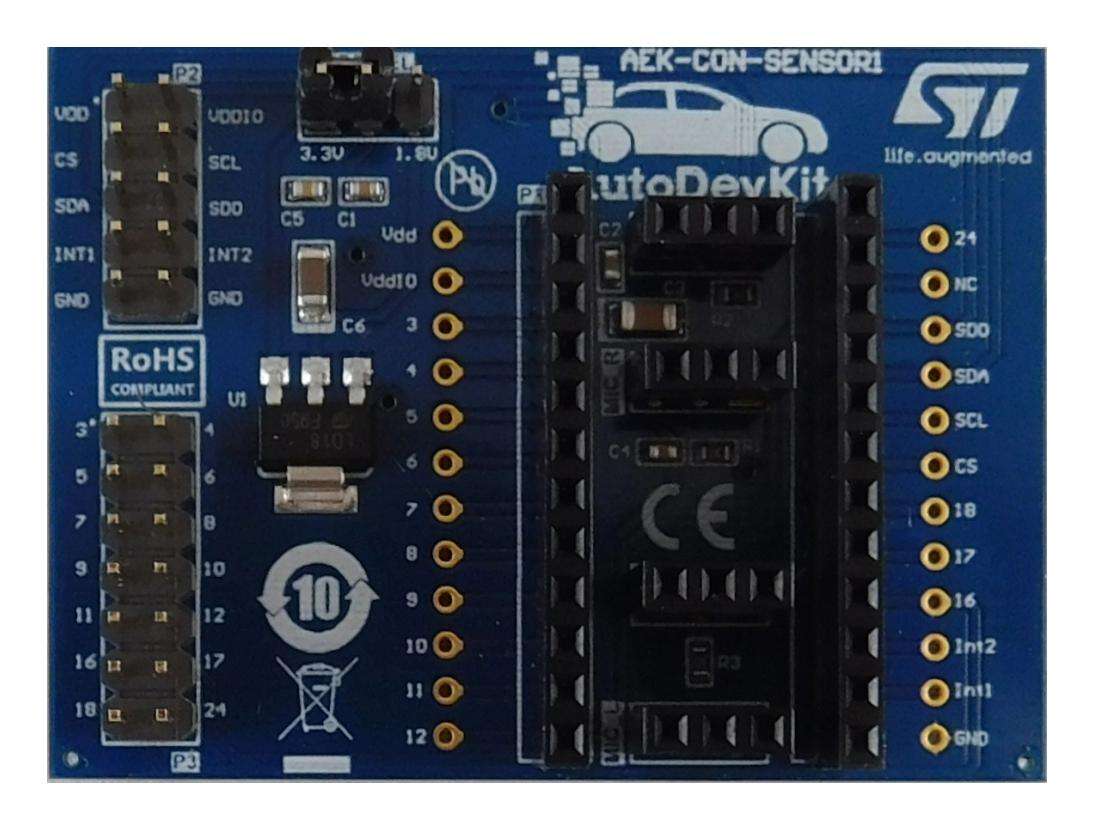

Connector Board, SPC5 MCU Discovery Boards & MEMS Sensor BoardsProduct OverviewAEK-Con-Sensor1 is a connector board designed to interface MEMS sensor boards inDIL 24 socket to an SPC5 MCU discovery board like the AEK-Con-Sensor1 hosting aSPC58EC80E5 Chorus family automotive MCU with 4MB flash. The connector boardincludes a 1.8kV LDO voltage regulator to supply MEMS boards. Two male stripconnectors allow connecting the AEKAEK-Con-Sensor1: the main one (5x2) is usedfor power supply, SPI interface and signal interrupt, whereas the second one(7x2) is used for optional GPIO connections depending on the plugged MEMS sensorboard. For the MEMS sensor board connection, three female strip connectors areused: the main one (12x2) hosts the MEMS sensors in DIL 24 socket, whereas theother two (3x2) host digital microphones. Typical applications includein-vehicle infotainment/electro-mobility/telematics box.Connects the AEK-Con-Sensor1 MCU discovery board to the MEMS sensor boards inDIL 24 socketSupports several sensors: digital microphones, 2D and 3D accelerometers,inclinometersHosts a 1.8V LDO voltage regulator for MEMS board supplyCompact size: 56mm x 41mmIncluded in the AutoDevKit initiativeProduct InformationAccessory Type: Connector BoardFor Use With: STMicroelectronics SPC5 MCU Discovery Boards & MEMS Sensor BoardsProduct Range: -
