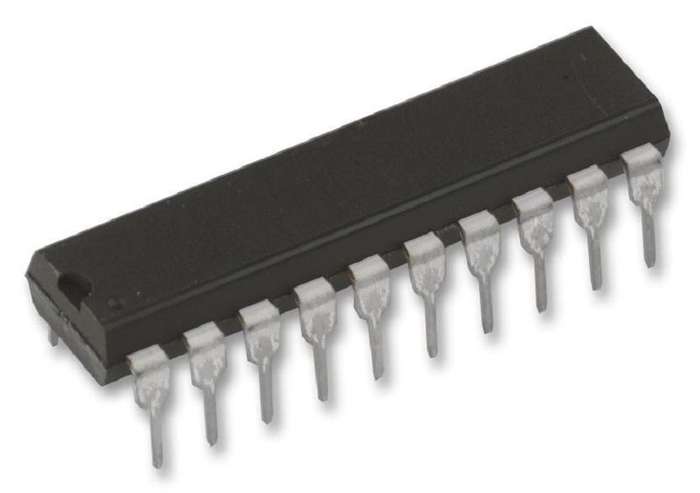

Stmicroelectronics (ATTINY26-16PU) 8 Bit MCU, Low Power High Performance

8 Bit MCU, Low Power High Performance, AVR ATtiny Family ATtiny26 SeriesMicrocontrollers, 8 Bit MCU, Low Power High PerformanceProduct OverviewThe ATTINY26-16PU is a low-power 8-bit CMOS Microcontroller based on the AVRenhanced RISC architecture. By executing powerful instructions in a single clockcycle, the ATtiny25 achieves throughputs approaching 1MIPS per MHz allowing thesystem designer to optimize power consumption versus processing speed. The AVRcore combines a rich instruction set with 32 general purpose working registers.All 32 registers are directly connected to the arithmetic logic unit (ALU),allowing two independent registers to be accessed in one single instructionexecuted in one clock cycle. The resulting architecture is more code efficientwhile achieving throughputs up to ten times faster than conventional CISCmicrocontrollers. The ATtiny25 provides 2kB of In-system programmable flash,128byte EEPROM and 128byte SRAM. The device achieves a throughput of 16MIPS at16MHz.Advanced RISC architecture118 Powerful instructions most single clock cycle execution32 x 8 General purpose working registersFully static operation8-bit Timer/counter with separate prescaler8-bit high-speed Timer with separate prescalerUSI-universal serial interface with start condition detectorOn-chip analog comparatorProgrammable watchdog timer with separate on-chip oscillatorExternal interruptPin change interrupt on 11 pinsLow power idle, noise reduction and power-down modesPower-on reset and programmable brown-out detectionExternal and internal interrupt sourcesIn-system programmable via SPI portInternal calibrated RC oscillator16 Programmable I/O linesApplicationsIndustrialProduct InformationProduct Range: AVR ATtiny Family ATtiny26 Series MicrocontrollersCPU Speed: 16MHzProgram Memory Size: 2KBOperating Frequency Max: 16MHzRAM Memory Size: 128ByteNo. of Pins: 20PinsMCU Case Style: DIPIC Case / Package: DIPNo. of I/O's: 16I/O'sEmbedded Interface Type: I2C, SPIInterfaces: I2C, SPISupply Voltage Min: 4.5VSupply Voltage Max: 5.5VMCU Family: AVR ATtinyMCU Series: ATtiny26Operating Temperature Min: -40°COperating Temperature Max: 85°C
