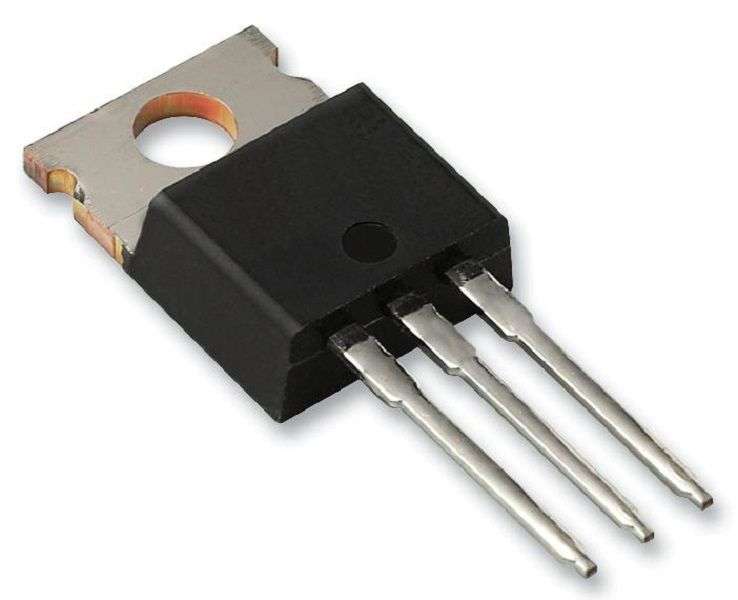

Stmicroelectronics (BTA08-600CWRG) Triac, 600 V, 8 A, TO-220AB, 1.5 V

Triac, 600 V, 8 A, TO-220AB, 1.5 V, 80 A, 35 mAProduct OverviewThe BTA08-600CWRG is a 8A insulated Snubberless TRIAC suitable for generalpurpose AC switching. The logic-level versions are designed to interfacedirectly with low power drivers such as microcontroller. It can be used as anON/OFF function in various applications. By using an internal ceramic pad, theBTA series provides voltage insulated tab (rated at 2500Vrms) complying with ULstandards.8A IT(RMS) ON-state current800V Vdrm/Vrrm Repetitive peak OFF-state voltage10mA IGT (Q1) Triggering gate currentApplicationsIndustrial, HVAC, Motor Drive & Control, Lighting, Power ManagementProduct InformationPeak Repetitive Off State Voltage: 600VOn State RMS Current: 8ATriac Case Style: TO-220ABGate Trigger Current Max (QI), Igt: 35mAGate Trigger Voltage Max: 1.5VPeak Gate Power: 1WPeak Non Repetitive Surge Current: 80AHolding Current Max: 35mANo. of Pins: 3PinsOperating Temperature Max: 125°CThyristor Mounting: Through Hole
