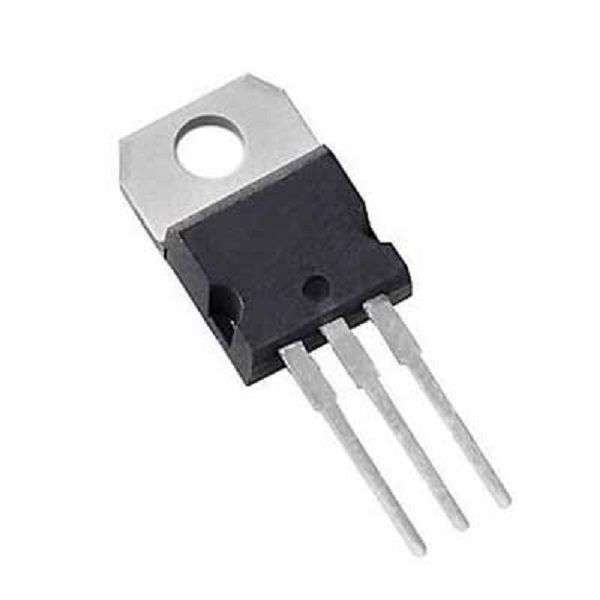

Stmicroelectronics (BTA20-700BWRG) Triac, 700 V, 20 A, TO-220AB, 1.5 V

Triac, 700 V, 20 A, TO-220AB, 1.5 V, 210 A, 75 mAProduct OverviewThe BTA20-700BWRG is a 20A insulated Snubberless TRIAC uses high performanceglass passivated chip technology. The Snubberless concept offers suppression ofthe RC network and is suitable for applications such as phase control and staticswitching on inductive or resistive load. With clip assembly technique, theTRIACs provide a superior performance in surge current handling capabilities. Byusing an internal ceramic pad, the BTA series provides voltage insulated tab(rated at 2500Vrms) complying with UL standards.20A IT(RMS) ON-state current700V Vdrm/Vrrm50mA Maximum IGT (Q1)ApplicationsIndustrial, Power ManagementProduct InformationPeak Repetitive Off State Voltage: 700VOn State RMS Current: 20ATriac Case Style: TO-220ABGate Trigger Current Max (QI), Igt: 50mAGate Trigger Voltage Max: 1.5VPeak Gate Power: 1WPeak Non Repetitive Surge Current: 210AHolding Current Max: 75mANo. of Pins: 3PinsOperating Temperature Max: 125°CMSL:
