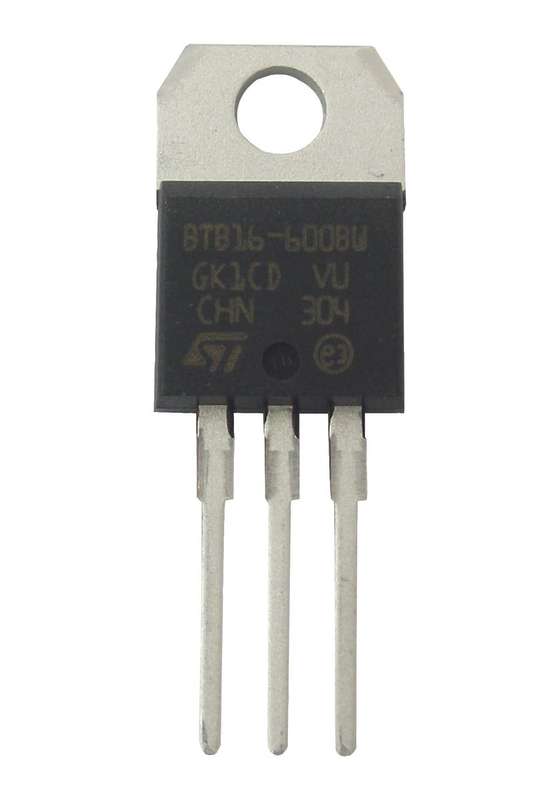

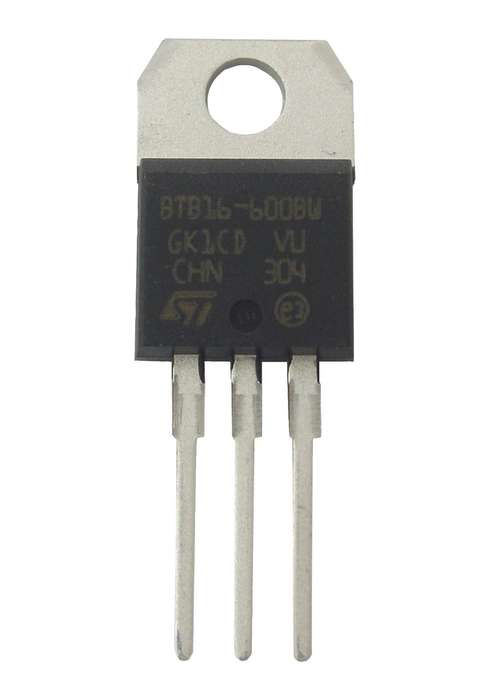

Stmicroelectronics (BTB16-600BWRG) Triac, 600 V, 16 A, TO-220AB, 1.3 V

Triac, 600 V, 16 A, TO-220AB, 1.3 V, 160 A, 50 mAProduct OverviewThe BTB16-600BWRG is a 3-pin Triac is suitable for general purpose mains powerAC switching. It features medium current, low thermal resistance with clipbonding and high commutation (4Q) or very high commutation (3Q) capability.4A Peak gate current50mA Snubberless sensitivity and typeApplicationsIndustrialProduct InformationPeak Repetitive Off State Voltage: 600VOn State RMS Current: 16ATriac Case Style: TO-220ABGate Trigger Current Max (QI), Igt: 50mAGate Trigger Voltage Max: 1.3VPeak Gate Power: 1WPeak Non Repetitive Surge Current: 160AHolding Current Max: 50mANo. of Pins: 3PinsOperating Temperature Max: 125°CThyristor Mounting: Through Hole
