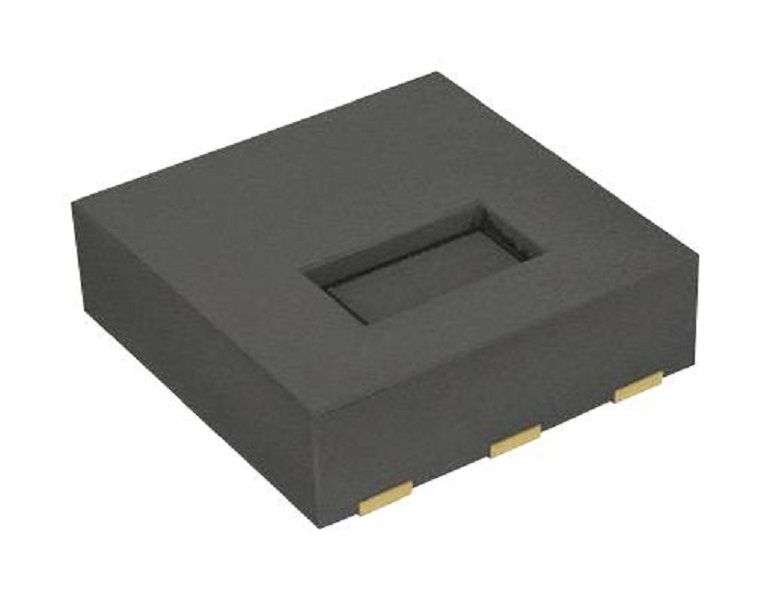

Stmicroelectronics (HTS221TR) Humidity/Temperature Sensor, 1.7V to 3.6V

Humidity/Temperature Sensor, 0% to 100% RH/-40°C to 120°C Range, I2C, SPI, 1.7Vto 3.6V, HLGA-6Product OverviewThe HTS221 is an ultra compact sensor for relative humidity and temperature. Itincludes a sensing element and a mixed signal ASIC to provide the measurementinformation through digital serial interfaces. The sensing element consists of apolymer dielectric planar capacitor structure capable of detecting relativehumidity variations and is manufactured using a dedicated ST process.0 to 100% relative humidity range1.7 to 3.6V supply voltage2µA at 1Hz ODR low power consumptionSelectable ODR from 1 to 12.5Hz0.004% RH/LSB high RH sensitivity±4.5% RH, 20 to +80% RH humidity accuracy±0.5°C, 15 to +40°C temperature accuracyEmbedded 16bit ADC16bit humidity and temperature output dataSPI and I²C interfaces, factory calibratedProduct InformationHumidity Range: 0% to 100% Relative HumidityHumidity Accuracy: ± 5% RHTemperature Accuracy: ± 1°CRH Response Time: 10sTemperature Response Time: 15sSensor Interface Type: I2C, SPISensor Output Type: DigitalSensor Case Style: HLGANo. of Pins: 6PinsOperating Temperature Min: -40°COperating Temperature Max: 120°CSupply Voltage Min: 1.7VSupply Voltage Max: 3.6VMSL: MSL 3 - 168 hours
