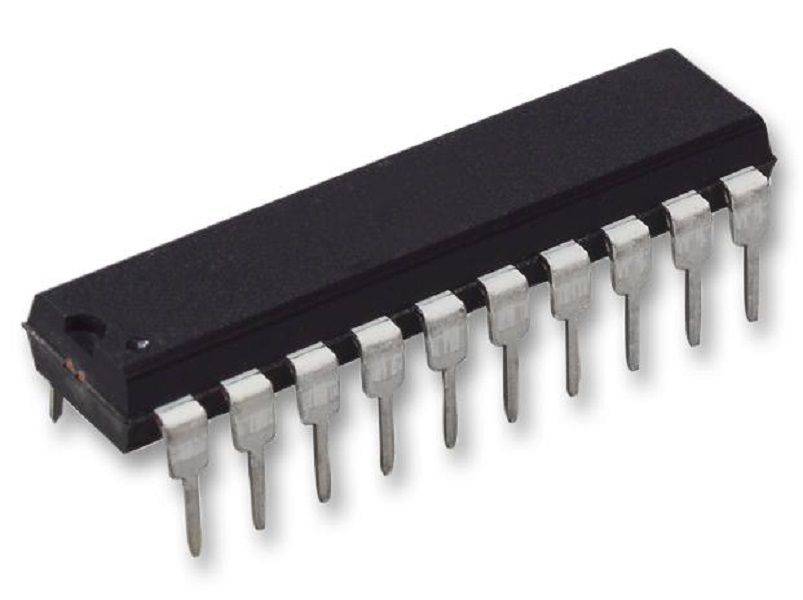

Stmicroelectronics (L6205N) Motor Driver/Controller, Full Bridge

Motor Driver/Controller, Full Bridge, 8V to 52V supply, 52V/2.8 A/4 Outputs,DIP-20Product OverviewDMOS dual full bridge driver designed for motor control applications, realizedin MultiPower-BCD technology which combines isolated DMOS power transistors withCMOS and bipolar circuits on the same chip. Typically used in bipolar steppermotors, Dual or quad DC motor.5.6A output peak current (2.8A DC)Operating frequency up to 100KHzNon dissipative overcurrent protectionParalleled operationCross conduction protectionThermal shutdownUnder voltage lockoutIntegrated fast free wheeling diodesProduct InformationMotor Type: Full BridgeNo. of Outputs: 4OutputsOutput Current: 2.8AOutput Voltage: 52VDriver Case Style: DIPNo. of Pins: 20PinsSupply Voltage Min: 8VSupply Voltage Max: 52VOperating Temperature Min: -40°COperating Temperature Max: 150°C
