Stmicroelectronics (LF50CV) Fixed LDO Voltage Regulator, 3V to 16V

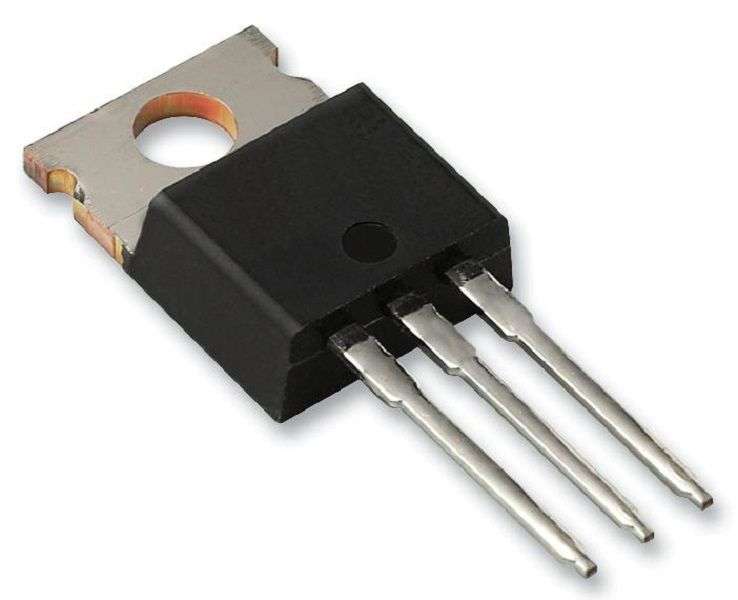

Fixed LDO Voltage Regulator, 3V to 16V, 400mV Dropout, 5Vout, 0.5Aout, TO-220-3Product OverviewThe LF50CV is a very low drop Voltage Regulator with inhibit function and lowquiescent current make it particularly suitable for low-noise and low-powerapplications. In the 5-pin configuration a shutdown logic control is available(2-pin, TTL compatible). This means that when the device is used as a localregulator, a part of the board can be put in standby and decreasing the totalpower consumption. In the 3-terminal configuration, the device has the sameelectrical performance but it is fixed in ON state. It requires a capacitor ofonly 2.2µF for stability and saving board space.Logic-controlled electronic shutdownInternal current and thermal limitSupply voltage rejection of 80dB (typical)ApplicationsPower ManagementProduct InformationOutput Type: FixedInput Voltage Min: 3VInput Voltage Max: 16VFixed Output Voltage Nom: 5VOutput Current: 500mADropout Voltage Vdo: 400mVLDO Regulator Case Style: TO-220No. of Pins: 3PinsOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: 5V 0.5A LDO Voltage Regulators
