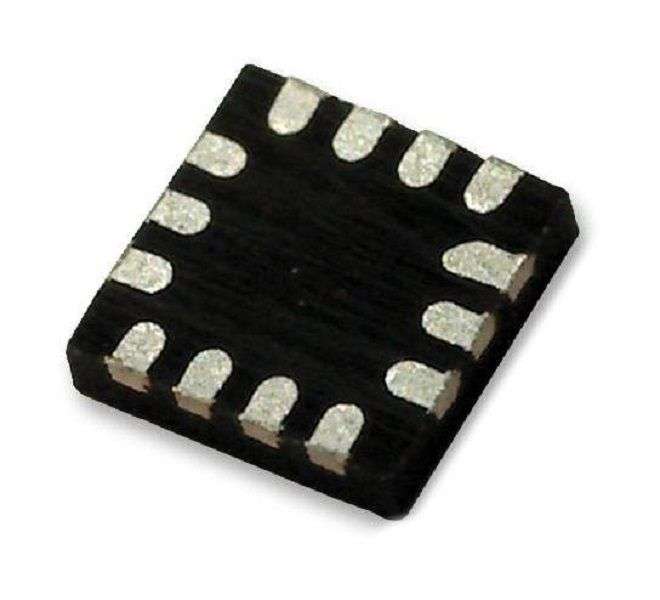

Stmicroelectronics (LSM6DSOXTR) MEMS Module, 1.71 V to 3.6 V

MEMS Module, iNEMO LSM6D Series, IMU, 1.71 V to 3.6 V, ± 16g, LGA-14Product OverviewThe LSM6DSOXTR is a system-in-package iNEMO inertial module. It features a 3Ddigital accelerometer and a 3D digital gyroscope boosting performance at 0.55mAin high-performance mode. It enables always-on low-power features for an optimalmotion experience for the consumer.Smart FIFO up to 9KBAndroid compliant±2/±4/±8/±16g full scale and ±2/±4/±8/±16g full scaleAnalog supply voltage range from1.71V to 3.6VIndependent IO supply (1.62V)Compact footprint of 2.5mm x 3mm x 0.83mmSPI / I²C & MIPI I3C serial interface with main processor data synchronizationAuxiliary SPI for OIS data output for gyroscope and accelerometerOIS configurable from Aux SPI, primary interface (SPI / I²C & MIPI I3C)Advanced pedometer, step detector and step counter, significant motiondetection, tilt detectionApplicationsMedicalProduct InformationMEMS Module Function: Tri-Axis Gyroscope, Tri-Axis AccelerometerSupply Voltage Min: 1.71VSupply Voltage Max: 3.6VSensor Case Style: LGANo. of Pins: 14PinsGyroscope Range: ± 125°/s, ± 250°/s, ± 500°/s, ± 1000°/s, ± 2000°/sAcceleration Range: ± 2g, ± 4g, ± 8g, ± 16gMSL: MSL 3 - 168 hours
