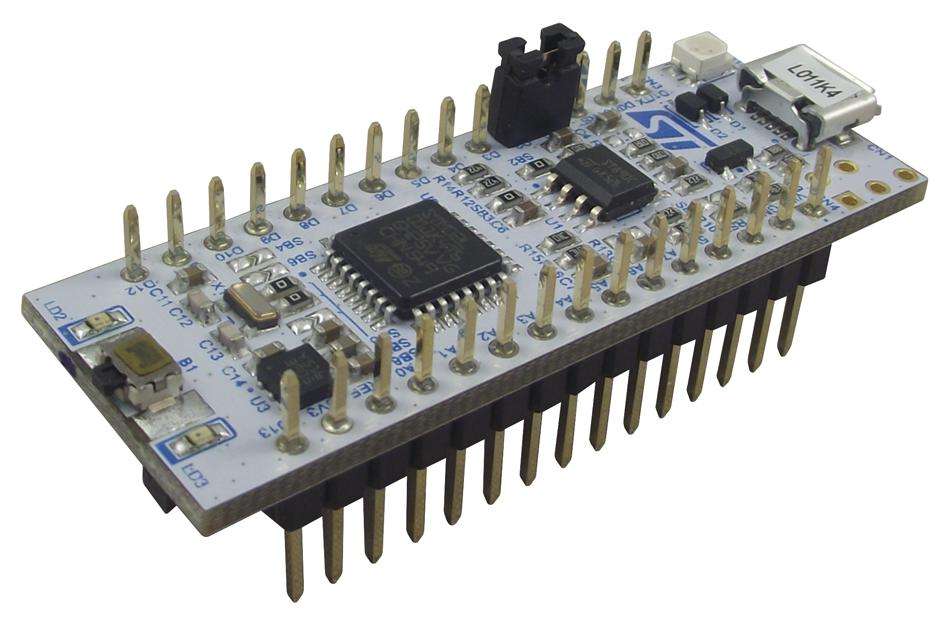

STMicroelectronics (NUCLEO-L011K4) Development Board, STM32L011K4 MC

Product Information:Silicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32L0Core Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: STM32L011K4Kit Contents: Dev Board STM32L011K4Product Range: -Product OverviewThe NUCLEO-L011K4 is an STM32 Nucleo-32 Development Board with STM32L011K4microcontroller which provides a flexible way for users to try out new conceptsand build prototypes with the STM32 microcontroller, choosing from the variouscombinations of performance, power consumption and features. The Arduino Nanoconnectivity makes it easy to expand the functionality of the STM32 Nucleo opendevelopment platform with a choice of specialized shields. The board does notrequire any separate probe as it integrates the ST-LINK/V2-1 debugger/programmerand it comes with the STM32 comprehensive software HAL library, together withvarious packaged software examples, as well as direct access to theARM®mbedon-line resources.STM32L011K4T6 microcontroller in an LQFP32 packageST-LINK/V2-1 debug/programmer tool on-boardARM® mbed EnabledUSB Functions: Debug port, Virtual COM port, Mass StorageThree LEDs: USB comms, power, user configurableReset push-buttonArduino Nano compatible expansion headersSupported by a wide range of IDEs (Integrated Development Environments)STM32 comprehensive software HAL library
