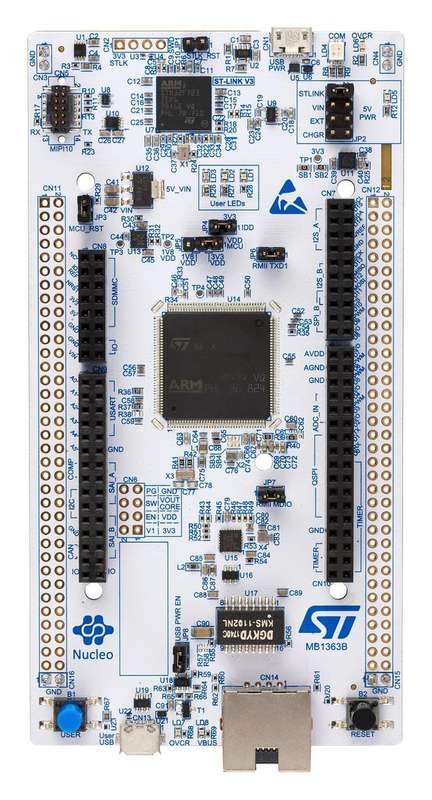

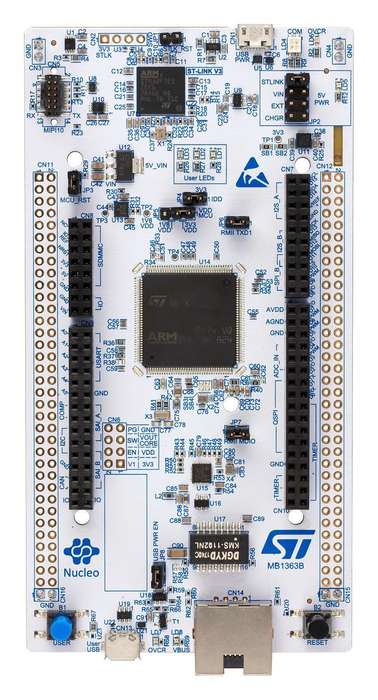

STMicroelectronics (NUCLEO-L552ZE-Q) Nucleo-144 Board, ARM Cortex M33F

Product InformationSilicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32Core Architecture: ARMCore Sub-Architecture: Cortex-M33FSilicon Core Number: STM32L552ZET6QUKit Contents: Nucleo-144 Board STM32L552ZET6QUProduct Range: -Product OverviewSTM32 Nucleo-144 board provides an affordable and flexible way for users to tryout new concepts and build prototypes by choosing from the various combinationsof performance and power consumption features provided by the STM32microcontroller. For the compatible boards, the internal or external SMPSsignificantly reduces power consumption in Run mode. The ST Zio connector whichextends the ARDUINO® Uno V3 connectivity and the ST morpho headers provide aneasy means of expanding the functionality of the Nucleo open developmentplatform with a wide choice of specialized shields. The STM32 Nucleo-144 boarddoes not require any separate probe as it integrates the ST-LINKdebugger/programmer.STM32L552ZET6QU microcontroller in LQFP144 package3 user LEDs, 2 user and reset push-buttons32.768KHz crystal oscillatorST-LINK, USB VBUS or external sources power-supply optionsOn-board ST-LINK debugger/programmer with USB re-enumeration capabilityComprehensive free software libraries and examples available with the STM32CubeMCU packageSupports IAR, Keil® and GCC-based IDEsDevice-only USB FS on USB Type-C connectorInternal SMPS to generate Vcore logic supply
