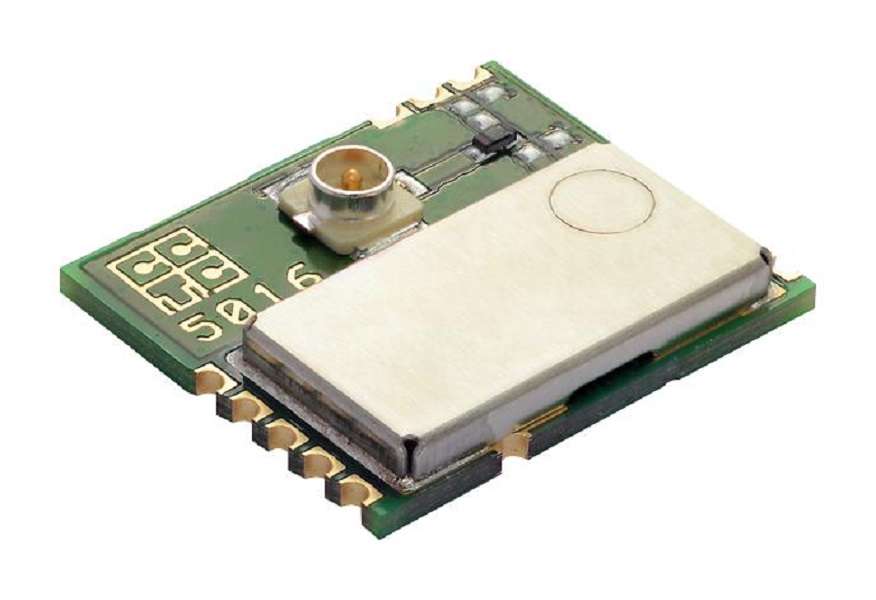

Stmicroelectronics (SPSGRFC-433) Meter Reading Module

Meter Reading Module, 2FSK, GFSK, MSK, GMSK, OOK, ASK, 500Kbps, 433MHz, -118dBm,1.8V to 3.6V, SPIProduct OverviewSub-1 GHz (433MHz) programmable transceiver module433MHz for externally tuned antennaBased on the SPIRIT1 very low power RF sub-1 GHz transceiver2-FSK, GFSK, MSK, GMSK, OOK, ASK modulation schemesAir data rate from 1 to 500KbpsOn-board U.FL connector for external antennaOperating temperature range from - 40°C to 85°CReceiver sensitivity of -118dBm, programmable RF output power up to +11.6dBmSPI host interfaceUp to 32 programmable I/O functions on 4 GPIO programmable module pinsProduct InformationRF Modulation: 2FSK, GFSK, MSK, GMSK, OOK, ASKData Rate Max: 500KbpsFrequency Max: 433MHzSensitivity dBm: -118dBmSupply Voltage Min: 1.8VSupply Voltage Max: 3.6VTransmit Power: -Module Interface: SPISupply Current: 22mARF Transceiver Applications: Automatic Meter Reading, Wireless Sensor Networks,Home and Building AutomationProduct Range: -
