STMicroelectronics (Steval-MKI153V1) Evaluation Board

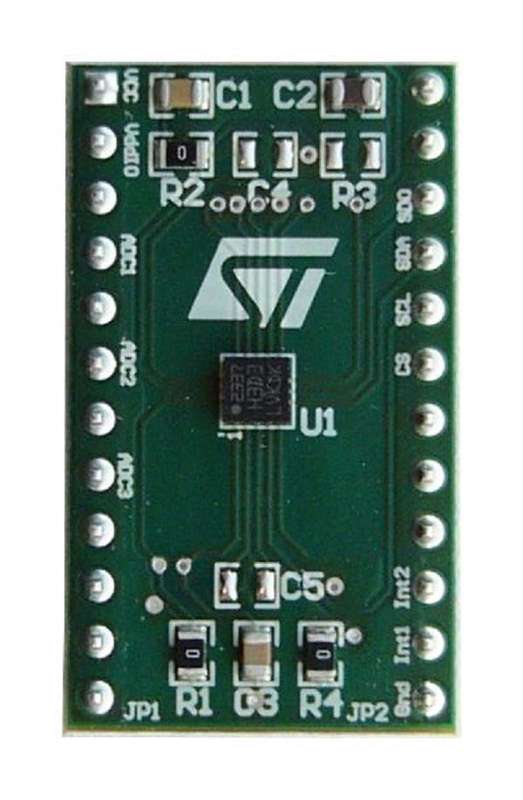

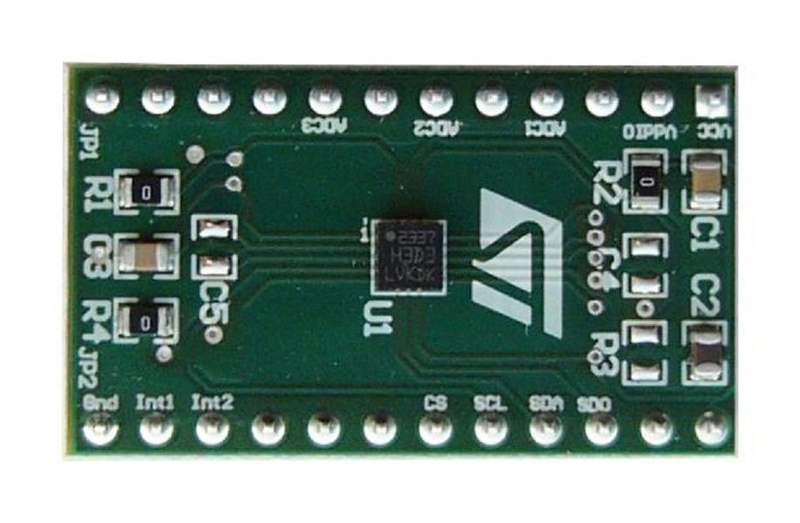

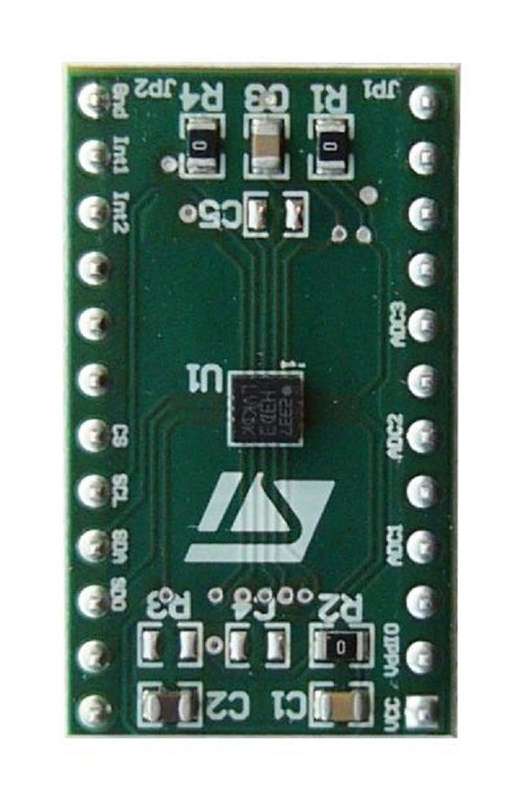

Evaluation Board, H3LIS331DL MEMS 3-Axis Accelerometer, 100g/200g/400g, DIL-24HeaderProduct OverviewSteval-MKI153V1 is a H3LIS331DL 3-axis digital accelerometer adapter board forstandard DIL 24 socket, compatible with STEVAL-MKI109V2. It is designed tofacilitate the evaluation of MEMS devices in the H3LIS331DL product family. Theboard offers an effective solution for fast system prototyping and deviceevaluation directly within the user's own application. The Steval-MKI153V1 canbe plugged into a standard DIL 24 socket. The adapter provides the completeH3LIS331DL pinout and comes ready-to-use with the required decoupling capacitorson the VDD power supply line. This adapter is supported by the StevalMKI109V2,which is a motherboard including a high-performance 32bit microcontroller whichfunctions as a bridge between the sensor and a PC, on which it is possible touse the downloadable graphical user interface (Unico GUI), or dedicated softwareroutines for customized applications.Complete H3LIS331DL pinout for a standard DIL 24 socketFully compatible with Steval-MKI109V2 motherboardProduct InformationAccessory Type: 3-Axis Digital Accelerometer Adapter BoardFor Use With: Steval-MKI109V2 MotherboardProduct Range: -
