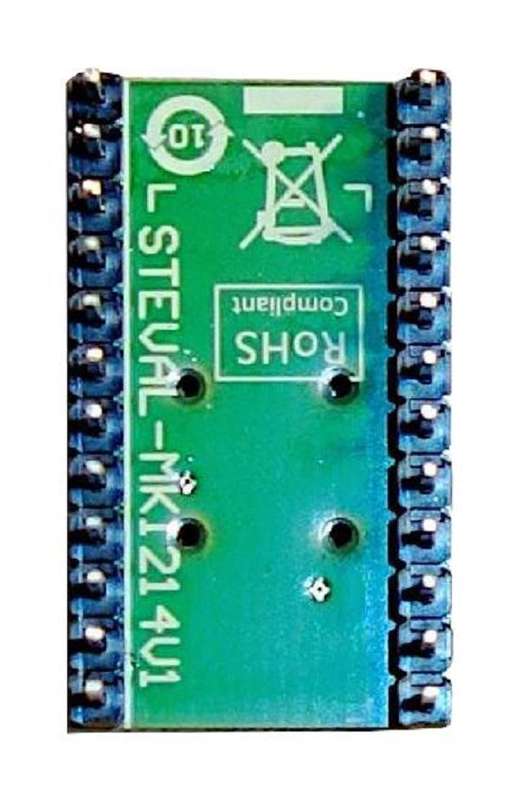

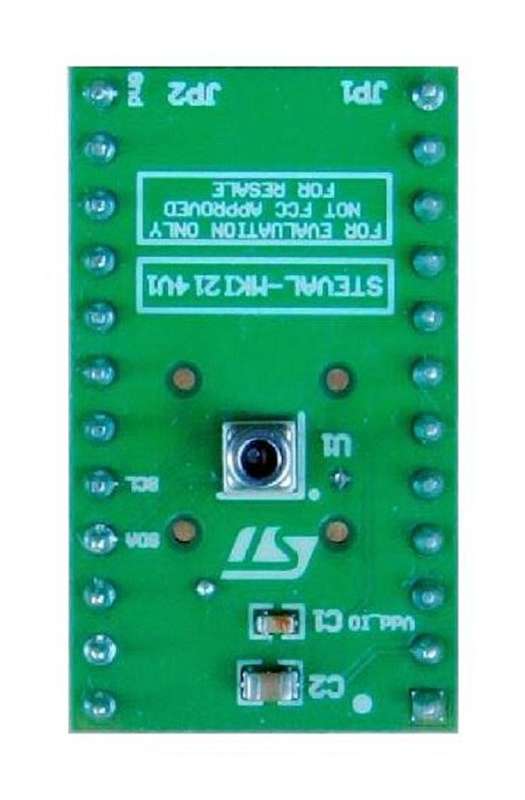

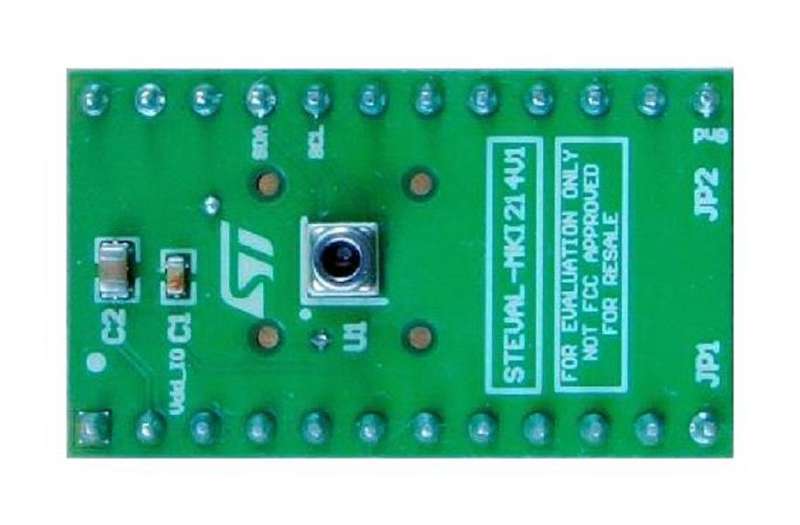

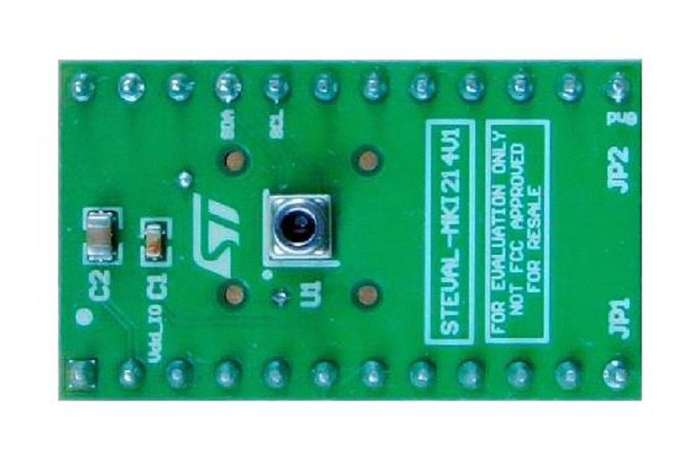

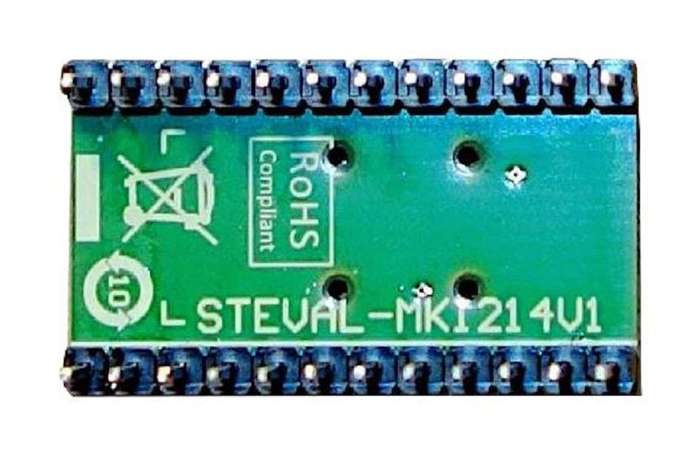

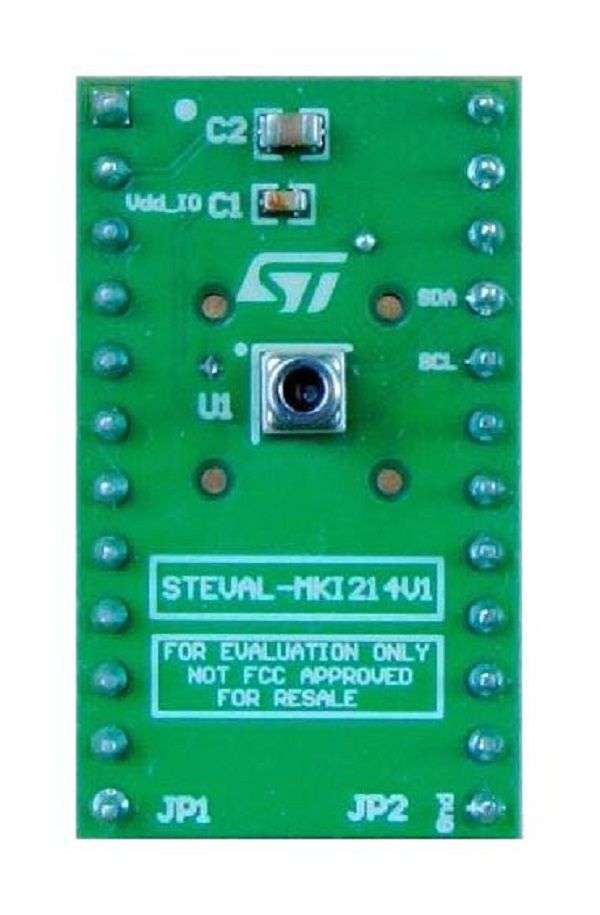

Stmicroelectronics (Steval-MKI214V1) Adapter Board

Adapter Board, Steval-MKI109V3 MotherboardProduct OverviewSteval-MKI214V1 is a LPS33K adapter board for a standard DIL24 socket. It isdesigned to facilitate the evaluation of MEMS devices in the LPS33K productfamily. The board offers an effective solution for fast system prototyping anddevice evaluation directly within the user's own application. TheSteval-MKI214V1 can be plugged into a standard DIL 24 socket. The adapterprovides the complete LPS33K pin-out and comes ready-to-use with the requireddecoupling capacitors on the VDD power supply line. This adapter is supported bythe Steval-MKI109V3 motherboard with high performance 32bit microcontrollerfunctioning as a bridge between the sensor and a PC, on which it is possible touse the downloadable graphical user interface (Unico GUI), or dedicated softwareroutines for customized applications. The adapter board can be also plugged intofollowing boards: X-Nucleo-IKS01A2, X-Nucleo-IKS01A1 and X-Nucleo-IKS01A3.Complete LPS33K pinout for a standard DIL 24 socketFully compatible with Steval-MKI109V3 motherboardsProduct InformationAccessory Type: Adapter BoardFor Use With: STMicroelectronics Steval-MKI109V3 MotherboardsProduct Range: -
