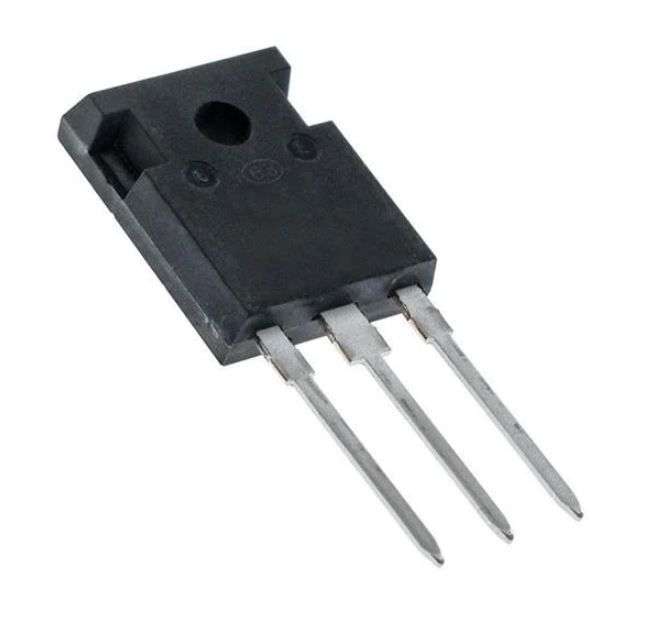

Stmicroelectronics (STGW20NC60VD) IGBT, 60 A, 2.5 V, 200 W, 600 V

IGBT, 60 A, 2.5 V, 200 W, 600 V, TO-247, 3 PinsProduct OverviewThe STGW20NC60VD is a 600V very fast IGBT utilizes the advanced Power MESHprocess resulting in an excellent trade-off between switching performance andlow on-state behavior. It is suitable for use with high frequency inverters,UPS, motor drive, SMPS and PFC in both hard switch and resonant topologies.High current capabilityHigh frequency operation up to 50KHzVery soft ultra fast recovery anti-parallel diode±20V Gate to emitter voltage0.63°C/W IGBT thermal resistance, junction to case1.5°C/W IGBT thermal resistance, junction to case50°C/W Thermal resistance, junction to ambientApplicationsPower Management, Motor Drive & Control, IndustrialProduct InformationContinuous Collector Current: 60ACollector Emitter Saturation Voltage: 2.5VPower Dissipation: 200WCollector Emitter Voltage Max: 600VTransistor Case Style: TO-247No. of Pins: 3PinsOperating Temperature Max: 150°CTransistor Mounting: Through Hole
