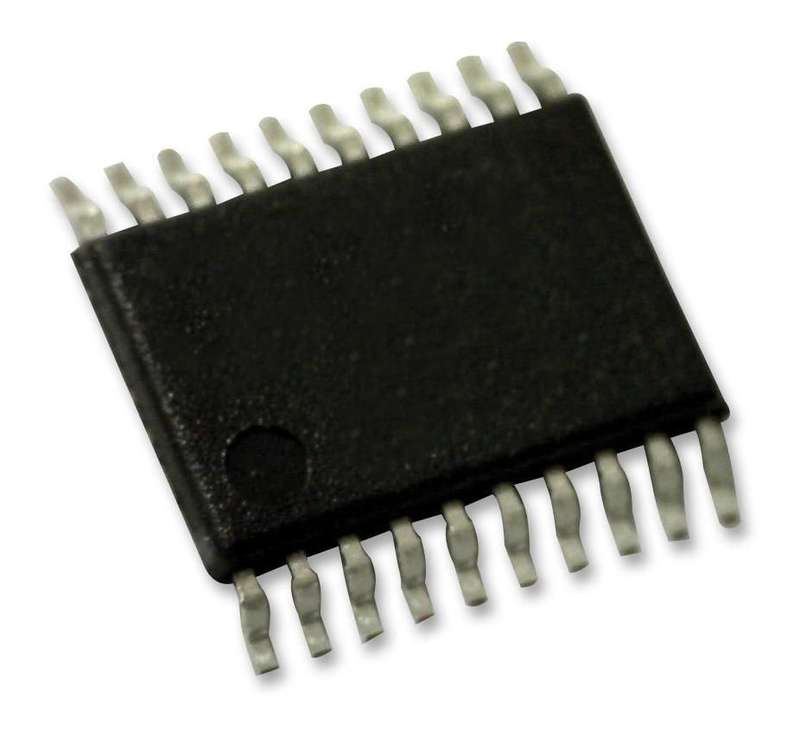

Stmicroelectronics (STM32F042F6P6) ARM MCU, USB Line, 32 bit, 48 MHz

ARM MCU, USB Line, STM32 Family STM32F0 Series Microcontrollers, ARM Cortex-M0,32 bit, 48 MHzProduct OverviewARM® based 32bit MCU with up to 32KB flash, crystal-less USB FS 2.0, CAN, 9timers, ADC.Core: Arm 32bit Cortex -M0 CPU, frequency up to 48MHzCRC calculation unit2V to 3.6V digital and I/O, VDDA = from VDD to 3.6V analogue supply (reset andpower management)Power-on/Power down reset (POR/PDR), programmable voltage detector (PVD)4 to 32MHz crystal and internal 40KHz RC oscillator, 32KHz oscillator for RTCwith calibrationAll mappable on external interrupt vectors (up to 24 fast I/Os with 5V tolerantcapability)5ch DMA controller, one 12bit, 1.0µs ADC (up to 10 channels)Calendar RTC with alarm and periodic wakeup from stop/standbyTemperature range from -40°C to 85°CHDMI CEC wakeup on header reception, Serial Wire Debug (SWD)Product InformationProduct Range: STM32 Family STM32F0 Series MicrocontrollersNo. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 48MHzRAM Memory Size: 6KBIC Case / Package: TSSOPNo. of Pins: 20PinsMCU Case Style: TSSOPNo. of I/O's: 16I/O'sInterfaces: CAN, I2C, SPI, USART, USBEmbedded Interface Type: CAN, I2C, SPI, USART, USBSupply Voltage Min: 2VSupply Voltage Max: 3.6VMCU Family: STM32MCU Series: STM32F0MSL: MSL 3 - 168 hours
