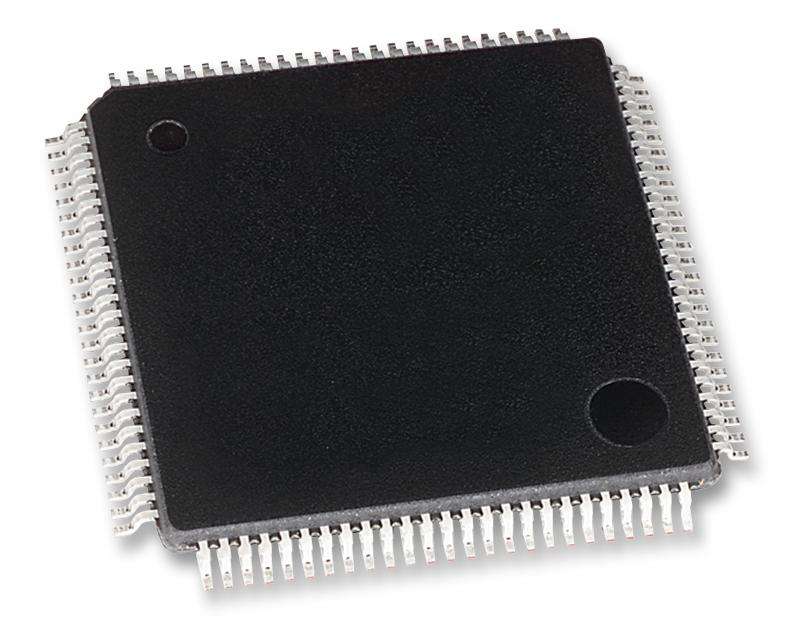

ARM MCU, Motor Control, STM32 Family STM32F1 Series Microcontrollers, ARMCortex-M3, 32 bit, 72 MHzProduct OverviewThe STM32F103VET6 is a 32-bit high-density performance line Microcontroller Unitoffers three 12-bit ADCs and 4 general-purpose 16-bit timers plus two PWMtimers, as well as standard and advanced communication interfaces up to twoI²Cs, three SPIs and two I²Ss, one SDIO, five USARTs and an USB and a CAN. Itincorporates the high-performance ARM® Cortex®-M3 32bit RISC core operating at a72MHz frequency, high-speed embedded memories and an extensive range of enhancedI/Os and peripherals connected to two APB buses. The 100-pin general-purposemicrocontroller unit (MCU) feature 512kB flash memory.POR, PDR and programmable voltage detectorLow power - Sleep, stop and standby modesVBAT supply for RTC and backup registers12-channel DMA controllerDebug mode - Serial wire debug (SWD) and JTAG interfacesCortex®-M3 embedded trace Macrocell2 x Watchdog timersSysTick timer - 24-bit down counterCRC calculation unit, 96-bit unique IDApplicationsMotor Drive & Control, Portable Devices, Medical, Consumer Electronics,Computers & Computer Peripherals, Communications & Networking, Industrial,Security, Imaging, Video & Vision, HVACProduct InformationProduct Range: STM32 Family STM32F1 Series MicrocontrollersDevice Core: ARM Cortex-M3No. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 72MHzCPU Speed: 72MHzProgram Memory Size: 512KBRAM Memory Size: 64KBIC Case / Package: LQFPNo. of Pins: 100PinsMCU Case Style: LQFPNo. of I/O's: 80I/O'sInterfaces: CAN, I2C, SPI, USART, USBEmbedded Interface Type: CAN, I2C, SPI, USART, USBSupply Voltage Min: 2VSupply Voltage Max: 3.6VMCU Family: STM32MCU Series: STM32F1Operating Temperature Min: -40°COperating Temperature Max: 85°CIC Mounting: Surface MountMSL: MSL 3 - 168 hours
