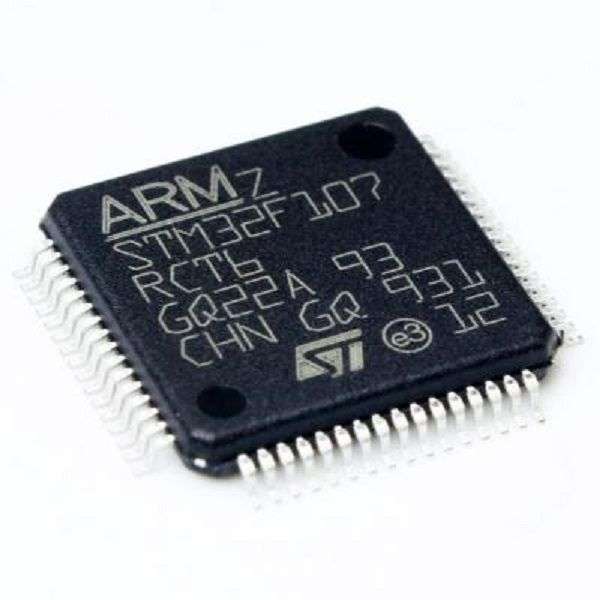

Stmicroelectronics (STM32F107RCT6) ARM MCU, Ethernet MAC, 32 bit, 72 MHz

ARM MCU, Ethernet MAC, STM32 Family STM32F1 Series Microcontrollers, ARMCortex-M3, 32 bit, 72 MHzProduct OverviewThe STM32F107RCT6 is a connectivity line 32bit Microcontroller Unit offers two12bit ADCs, four general-purpose 16bit timers plus a PWM timer and as well asstandard and advanced communication interfaces up to two I²Cs, three SPIs andtwo I2Ss, five USARTs, an USB OTG FS and two CANs. It incorporates thehigh-performance ARM® Cortex®-M3 32bit RISC core operating at a 72MHz frequency,high-speed embedded memories and an extensive range of enhanced I/Os andperipherals connected to two APB buses.POR, PDR and programmable voltage detectorLow power - Sleep, stop and standby modes, VBAT supply for RTC and backupregistersClock, reset and supply management12-channel DMA controllerDebug mode - Serial wire debug (SWD) and JTAG interfacesCortex-M3 embedded trace Macrocell2 x Watchdog timersSysTick timer - 24-bit down counterCRC calculation unit, 96-bit unique IDApplicationsMotor Drive & Control, Portable Devices, Medical, Consumer Electronics,Computers & Computer Peripherals, Communications & Networking, Industrial,Security, Imaging, Video & Vision, HVACProduct InformationProduct Range: STM32 Family STM32F1 Series MicrocontrollersDevice Core: ARM Cortex-M3No. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 72MHzCPU Speed: 72MHzProgram Memory Size: 256KBRAM Memory Size: 64KBIC Case / Package: LQFPNo. of Pins: 64PinsMCU Case Style: LQFPNo. of I/O's: 51I/O'sInterfaces: CAN, ENET, I2C, SPI, UART, USBEmbedded Interface Type: CAN, ENET, I2C, SPI, UART, USBSupply Voltage Min: 2VSupply Voltage Max: 3.6VMCU Family: STM32MCU Series: STM32F1Operating Temperature Min: -40°COperating Temperature Max: 85°CIC Mounting: Surface MountMSL: MSL 3 - 168 hours
