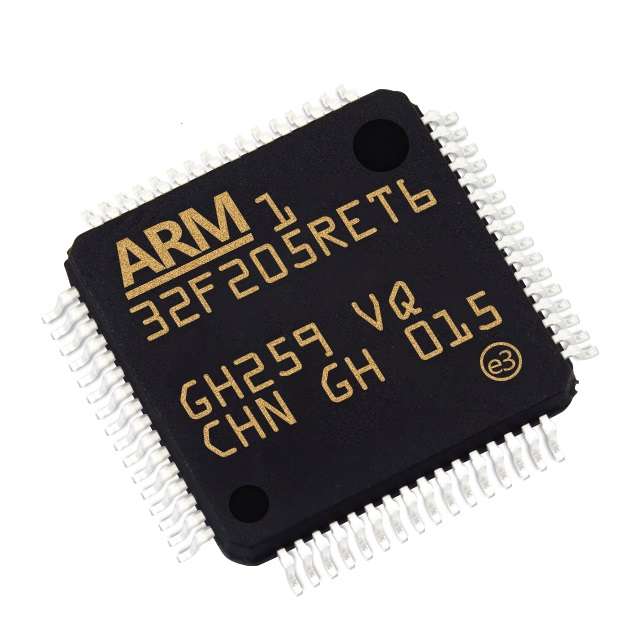

ARM MCU, STM32 Family STM32F2 Series Microcontrollers, ARM Cortex-M3, 32 bit,120 MHz, 512 KBProduct OverviewThe STM32F205RET6 is a 32-bit ARM-based Microcontroller Unit features anadaptive real-time memory accelerator which allows to achieve a performanceequivalent to 0 wait state program execution from flash memory at a CPUfrequency up to 120MHz. It is based on the high-performance ARM® Cortex®-M332-bit RISC core operating at a frequency of 120MHz. This incorporateshigh-speed embedded memories up to 4kB of backup SRAM and an extensive range ofenhanced I/Os and peripherals connected to two APB buses, three AHB buses and a32-bit multi-AHB bus matrix.Clock, reset and supply management - POR, PDR, PVD and BORLow-power modes - Sleep, stop and standby modesVBAT supply for RTC, 20 x 32-bit backup registers and optional 4kB backup SRAMGeneral-purpose DMA - 16-stream controller with centralized FIFOs and burstsupportDebug mode - Serial wire debug (SWD), JTAG and Cortex-M3 embedded traceMacrocell8 to 14-bit parallel camera interfaceCRC calculation unit96-bit Unique IDApplicationsMotor Drive & Control, Medical, Computers & Computer Peripherals, ConsumerElectronics, Communications & Networking, Industrial, Security, Imaging, Video &Vision, HVACProduct InformationProduct Range: STM32 Family STM32F2 Series MicrocontrollersDevice Core: ARM Cortex-M3No. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 120MHzCPU Speed: 120MHzProgram Memory Size: 512KBRAM Memory Size: 132KBIC Case / Package: LQFPNo. of Pins: 64PinsMCU Case Style: LQFPNo. of I/O's: 51I/O'sInterfaces: CAN, I2C, SPI, UART, USART, USBEmbedded Interface Type: CAN, I2C, SPI, UART, USART, USBSupply Voltage Min: 1.8VSupply Voltage Max: 3.6VMCU Family: STM32MCU Series: STM32F2Operating Temperature Min: -40°COperating Temperature Max: 85°CMSL: MSL 3 - 168 hours
