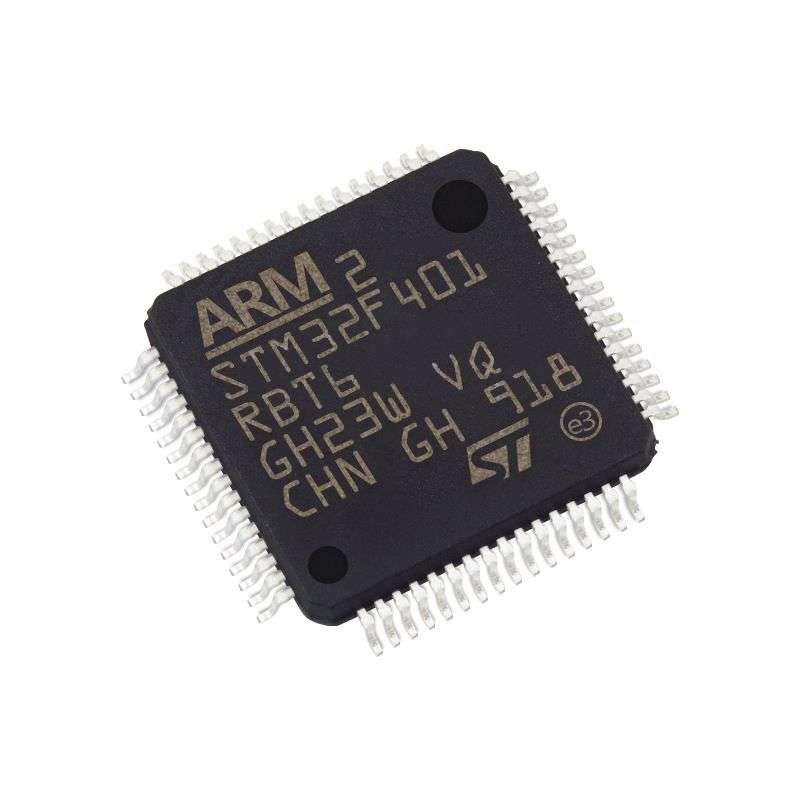

ARM MCU, Dynamic Efficiency Line, STM32 Family STM32F4 Series Microcontrollers,ARM Cortex-M4Product OverviewThe STM32F401RBT6 is a high performance access line, ARM Cortex-M4 32bitmicrocontroller in 64 pin LQFP package. This microcontroller incorporates 32bitRISC core operating at a frequency of up to 84MHz. The Cortex-M4 core with FPUcore features floating point unit (FPU) single precision which supports all ARMsingle precision data processing instructions and data types. It also implementsa full set of DSP instructions and memory protection unit (MPU) which enhancesapplication security. The STM32F401RBT6 incorporate high speed embeddedmemories, extensive range of enhanced I/Os and peripherals connected to two APBbuses, two AHB buses and a 32bit multi AHB bus matrix. This microcontrollerfeatures 12bit ADC, low power RTC, general purpose 16bit timers including onePWM timer for motor control, general purpose 32bit timers, standard and advancedcommunication interfaces. A comprehensive set of power saving mode allows designof low power applications.128Kbytes of flash memory64Kbytes of SRAMOne 12bit, 2.4MSPS, 16 channel A/D converterOperating voltage range from 1.7V to 3.6V16 stream DMA controllers with FIFOs and burst supportSeven general purpose and one advanced control timer50 I/O ports with interrupt capability3/2 (full duplex) SPI/ I2S, three I2C, three USART, one USB and one SDIOinterfacesSerial wire debug (SWD) and JTAG interfacesAmbient temperatures range from -40°C to 85°CApplicationsEmbedded Design & Development, Motor Drive & Control, Industrial, ConsumerElectronics, Portable Devices, Imaging, Video & Vision, Audio, Communications &Networking, MedicalProduct InformationProduct Range: STM32 Family STM32F4 Series MicrocontrollersDevice Core: ARM Cortex-M4No. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 84MHzCPU Speed: 84MHzProgram Memory Size: 128KBRAM Memory Size: 64KBIC Case / Package: LQFPNo. of Pins: 64PinsMCU Case Style: LQFPNo. of I/O's: 50I/O'sInterfaces: I2C, I2S, SPI, UART, USBEmbedded Interface Type: I2C, I2S, SPI, UART, USBSupply Voltage Min: 1.7VSupply Voltage Max: 3.6VMCU Family: STM32MCU Series: STM32F4MSL: MSL 3 - 168 hours
