STMicroelectronics (STM32F412G-DISCO) Development Kit, STM32F412ZG MCU

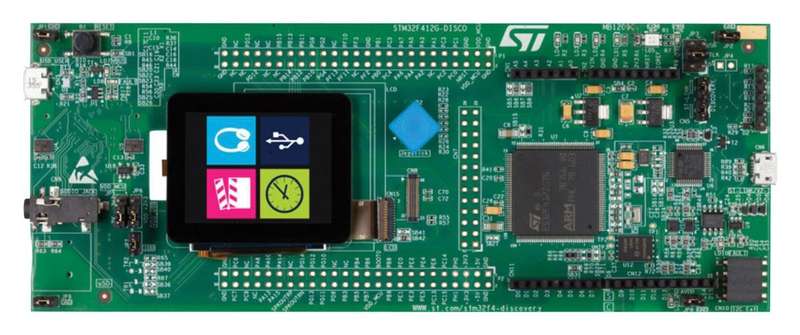

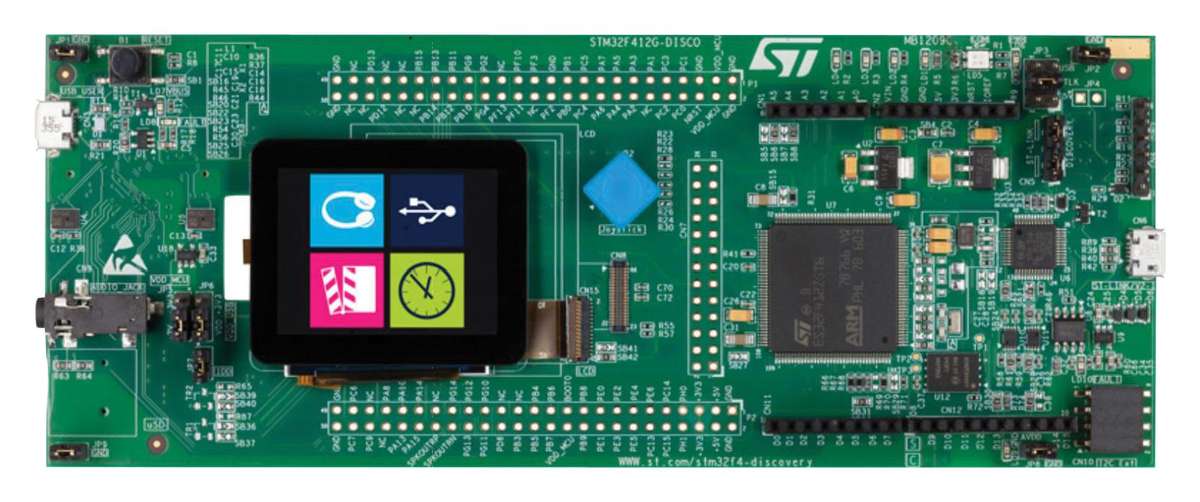

Product InformationSilicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32F4Core Architecture: ARMCore Sub-Architecture: Cortex-M4Silicon Core Number: STM32F412ZGKit Contents: Discovery Dev Board STM32F412ZGProduct Range: -Product OverviewThe STM32F412G-DISCO is a STM32F412 discovery kit. The STM32F412 discovery kit(32F412GDISCOVERY) allows users to easily develop applications with theSTM32F412 high performance MCUs with ARM cortex-M4 core. The discovery kitcombines STM32F412 features with 1.54inch 240 x 240 pixel TFT colour LCD withtouchscreen, LEDs, wakeup button, I2S audio codec, MEMS microphones, USB OTG FS,quad-SPI NOR flash memory, microSD card connector. An embedded ST-LINK/V2-1debugger/programmer is included, specialized add-on boards can be connectedthanks to the Arduino Uno or to the expansion connectors.STM32F412ZGT6 microcontroller featuring 1MB flash memory and 256KB RAMOn-board ST-LINK/V2-1 SWD debugger supporting USB re-enumeration capability1.54inch 240 x 240 pixel TFT colour LCD with parallel interface and capacitivetouchscreenI2S audio CODEC with stereo headset jack including analogue microphone input andloudspeaker outputStereo digital MEMS microphonesMicroSD card connector extension, I2C extension connector, 128Mbit quad-SPI norflashReset button and Joystick, four colour user LEDs, USB OTG FS with micro-ABconnectorST-LINK/V2-1 USB connector, user USB FS connector, VIN or 5V from Arduinoconnectors power optionsTwo power supplies for MCU 2V and 3.3VCompatible with Arduino Uno rev3 connectors, extension connector for directaccess to STM32F412ZGT6
