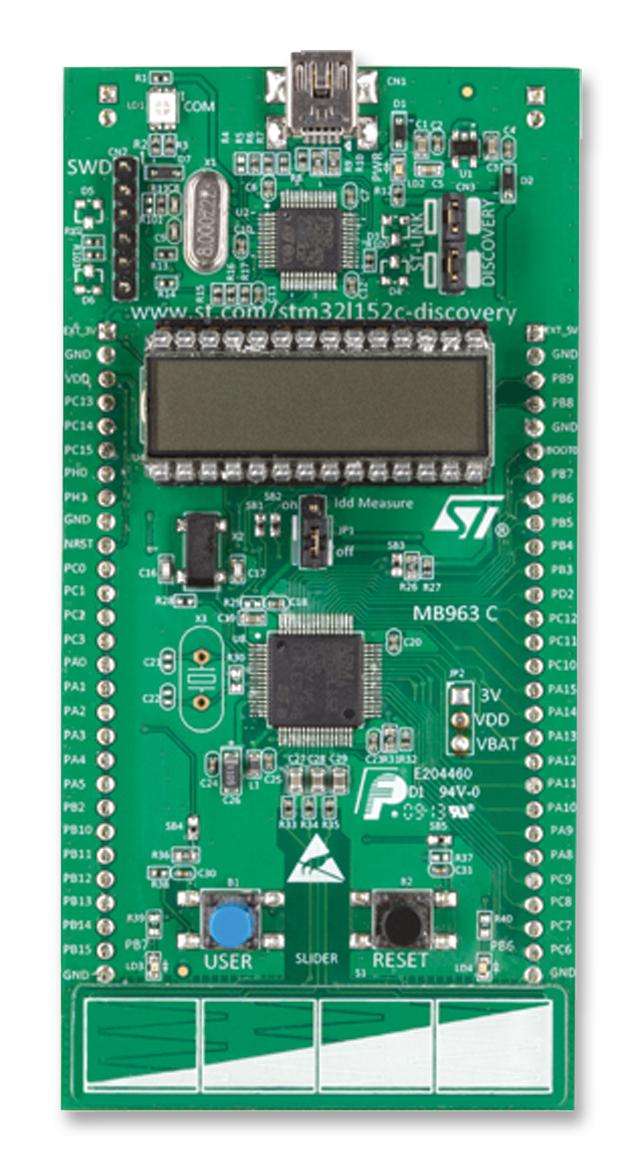

STMicroelectronics (STM32L152C-DISCO) Evaluation Board, STM32L152RC MCU

Product InformationSilicon Manufacturer: STMicroelectronicsNo. of Bits: 32bitSilicon Family Name: STM32L1Core Architecture: ARMCore Sub-Architecture: Cortex-M3Silicon Core Number: STM32L152RCKit Contents: Dev Board STM32L152RCProduct Range:Product OverviewSTM32L152C-DISCO kit help user to discover the STM32L ultra low power featuresand to develop and share user applications. They are based on an STM32L152RCT6which incorporates the connectivity power of the universal serial bus (USB) withthe high performance ARM Cortex-M3 32bit RISC core operating at a 32MHzfrequency, a memory protection unit (MPU), high speed embedded memories (Flashmemory up to 256Kbytes and RAM up to 32Kbytes) and an extensive range ofenhanced I/Os and peripherals connected to two APB buses. And includes anST-Link/V2 embedded debugging tool interface, an LCD (24 segments, 4 commons),LEDs, pushbuttons, a linear touch sensor or touch keys.STM32L152RCT6 microcontroller in an LQFP64 packageOn board ST-Link/V2 with selection mode switch to use the kit as a standaloneST-Link/V2Board power supply through USB bus or from an external 3.3V or 5V supply voltageLCD with 24 segments, 4 commonsOne linear touch sensor or four touch keysExtension header for LQFP64 I/Os for quick connection to prototyping board andeasy probingExternal application power supply 3V and 5VIDD current measurementFour LEDsTwo pushbuttons (user and reset)
