Stmicroelectronics (STTH812D) Fast / Ultrafast Diode, 1.2 kV, 8 A, Single

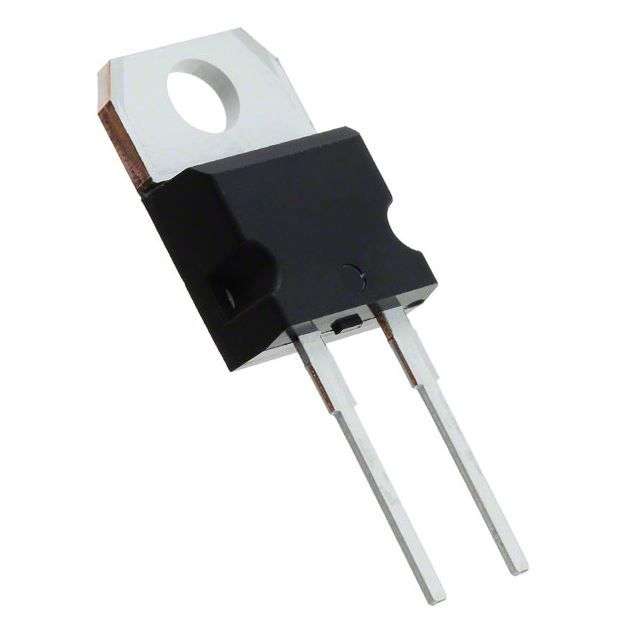

Fast / Ultrafast Diode, 1.2 kV, 8 A, Single, 1.25 V, 50 ns, 80 AProduct OverviewThe STTH812D is an Ultra-fast Recovery Diode with low leakage current, regularlyreproducible characteristics and intrinsic ruggedness. These characteristicsmake it ideal for heavy-duty applications that demand long term reliability.Such demanding applications include industrial power supplies and similarmission-critical systems that require rectification and free-heeling. It alsofits into auxiliary functions such as snubber, bootstrap and demagnetizationapplications. The improved performance in low leakage current and thereforethermal runaway guard band, is an immediate competitive advantage for thisdevice.Very low conduction and switching lossesHigh frequency and/or high pulsed current operationHigh reverse voltage capabilityApplicationsPower Management, Motor Drive & Control, IndustrialProduct Information:Repetitive Peak Reverse Voltage: 1.2kVAverage Forward Current: 8ADiode Configuration: SingleForward Voltage Max: 1.25VReverse Recovery Time: 50nsForward Surge Current: 80AOperating Temperature Max: 175°CDiode Case Style: TO-220ACNo. of Pins: 2 PinProduct Range: STTH8
