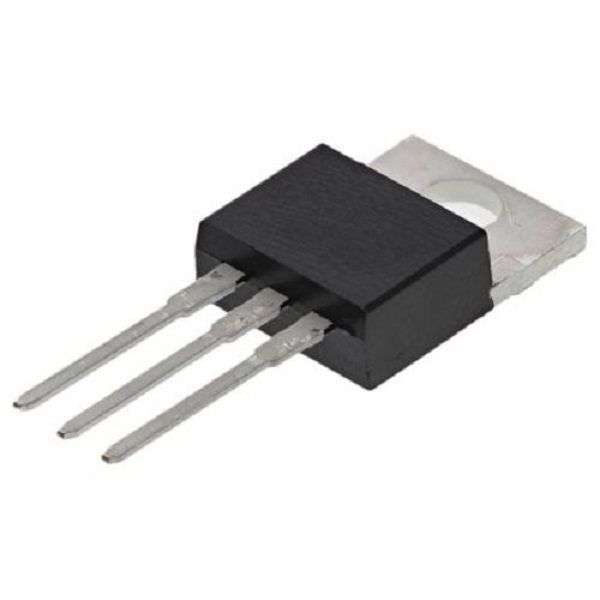

Stmicroelectronics (T3035H-6I) Triac, 600 V, 30 A, TO-220AB, 1 V

Triac, 600 V, 30 A, TO-220AB, 1 V, 270 A, 60 mAProduct OverviewThe T3035H-6I is a 30A high temperature Snubberless TRIAC specifically designedto operate at 150°C. The new TRIACs provide very high dynamic performance andenhanced performance in terms of power loss and thermal dissipation. This allowsoptimizing the heat sink size, leading to space and cost effectiveness whencompared to electro-mechanical solutions. Based on ST Snubberless technology,it offers a specified minimal commutation and high noise immunity levels validup to the maximum Tj. The device optimize safely the control of universal motorsand of inductive loads. Due to its high electrical noise immunity level and itsstrong current robustness, the device is designed for the control of ACactuators in appliances and industrial systems. By using an internal ceramicpad, the device provides voltage insulation (rated at 2500Vrms).High current TRIACHigh immunity levelLow thermal resistance with clip boundingVery high commutation (3Q) at 150°C capabilityUL certified E81734ApplicationsIndustrial, Motor Drive & Control, Power ManagementProduct InformationPeak Repetitive Off State Voltage: 600VOn State RMS Current: 30ATriac Case Style: TO-220ABGate Trigger Current Max (QI), Igt: 35mAGate Trigger Voltage Max: 1VPeak Gate Power: 1WPeak Non Repetitive Surge Current: 270AHolding Current Max: 60mANo. of Pins: 3PinsOperating Temperature Max: 150°CMSL: MSL 1 - Unlimited
