Stmicroelectronics (TDA7293V) Audio Power Amplifier, 100 W, AB, 1 Channel

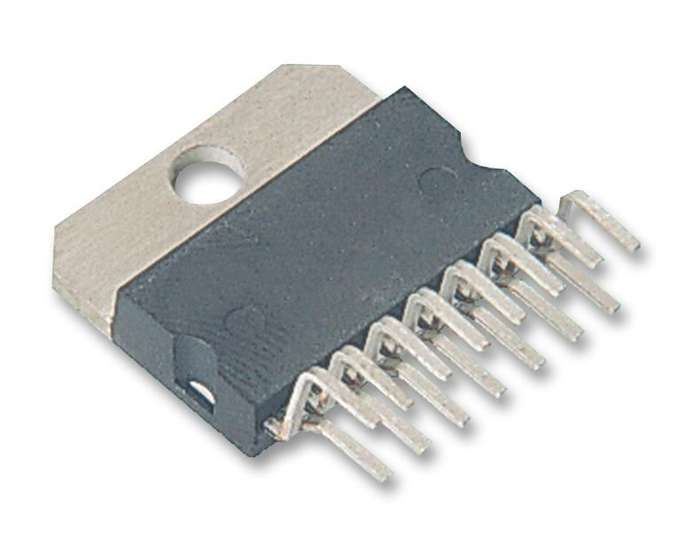

Audio Power Amplifier, 100 W, AB, 1 Channel, ± 12V to ± 50V, Multiwatt, 15 PinsProduct OverviewThe TDA7293V is a DMOS class AB audio amplifier in 15 pin Multiwatt package. Itis intended for use as audio class AB amplifier in Hi-Fi field applications suchas home stereo, self powered loudspeakers and top class TV. Due to wide voltagerange and high output current capability the TDA7293V supplies highest powerinto both 4ohm and 8ohm loads. The built-in muting function with turn on delaysimplifies remote operation by avoiding on-off switching noises. Parallel modeis possible by connecting several devices and using pin11. High output power canbe delivered to very low impedance loads by optimizing thermal dissipation ofsystem.Multipower BCD technologyVery high operating voltage range from ±12V to ±50VDMOS power stageHigh output power of 100W into 8ohm load at THD =10% and VS=±40VMuting and stand by functionsNo switch on/off noiseVery low distortion and very low noiseShort circuit protected (with no input signal applied)Operating ambient temperature range from 0°C to 70°C10V/µs slew rateApplicationsAudio, Signal Processing, Consumer Electronics, Portable DevicesProduct InformationOutput Power: 100WAmplifier Class: ABNo. of Channels: 1 ChannelSupply Voltage Range: ± 12V to ± 50VAmplifier Case Style: MultiwattNo. of Pins: 15PinsLoad Impedance: 4ohmOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: Class-AB Power AmplifierMSL: MSL 1 - Unlimited
