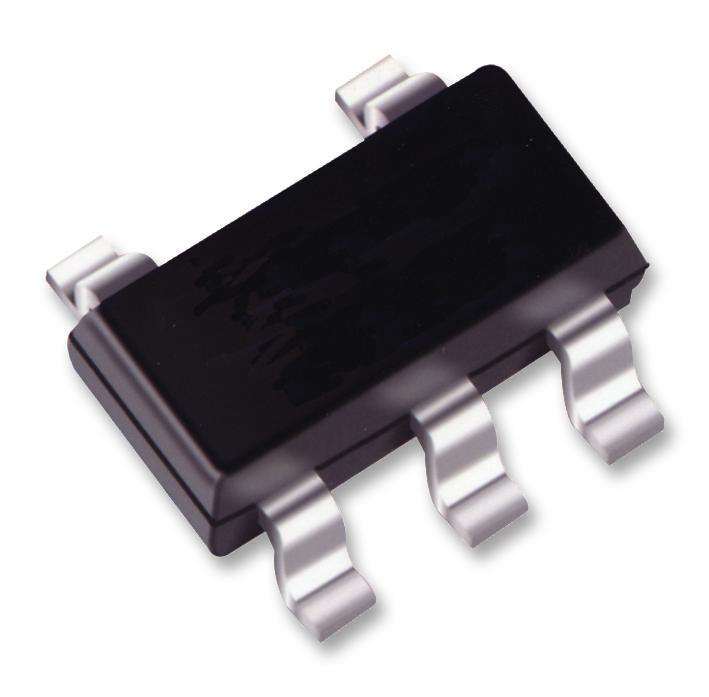

Stmicroelectronics (TS941ILT) Operational Amplifier, Single, 1 Amplifier

Operational Amplifier, Single, 1 Amplifier, 10 kHz, 0.0045 V/µs, 2.5V to 10V,SOT-23, 5 PinsProduct OverviewThe TS941ILT is an ultra-micropower single Operational Amplifier with CMOSinputs and rail-to-rail output. The TS94x series op-amp characterized for 2.5 to10V operation over -40 to +85°C temperature range. They exhibit excellentconsumption -1.2µA, while featuring 10kHz gain bandwidth product, 1.5mA outputcapability and output rail-to-rail operation -2.85V typical at 3V with RL=10k.The TS94x op-amp is ideal for battery-powered systems, where very low supplycurrent and output rail-to-rail are required. Their very low -1pA typical inputbias current and constant supply current over supply voltage enhance TS94x'sperformance near the end of the battery charge or battery life.Latch-up immunity (class A)2kV ESD Protection1pA Ultralow input bias current1.2µA Micropower consumption7µV/°C Input offset voltage driftApplicationsPortable Devices, Communications & Networking, Clock & Timing, Sensing &Instrumentation, Test & MeasurementProduct InformationNo. of Amplifiers: 1 AmplifierBandwidth: 10kHzSlew Rate: 0.0045V/µsSupply Voltage Range: 2.5V to 10VAmplifier Case Style: SOT-23No. of Pins: 5PinsOperating Temperature Min: -40°COperating Temperature Max: 85°C
