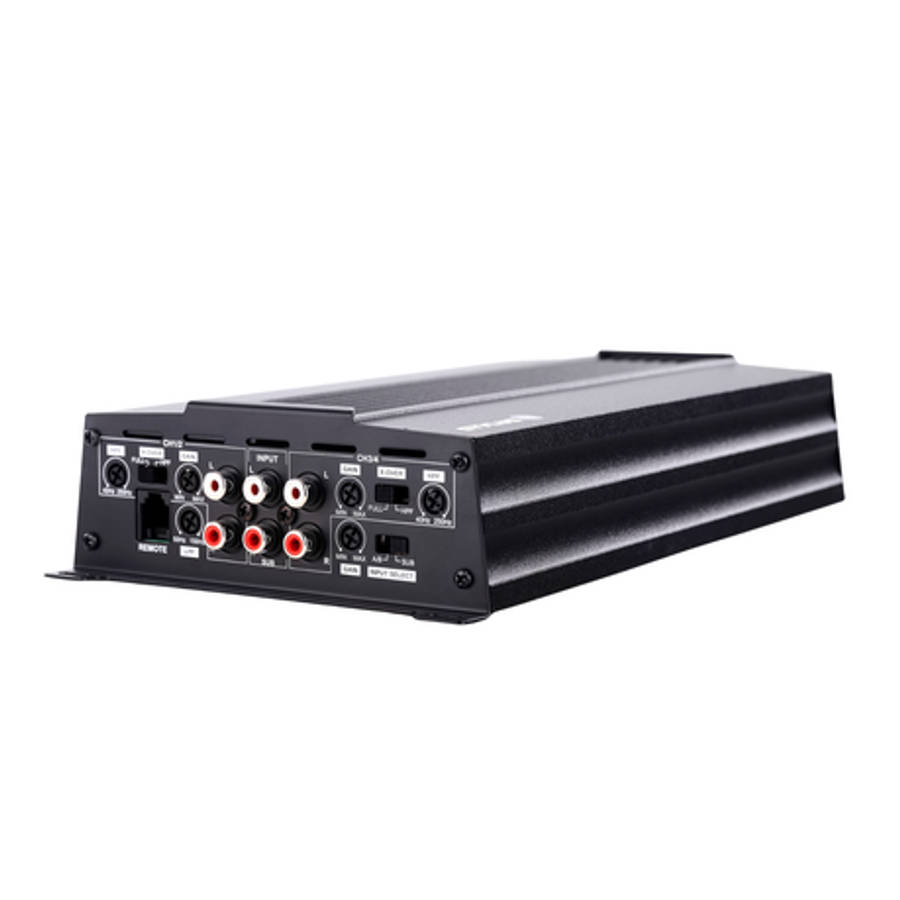

Stylus AV 5-Channel Class D Car Audio Amplifier

Stylus AV 5-Channel Class D Car Audio Amplifier

This car audio amplifier is intended for use in compatible vehicle audio systems. Review the specifications below and confirm that the power, signal, connection and installation requirements match your equipment before purchase.

Features and Specifications

The Stylus AV STY-D5.120 is a high-performance 5-channel Class D amplifier designed to deliver powerful, clean, and controlled sound. With an impressive 10,000W peak output, dedicated subwoofer channel, and advanced filtering, it's perfect for building a complete car audio system from a single amp. Whether you want punchy mids, crisp highs, or deep, controlled bass - this amp handles it all with ease.

Specifications
- Model: STY-D5.120
- Channels: 5 Channel Class D
- Peak Power: 10000W (3000 Cycles)
- RMS Power Output
- 90W RMS x 4 + 200W RMS x 1 @ 4
- 120W RMS x 4 + 320W RMS x 1 @ 2
- 240W RMS x 2 + 200W RMS x 1 @ 4

Audio Performance
- High Pass Filter (HPF): 12dB/Oct, Variable 40Hz - 250Hz
- Low Pass Filter (LPF): 24dB/Oct, Variable 50Hz - 150Hz
- Frequency Response: 20Hz - 20kHz ( 1dB)
- Signal-to-Noise Ratio: 100dB (A-Weighted)
- THD: 0.1% @ 1W
- Input Sensitivity: 200mV - 6V
- Inputs: Low-Level RCA

Design & Extras
- Dimensions: 280 x 148 x 53 mm
- Bass Controller: Included
- Compact aluminium chassis for efficient cooling

Ideal For
- Full car audio systems
- Running speakers and a subwoofer from one amplifier
- Clean daily listening or high-impact bass builds
