Submersible Solar pump Max flow 3000L/h , Max head 60 m

Submersible solar pump Max head 60m and Max flow rate 3000l/h (3m³/h).

The solar submersible borehole pump range are brush-less motor technology that generates better efficiency and performance. This product is ideal for application in remote arid areas with limited or unreliable power supply. The compact and lightweight design, ensures that these units are easy to handle and install.

Features:

• Brush-less motor, has a magnet motor that uses less energy and offers maximum efficiency.

• Intelligent water shortage protection with sensor that can be installed with pump that will switch pump off when water level is to low.

• MPPT controller ensure best performance of pump by controlling power that goes to the pump and help to ensure beter utilisation rate of solar energy.

• Pump model is a worm drive pump.

• Automatic soft Start /Stop of pump .

• Over/Under current protection.

• Max Water Submersion Depth : 50m

• Max Flow: 3000L/h (3m³/h)

• Max Head: 60m

• Motor Speed 1000 - 4000rpm

• 1"outlet (25mm)

• Pump Power 400 watt

• Pump Voltage 48 volt

• Max voltage 100 VDC

• Min start up voltage 45 VDC

• Voltage range from panels allowed 45-100 VDC

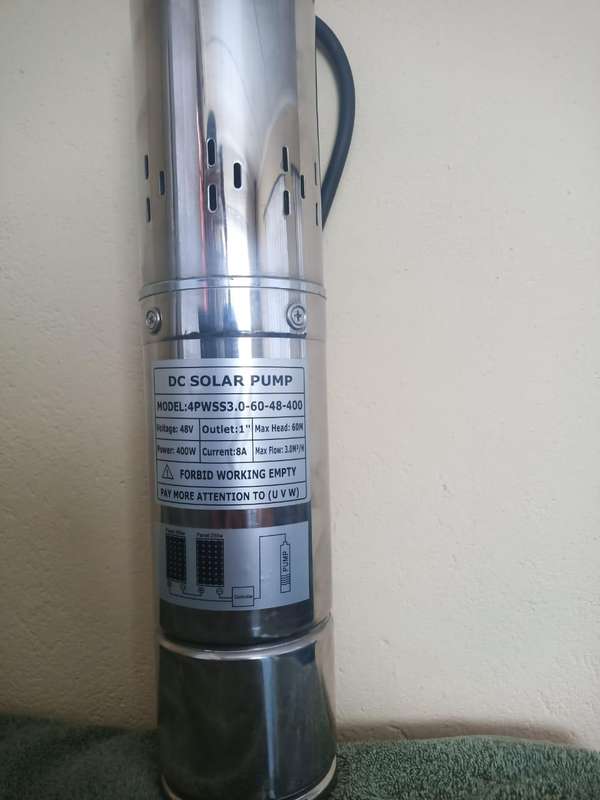

  PUMP model .  4PWSS3.0-60-48-400

What's in the box

1 x 400W 48 volt Solar Pump

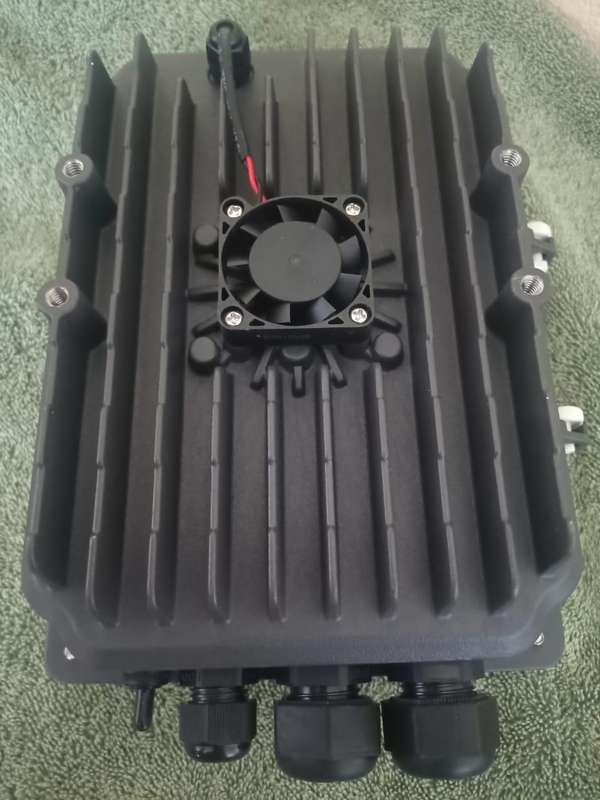

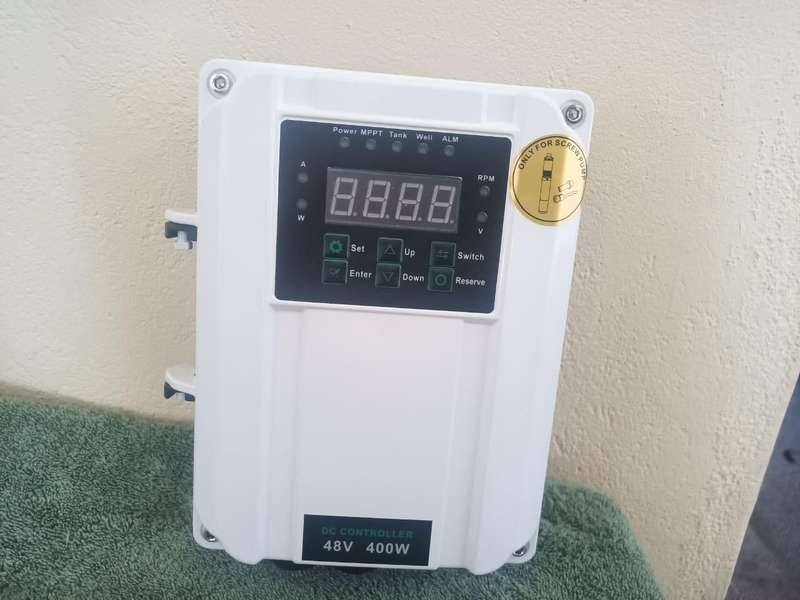

1 x Control Box

1 x Role waterproof tape

1 x water level sensor

1 x Role treat tape

4 x mounting bracket screws

2 x mounting bracket for control box

1 x 1"outlet coupler (25mm nipple)

2 x O - rings

2 x Hose clamps

1 x Role insulation tape

4 x Pieces heat shrink

1 x L- key for control box mounting screws

1 x L - key to open control box

Pump need between 45/100 volt and atleast 400w power from panels. Here's recommend panel size

For example:

1 x 48 volts (550-610watts)

Or

2 x 48 volts (300-450watts)

Or

2 x 24 volts (225-280watts)
