Submersible Water Level Transmitter Level Transducer Sensor 0-5mH2O 6m Cable

Features :
* Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity;
* Do the test to make sure the ability of overload resistance and shock resistance,precisely ensure the overloadcapacity;
* Implement the electromagnetic interference resistance to avoid the problem taken place under the condition of complicated electromagnetism environment;
* All sensitive chips are from the imported OEM parts,in order to keep the long-term stability.
Specification :
Measurement Range: 0-5mH2O/50kPa;
Cable Length: We will offer 6 meters in order to make sure the enough length;
Measurement Medium: Water;
Power Supply: 24VDC;
Output Signal: 4-20mA;
Accuracy: ±0.5%FS;
Overload Capacity: Two times full-scale pressure;
Using Temperature: -20ca120c;
Compensation Temperature Range: -10ca80c;
ZTC: (typical):±0.02%FS/c
STC: (typical):±0.02%FS/c;
Long-term Stability: (typical):±0.1%FS/year;
Waterproof Class: IP68;
Load Resistance: less than (U-10)/0.02;
Shell Material: 316L stainless steel;
Explosion-proof Type: Exia II CT6
Package Includes :
1 x Submersible Water Level Transmitter With 6m Cable

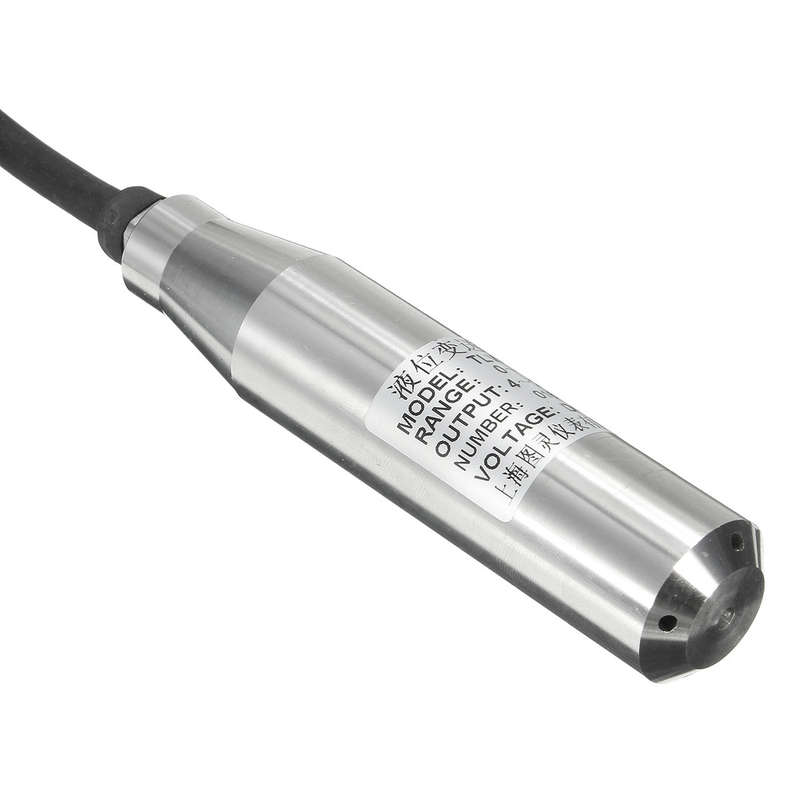

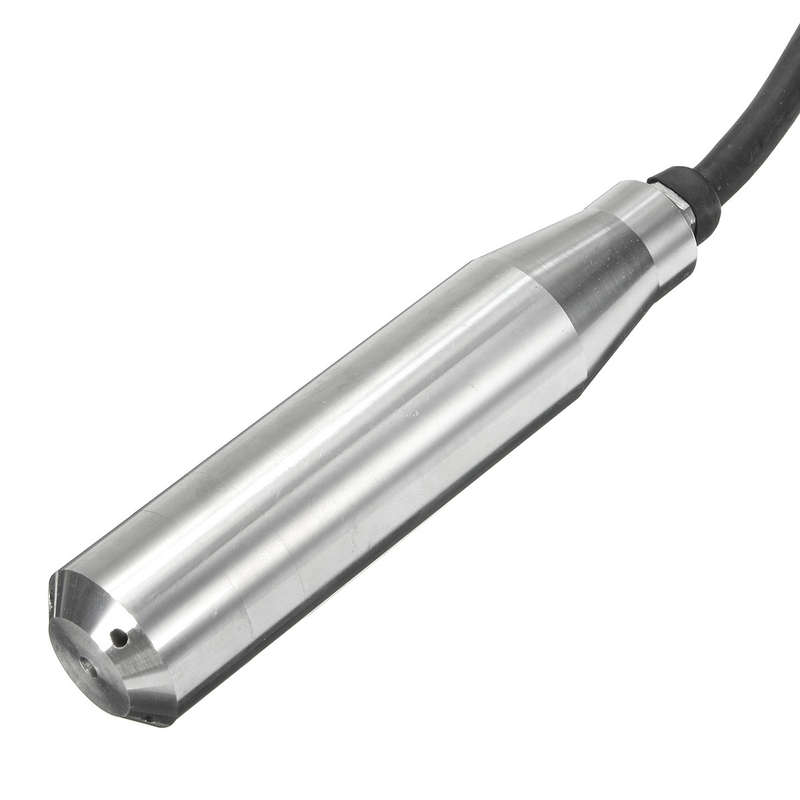

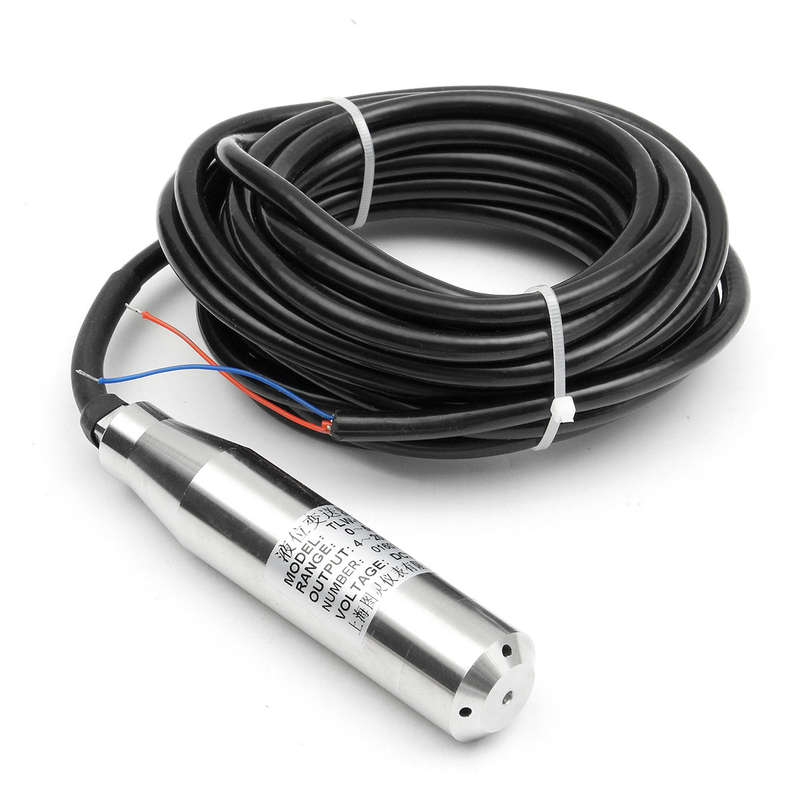

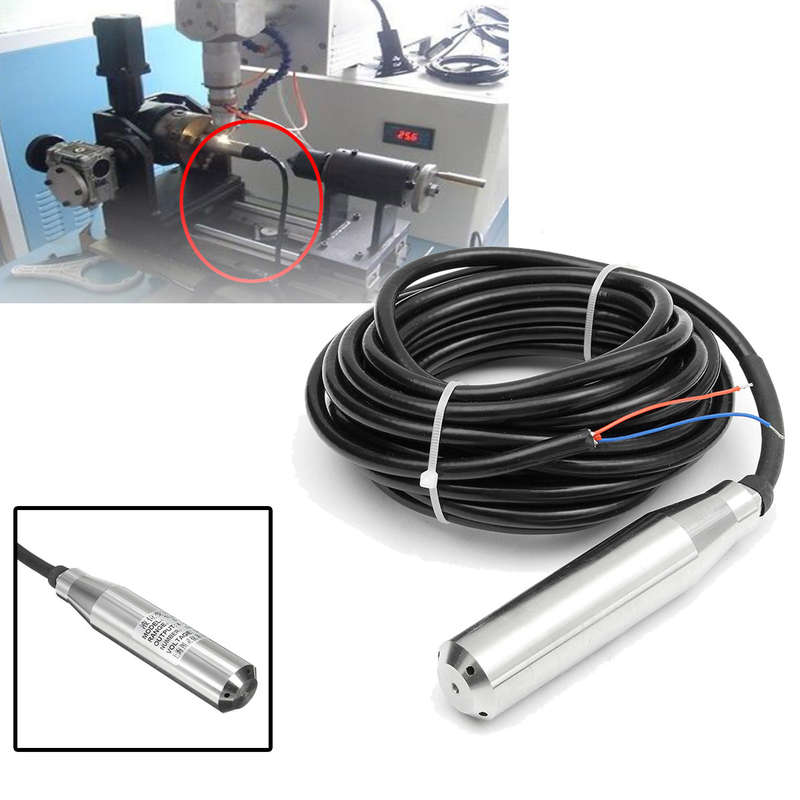

Details Pictures :
