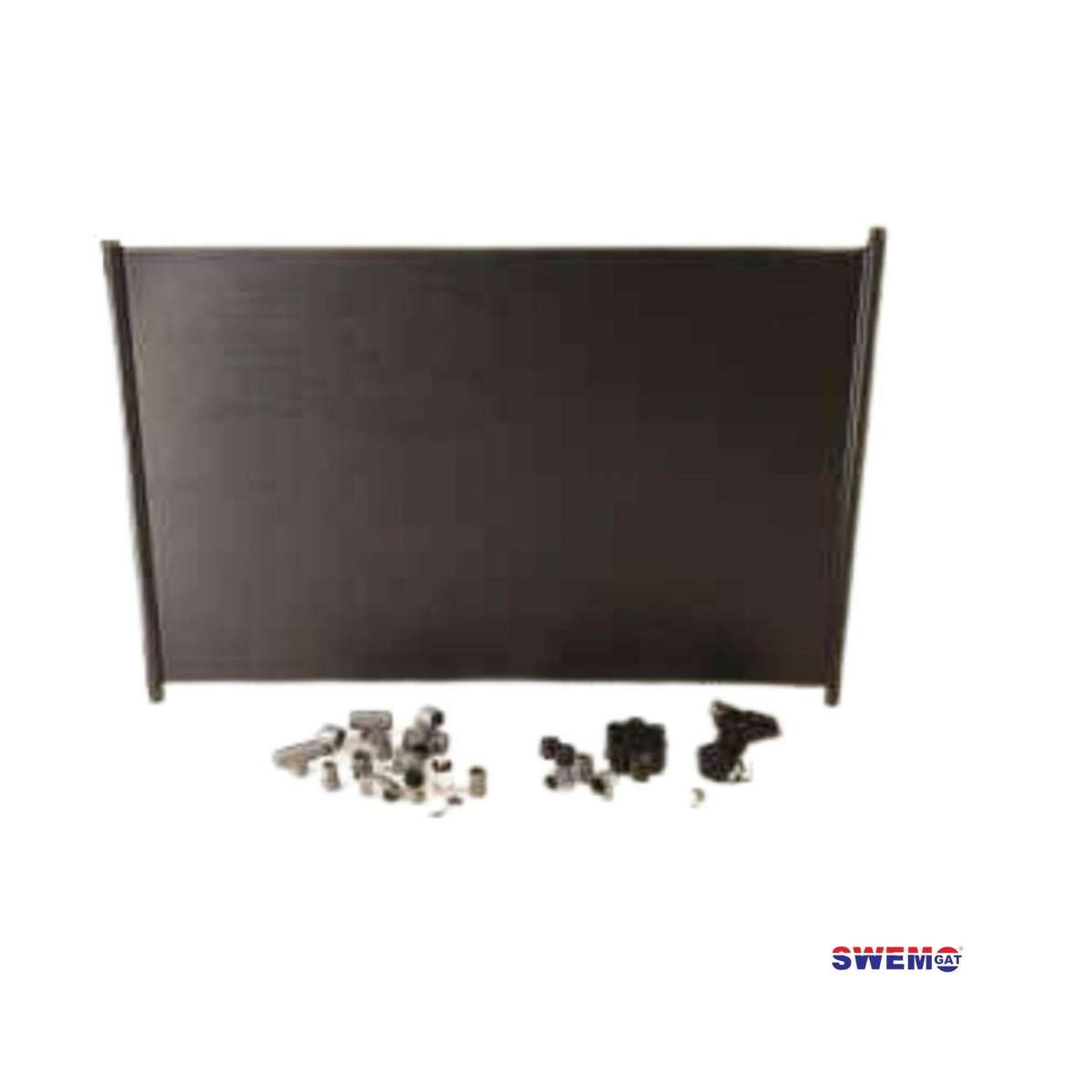

Sun Command Pool Heating 3 Solar Panel DIY Kit

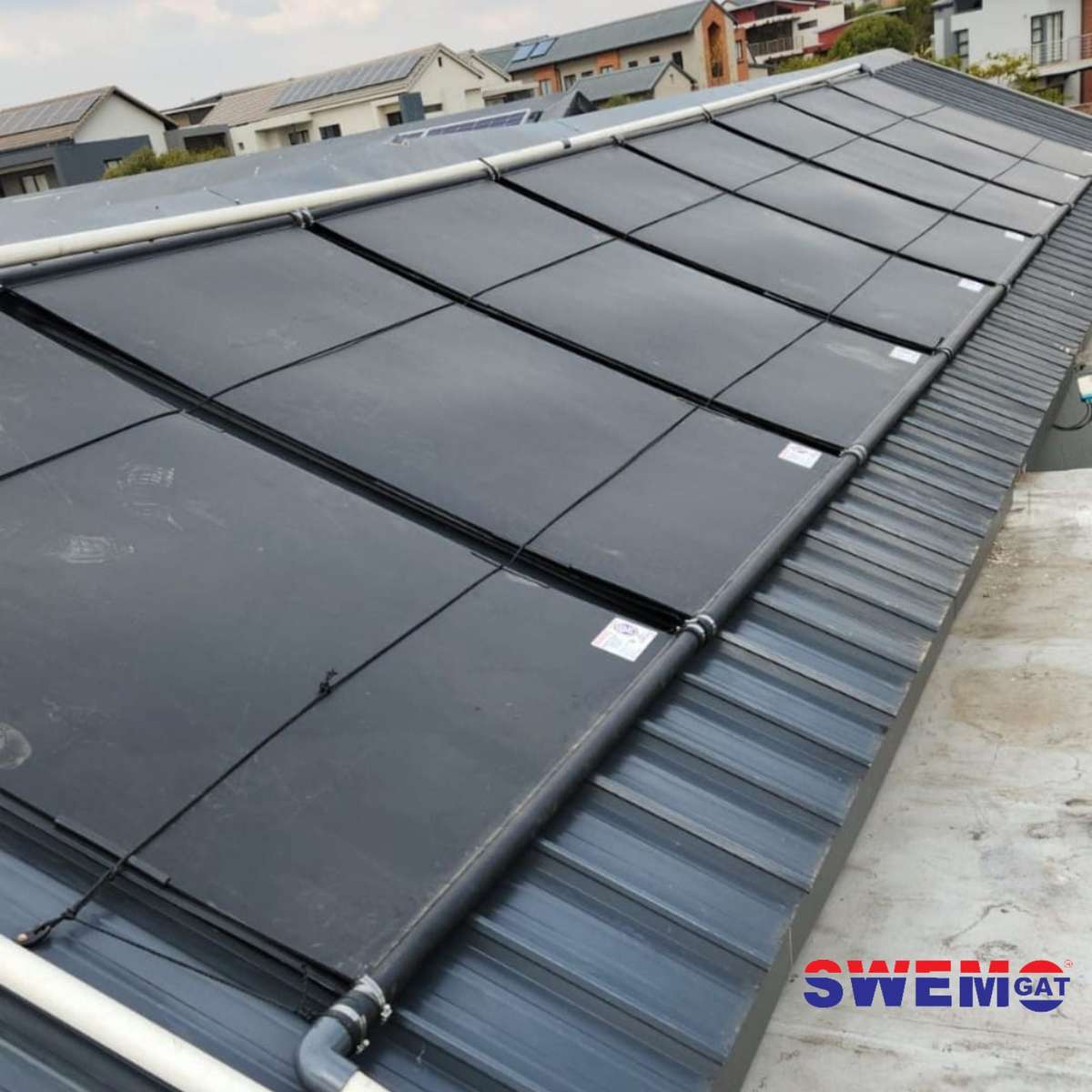

Experience the power of the sun with Sun Command Pool Heating Panels that use flat panels or collectors to efficiently heat your pool water.

These solid polypropylene panels have a 50mm inlet and outlet header that guides the water through small channels for maximum heat transfer. With the help of a pool cover, you can easily raise your pool's temperature by 8 to 12 degrees Celsius.

This eco-friendly and cost-effective method can extend your swimming season for up to 9 months of the year.

Trust our expertise and follow the sizing guidelines below for optimal results: most social swimmers will find 28-32 degrees Celsius to be the ideal temperature.

Solar pool heating sizing

For outdoor pools:

• With Cover: 30000 Litre or with a surface area of approx. 25m²
• Without Cover: 18000 Litre or with a surface area of approx. 15m²

Indoor Pools:

• With Cover: 20000 Litre or with a surface area of approx. 15m²

DIY Kit Supplied for the 3 Panels is as follows:

(3) x Solar Panels
(3) x Backing sheets

(1) x PVC Glue
(14) x Hose Clamps
(2) x EPDM End Caps
(2) x 50mm PVC-Poly Adaptor
(6) x EPDM Connectors
(20) x 50mm PVC 90 Degree Elbows
(4) x 50mm PVC Connectors
(3) x 50mm PVC T-Piece
(4) x 50mm PVC 45 Deg
(1) x Ball Valve Glued - drill 8mm hole {Bypass ballvalve}
(2) x Ball Valve Glued {Shut-off ballvalves}
(1) x 50mm PVC Non-return valve
(1) x PVC tank adaptor
(1) x Nylon Reducing bush
(1) x Vacuum breaker
(2) x  PTFE Tape
(20m) x Nylon Ski Rope

Tools Required for Installation

• Hacksaw
• Screwdriver
• Ladder
• Drilling Machine
• Extension
• Hammer
• Measuring Tape

On a Metal roof extra items required:

• Pop Rivet Gun
• Roof Sealer
• Paint Brush
• Tie down roof brackets


Diagram of solar pool heating Installation

Conditional carry-in warranty: 5 years

1. Subject to use of a backing sheet
2. Installation done insuring the panels drain all water when pump is not working
