Sun Command Pool Heating 6 Solar Panel DIY Kit

Sun Command Pool Heating 6 Solar Panel DIY Kit provides eco-friendly, cost-effective pool heating. It uses the free heat of the sun.

The flat panels or collectors absorb the sun's warmth and transfer it to the pumped pool water through small channels, gradually raising its temperature. Maximizing the system's efficiency are factors like direct sunlight and pool cover usage,.

With minimal maintenance, this system extends the swimming season and offers a comfortable increase in water temperature of between 8 and 12 degrees Celsius when a pool cover is in use. See sizing guidelines below.

Solar pool heating sizing

For outdoor pools:

• With Cover: 60000 Litre or with a surface area of approx. 48m²
• Without Cover: 36000 Litre or with a surface area of approx. 25m²

Indoor Pools:

• With Cover: 35000 Litre or with a surface area of approx. 25m²

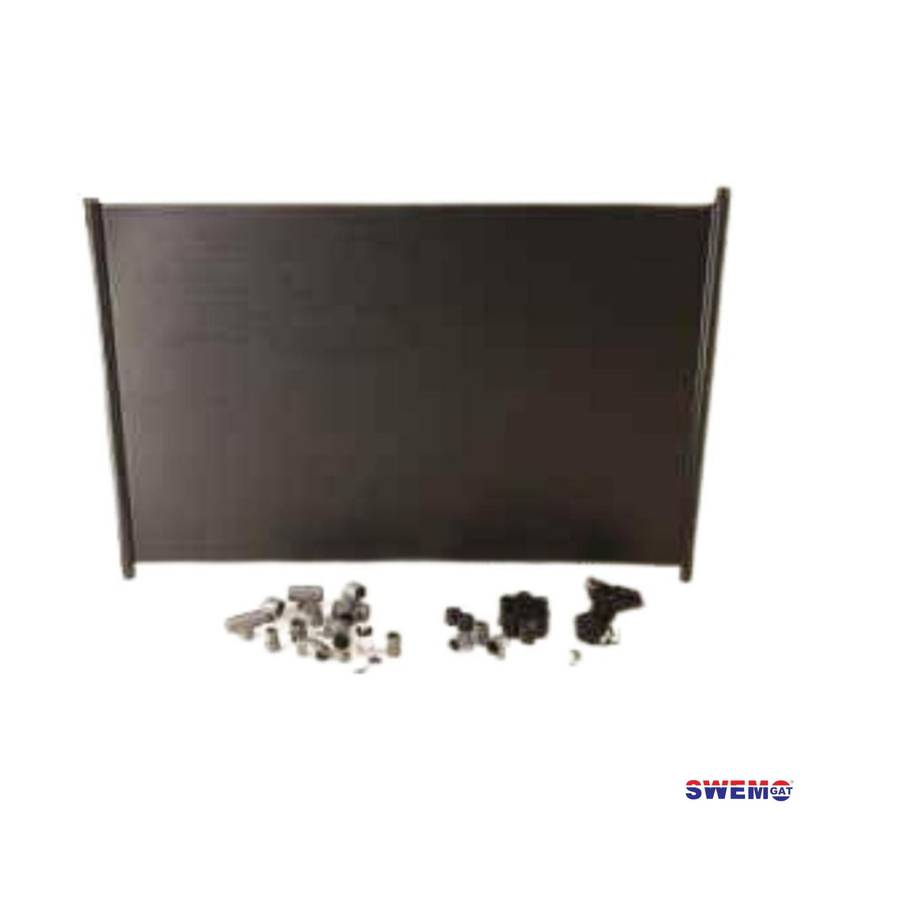

DIY Kit Supplied for the 6 Panels is as follows:

(6) x Solar Panels
(6) x Backing sheets

(1) x PVC Glue
(26) x Hose Clamps
(2) x EPDM End Caps
(2) x 50mm PVC-Poly Adaptor
(12) x EPDM Connectors
(20) x 50mm PVC 90 Degree Elbows
(4) x 50mm PVC Connectors
(3) x 50mm PVC T-Piece
(4) x 50mm PVC 45 Deg
(1) x Ball Valve Glued - drill 8mm hole {Bypass ballvalve}
(2) x Ball Valve Glued {Shut-off ballvalves}
(1) x 50mm PVC Non-return valve
(1) x PVC tank adaptor
(1) x Nylon Reducing bush
(1) x Vacuum breaker
(2) x  PTFE Tape
(35m) x Nylon Ski Rope

Tools Required for Installation

• Hacksaw
• Screwdriver
• Ladder
• Drilling Machine
• Extension
• Hammer
• Measuring Tape

On a Metal roof extra items required:

• Pop Rivet Gun
• Roof Sealer
• Paint Brush
• Tie down roof brackets


Diagram of solar pool heating Installation

How many panels do I need:

Fact: "More panels equals more heat!"

 Conditional carry-in warranty: 5 years

1. Subject to use of a backing sheet
2. Installation done insuring the panels drain all water when pump is not working
