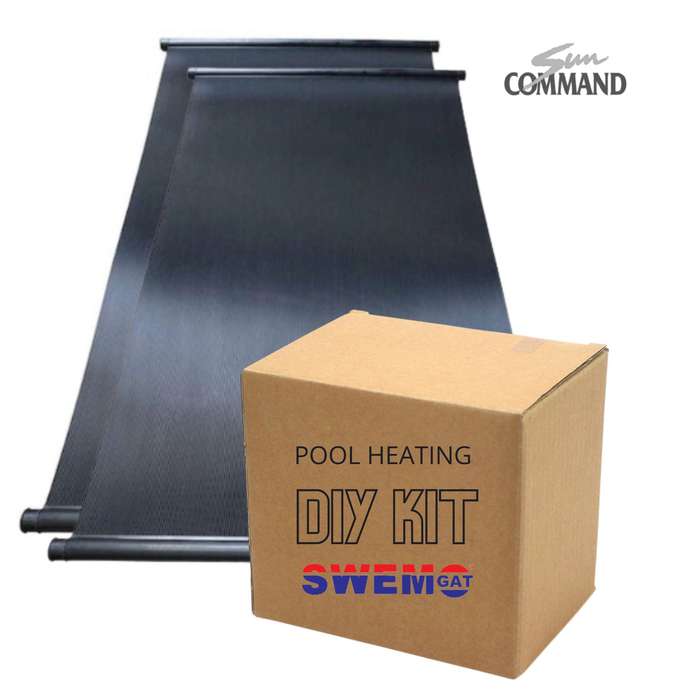

Sun Command Pool Heating 7 Solar Panel DIY Kit

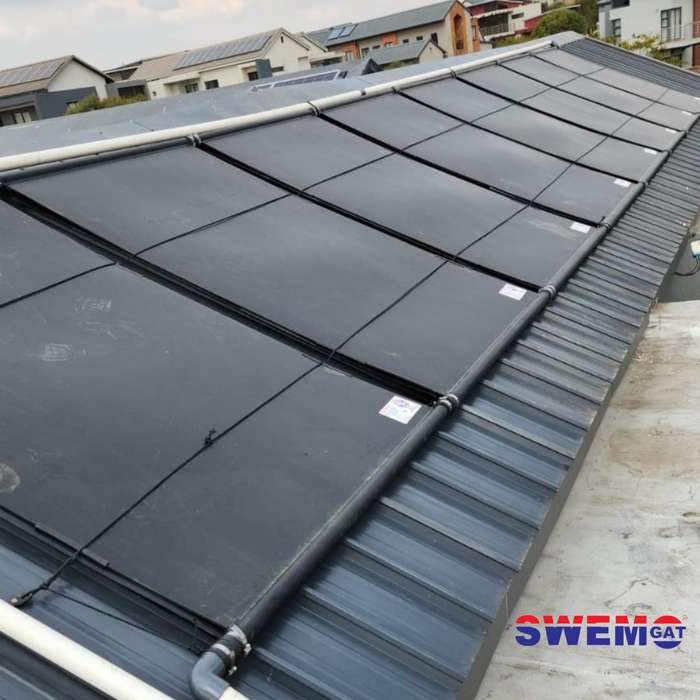

The Sun Command Pool Heating system utilizes the sun's energy to gradually raise pool water temperature. The solid polypropylene collectors are designed to maximize heat transfer, while a pool cover is highly recommended to retain heat and minimise heat loss.

This eco-friendly and cost-effective method can extend the swimming season to 9 months, creating an exclusive and luxurious experience for swimmers.

See sizing guidelines below.

Solar pool heating sizing

For outdoor pools:

• With Cover: 80000 Litre or with a surface area of approx. 55m²
• Without Cover: 40000 Litre or with a surface area of approx. 28m²

Indoor Pools:

• With Cover: 40000 Litre or with a surface area of approx. 28m²

DIY Kit Supplied for the 6 Panels is as follows:

(7) x Solar Panels
(7) x Backing sheets

(1) x PVC Glue
(30) x Hose Clamps
(2) x EPDM End Caps
(2) x 50mm PVC-Poly Adaptor
(14) x EPDM Connectors
(20) x 50mm PVC 90 Degree Elbows
(4) x 50mm PVC Connectors
(3) x 50mm PVC T-Piece
(4) x 50mm PVC 45 Deg
(1) x Ball Valve Glued - drill 8mm hole {Bypass ball valve}
(2) x Ball Valve Glued {Shut-off ballvalves}
(1) x 50mm PVC Non-return valve
(1) x PVC tank adaptor
(1) x Nylon Reducing bush
(1) x Vacuum breaker
(2) x  PTFE Tape
(40m) x Nylon Ski Rope

Tools Required for Installation

• Hacksaw
• Screwdriver
• Ladder
• Drilling Machine
• Extension
• Hammer
• Measuring Tape

On a Metal roof extra items required:

• Pop Rivet Gun
• Roof Sealer
• Paint Brush
• Tie down roof brackets

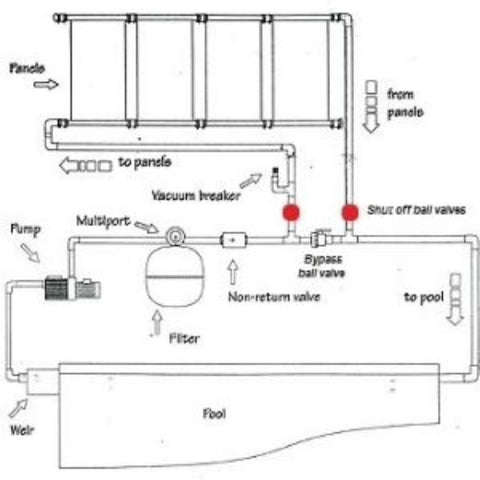

Diagram of solar pool heating Installation

 Conditional carry-in warranty: 5 years

1. Subject to use of a backing sheet
2. Installation done insuring the panels drain all water when pump is not working
