Product details
Hybrid Inverter Solar Kit

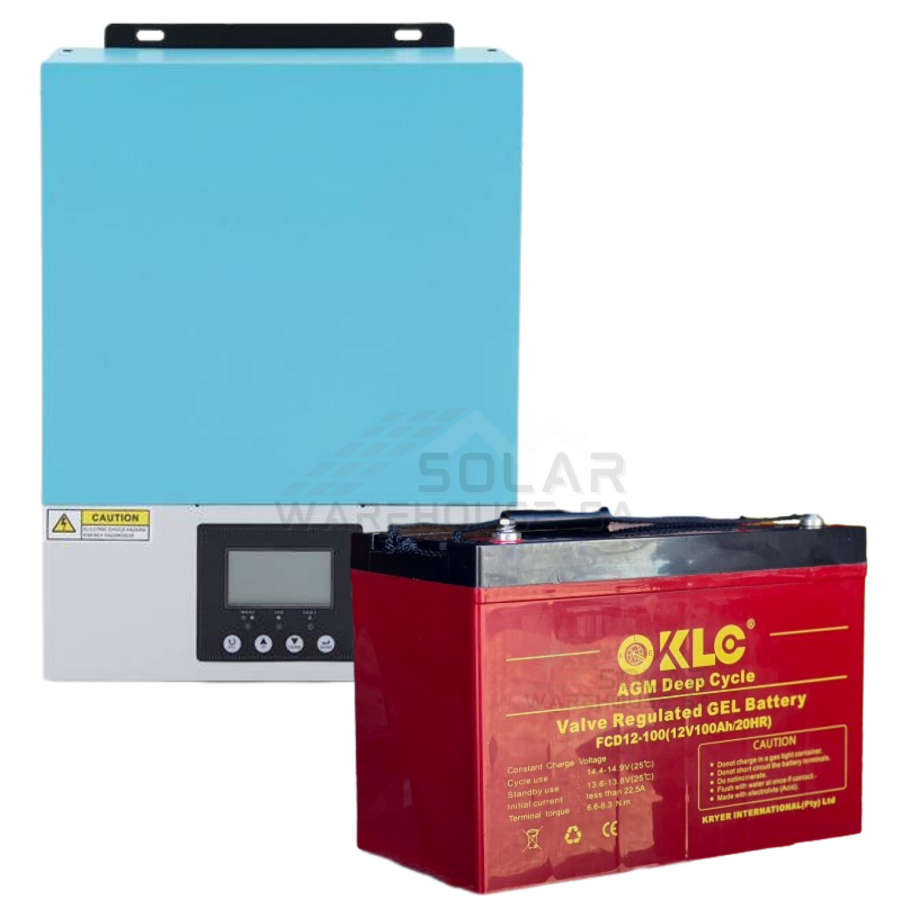

Sun Solar 2KVA MPPT Pure Sine Wave Load Shedding Combo Watt 1X 100AH Gel / AGM Battery
Overcome load shedding with this premium hybrid inverter load-shedding Combo
Hybrid Inverter Specifications:

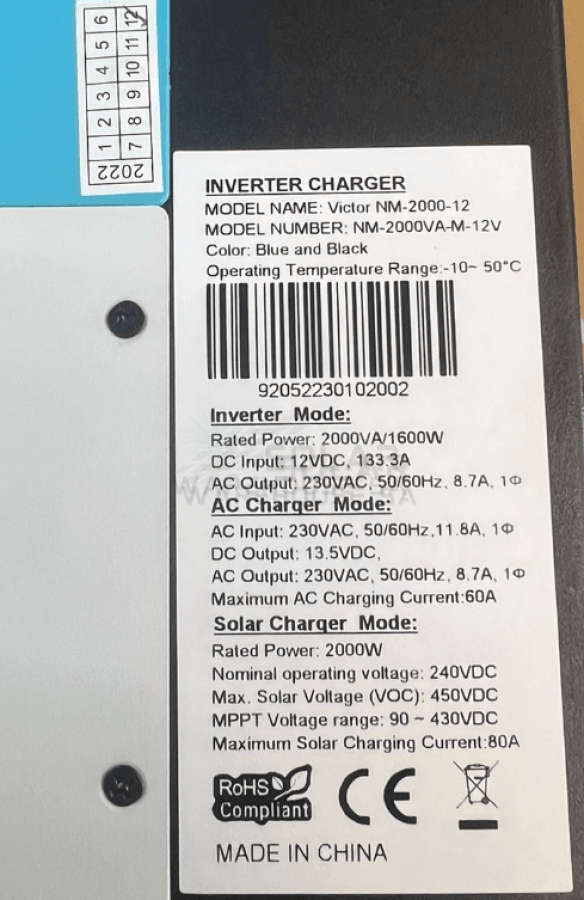

Hybrid Inverter 2KVA 1600 Watt MPPT 12V
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS (Optional)
Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes the following devices to have a complete running system:
Generator or Utility.
PV modules
L x 390mm H x 100mm W x 290mm
5kg
(PLEASE NOTE THE FANS ARE ALWAYS ON)
What's in the box
1 x Hybrid Solar Inverter
1 x Manual
Battery Specifications;
Valve regulated Gel Battery
DG12-120 (12V 120Ah/20HR)
Great Sealed Lead-Acid Battery!
This battery is 12 Volts and has a 120 amp/hours capacity.
This Deep-cycle battery can be used with the following:
- Inverters
- UPS systems
- Electrical Tools
- Boats or Caravans
- Electrical Vehicle
- Solar light systems
Specifications
- 12 Volt DC
- 120Amp Hours
Combo includes:
- 1x AGM Gel Battery 100 Ah Deep Cycle Battery 12V - KLE 100Ah/20HR
- 1x 2KVA MPPT Pure Sine Wave Sun Solar Inverter (1 Years Repair Warranty)
- Battery Cables Not Included
- Warranties:
(Please note this only applies to gel batteries and not lithium batteries)
- The standard batteries in this kit are rated to last 200-300 cycles (load shedding).
- During occasional load shedding, at stages 1-2, the average life span is 2 years.
- Unfortunately, during constant load shedding, at stages 2 - 6, these cycles will be depleted within a few months.
- The batteries will also be further degraded due to insufficient time to recharge fully in between load-shedding cycles.
- As soon as the batteries stop lasting, unfortunately, the warranty becomes void, as this means that the batteries have depleted their cycles and reached the end of their life
- 200-300 cycles (deep cycle batteries) in mind when running the system.
- Therefore, during constant stages 2-6, we highly recommend keeping the inverter's power switch OFF. Then, only switch it on when the need for backup power is crucial.
- This will preserve the longevity of the batteries (please keep it plugged into the wall permanently to keep it charged).
