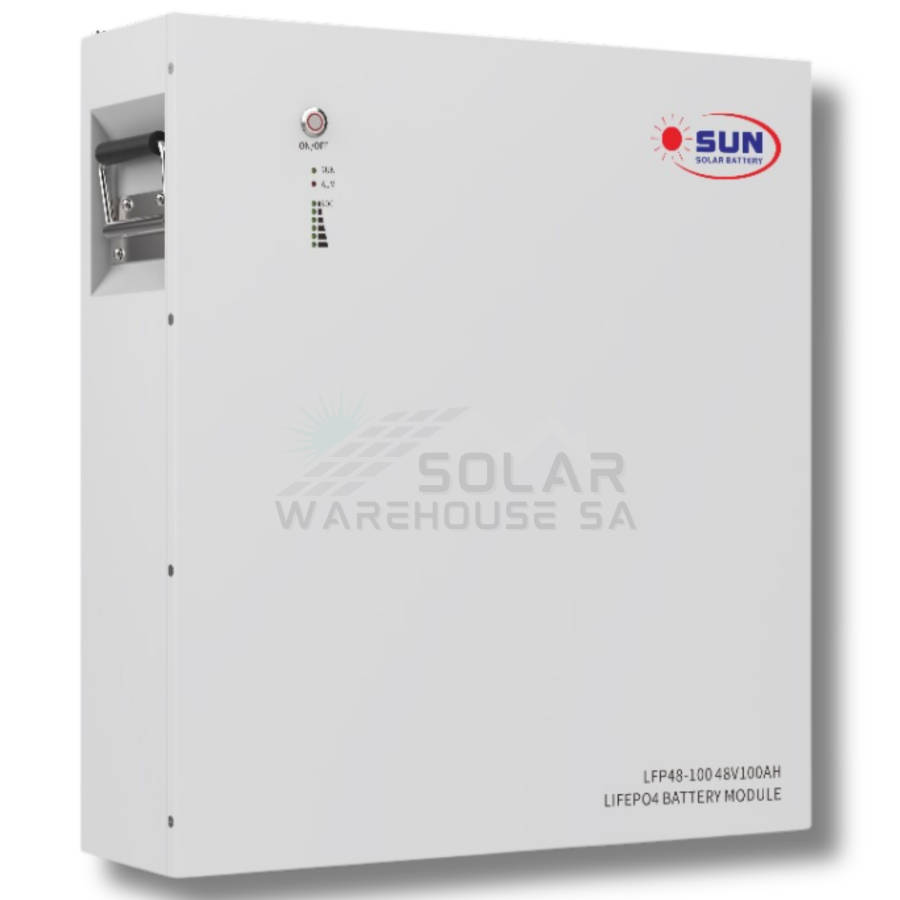

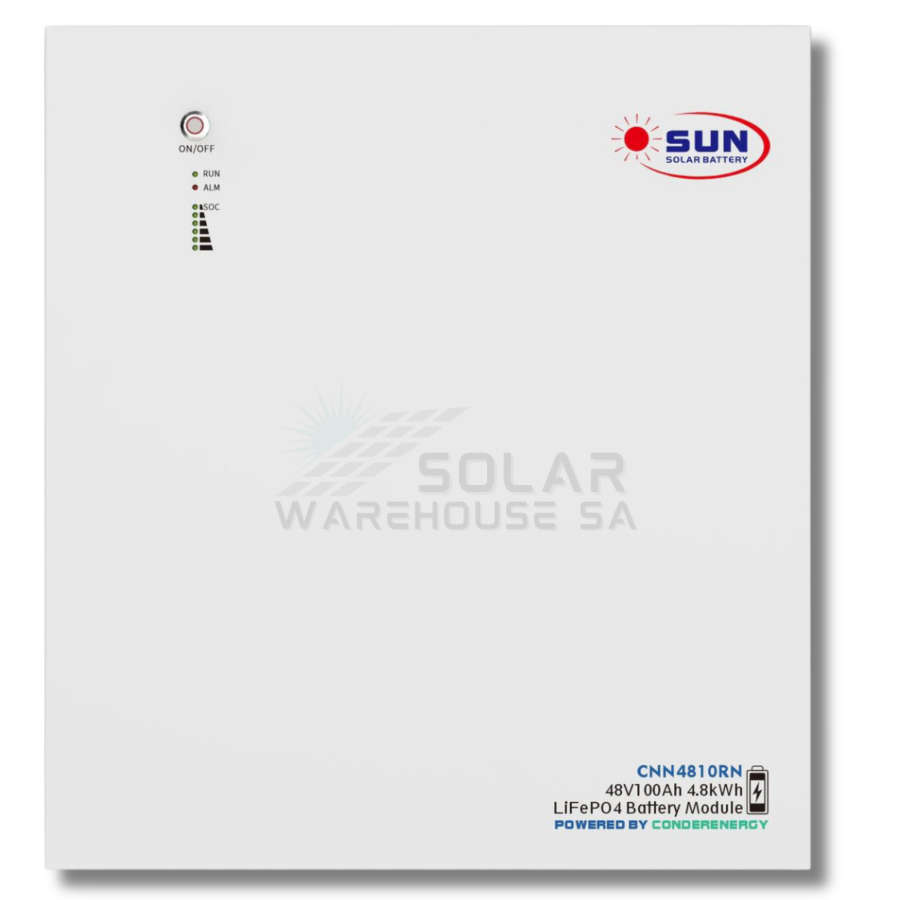

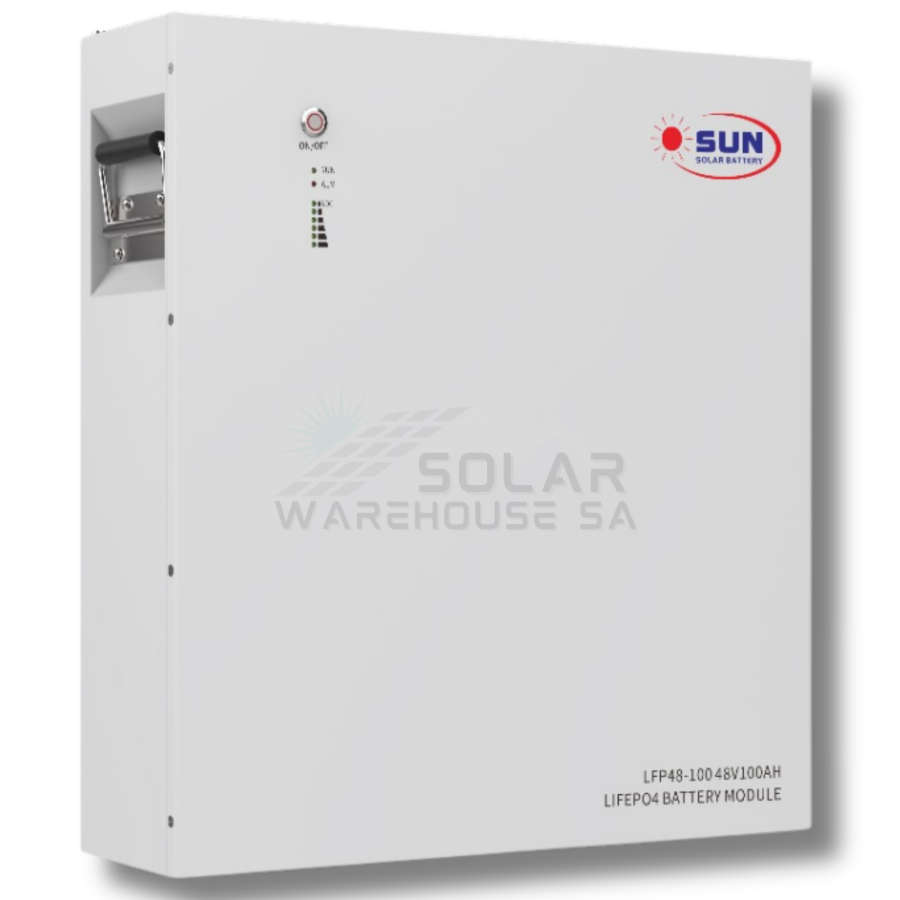

Sun Solar 48v 100ah 4.8kWh A-Grade Lithium Battery CNN4810RN
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Sun Solar 48v 100ah 4.8kWh A-Grade Lithium Battery CNN4810RN
- Product Features
Ultra high safe LiFePO4 battery
Built-in BMS for multiple protection & longer lifespan
Active balancing function and lower self-consumption
Lightweight module design for fast installation & easy maintenance
Parallel up to 16 modules for flexible capacity extension.

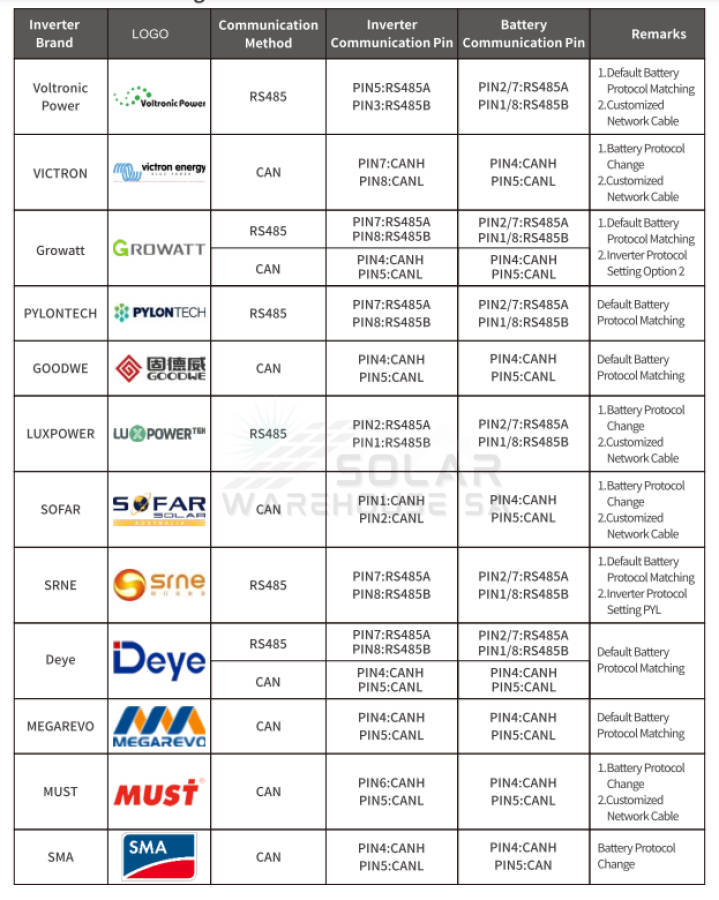

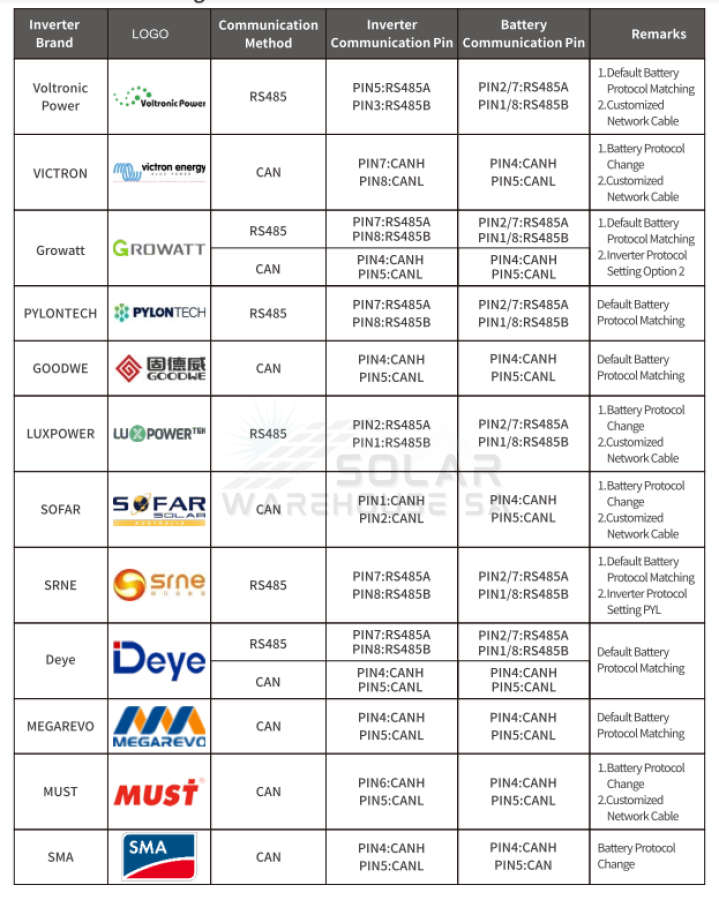

Wide temperature range for more application scenes. - Communicate with with most brands (list attached)

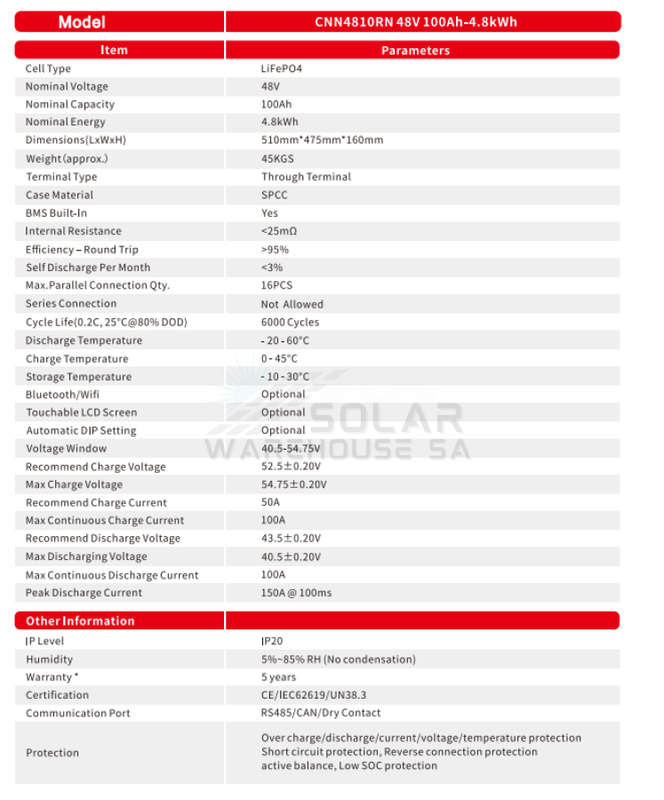

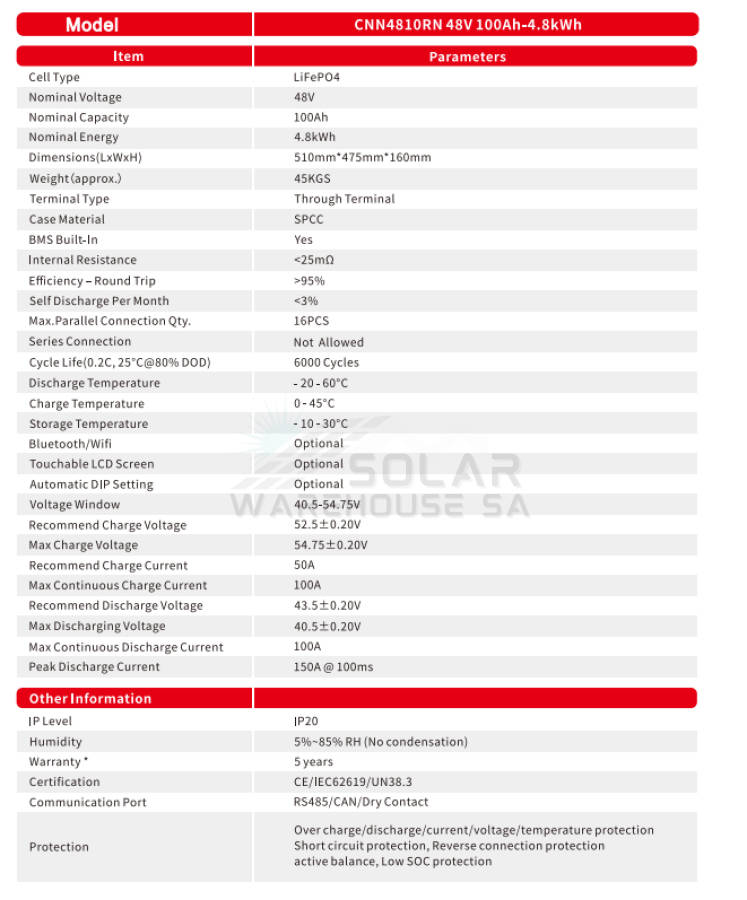

Specifications:
Cell Type LiFePO4
Nominal Voltage Nominal Capacity 48V
Nominal Energy 100Ah
Dimensions (LxWxH) 510 x 475 x 160 mm
Weight (approx.) 45kg
Terminal Type Through Terminal
Case Material SPCC
BMS Built-In Yes
Max.Parallel Connection Qty 16pcs
Series Connection No
Cycle Life (0.2C, 25C@80% DOD) 6000 Cycles
Recommend Charge Voltage 52.5v
Recommend Charge Current 50A
Max Continuous Charge Current Recommend Discharge Voltage 43.5V
Max Discharging Voltage 40.5V
Max Continuous Discharge Current Peak Discharge Current 100A

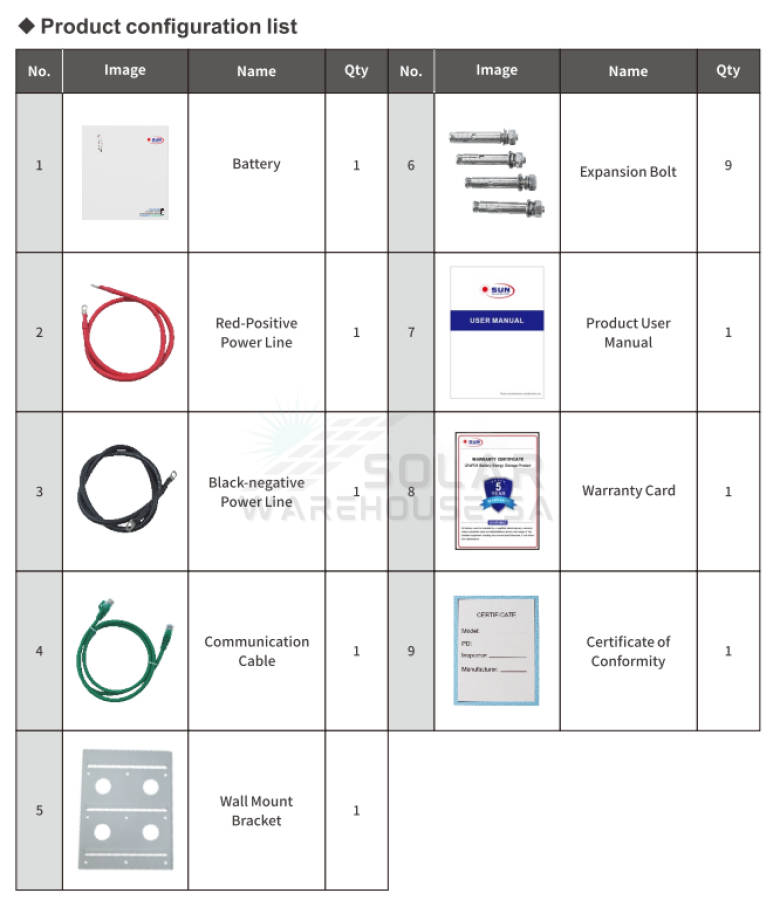

What's in the box:
- Battery
- Battery Cables & Mounts Included
- Warranty Card
- Communication cable
- User Manual
- Expansion Bolts
- Certificate Of Conformity
Warranties:
5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
