Sun Solar MPPT 12-24v DC 30A Solar Charge Controller
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

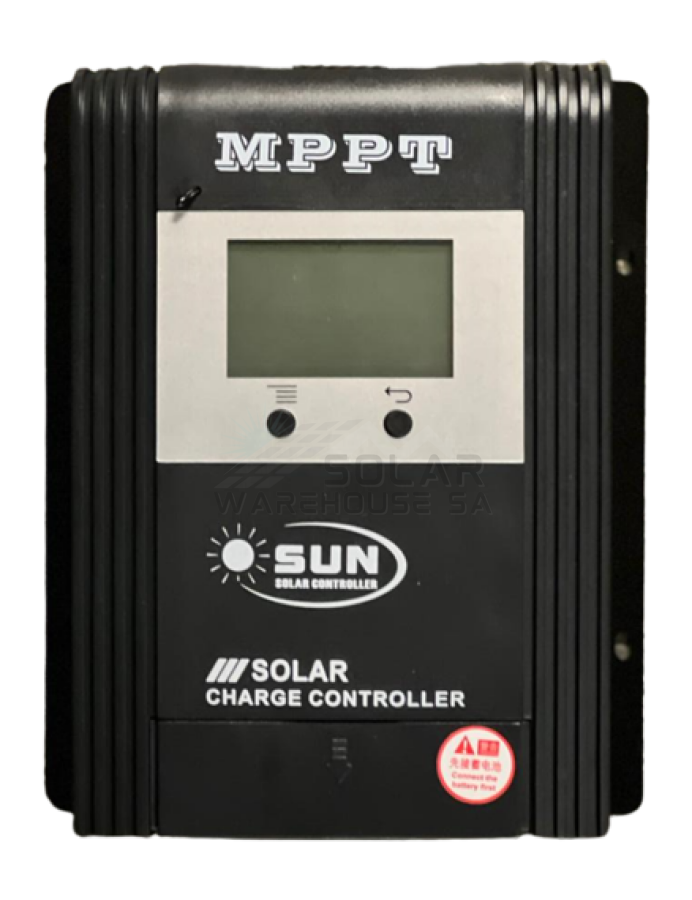

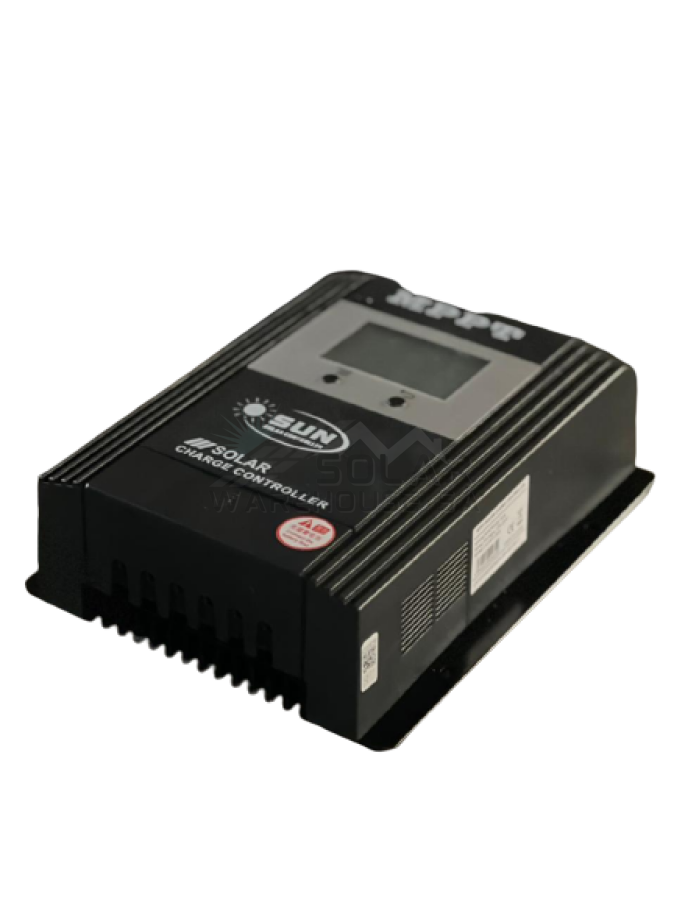

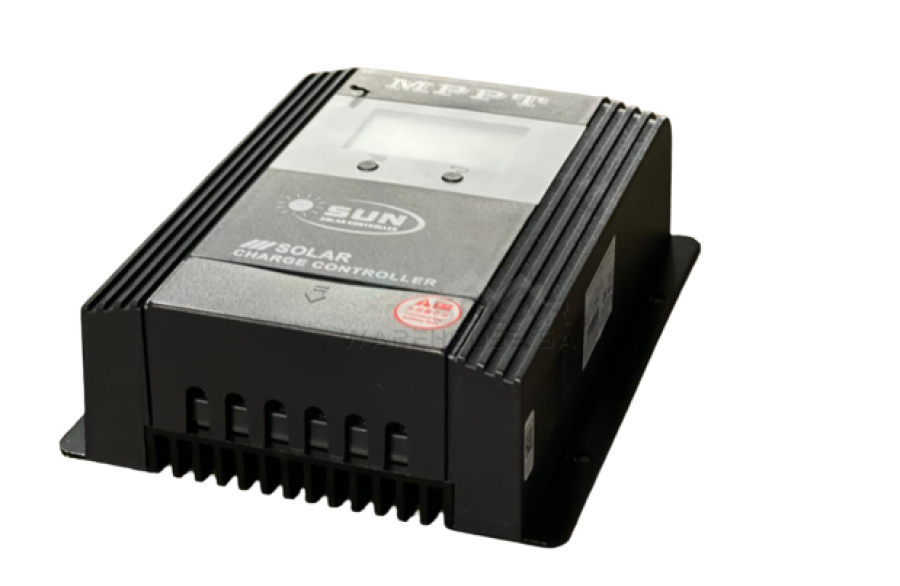

Sun Solar MPPT 12-24v DC 30A Solar Charge Controller
Thank you for selecting MPPT series solar charge controller with the
most advanced MPPT control algorithm and the maximum power point
of the pv array can be quickly tracked in any environment so that it can
get the maximum energy from the solar panel and significantly improve
the utilization of energy in solar system. The machine has the dual
display function of LCD and Remote header (optional) and standard
communication interface, convenient for user extension application and
satisfy different monitoring needs to the maximum extent. It can be
used in communication base station, home power supply system,
traffic light, solar street lamp, courtyard lamp system, etc.
Advanced MPPT maximum power point tracking technology, the
tracking efficiency is no less than 99.5%.
High quality components are used to improve the system
performance, and the maximum conversion efficiency can reach97%.
Super fast maximum power tracking speed while ensuring tracking
efficiency.
Accurate identification and tracking of the maximum power point of
multi-wave peak.
Reliable maximum input power of pv array to ensure the safety of
equipment.
Wide pv array maximum power point operating voltage range.
12/24v automatic voltage identification
The LCD is designed to dynamically display the operation data and
working status of the equipment.
Various load control modes: general mode, light control mode, dual
time mode, pure charger mode and timing mode.
Seal, GEL, Flooded, LifeP04 and Li (NiCoMn) 02 charging process
can be selected.
The function of battery temperature compensation.
Power statistics recording function.
Support PC monitor, external display unit and other peripherals,
realize real-time data view and parameter setting function.
