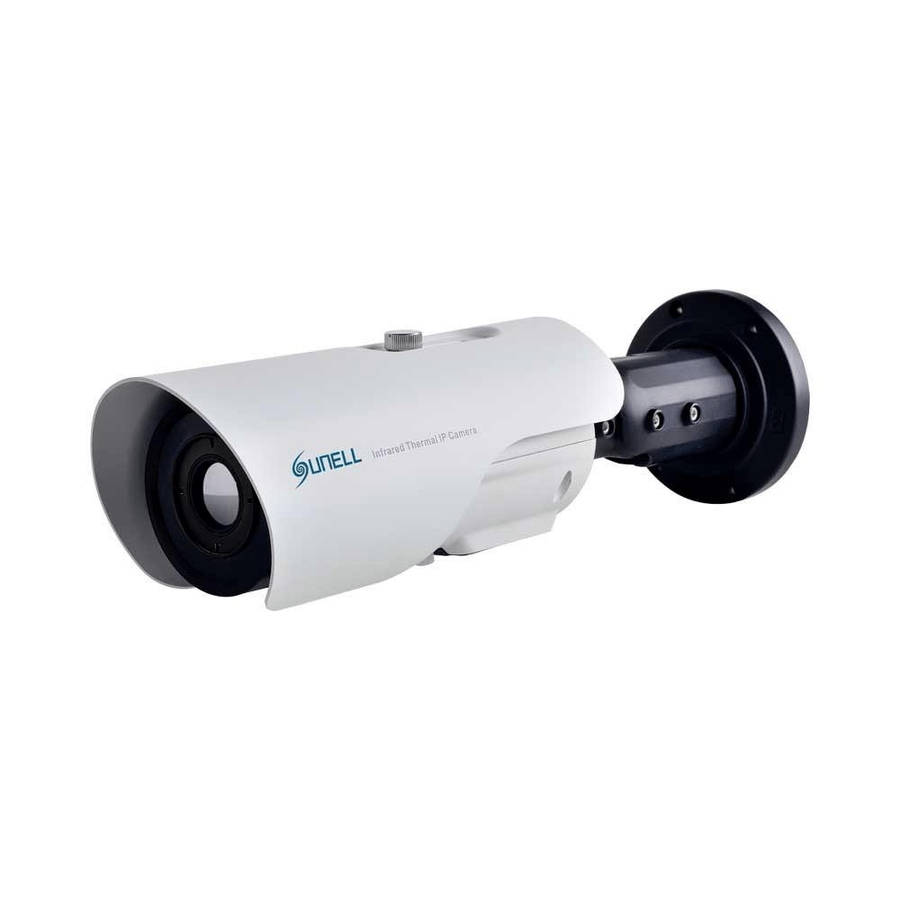

Sunell 50mm Fixed Lens Thermal PoE Bullet Camera

Features

• On-Board Temp-Detection Algorithm
• Effective Pixels 400×300
• Sensitivity 40mK
• 20 Spots / 2 Lines / 16 Areas Temperature Detection
• 17 Color Control
• DVE Image Enhance
• Standalone Operating

Specifications:

• Thermal CameraDetector Type: Uncooled IRFPA Microbolometer
• Effective Pixels: 400(H) ×300(V)
• Pixel Size: 17um
• Thermal Sensitivity (NETD): 40mK -F1.0, 300K
• Spectral Range: 8~14um
• Image Setting: Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
• Color Palettes: Black-Heat /White-Heat/Rainbow/Iron-Red up to 17 modes
• Pan/Tilt: Pan:0Ëš~360Ëš; Tilt:0Ëš~90Ëš; Rotation:0Ëš~360

Thermal Lens:

• Lens Type: Fixed
• Focus Control: Manual Focus
• Focal Length: 8mm
• F No.: F1.0
• Angle of View: H: 46°V:35.3°
• Detection Distance Fire(1m*1m): 235m
• Detection Distance Man(1.8m*0.5m): 235m
• Detection Distance Vehicle(4m*1.5m): 722m
• Recognition Distance Fire(1m*1m): 78m
• Recognition Distance Man(1.8m*0.5m): 59m
• Recognition Distance Vehicle(4m*1.5m): 180m
• Video and AudioCompression: H.265, H.264, MJPEG
• Frame Rate: Main Stream: D1 -25/30fpsSub Stream: CIF -25/30fps
• Bit Rate Control: CBR/VBR
• Bit Rate: 100Kbps~6Mbps
• Region of Interest: Off / On (8 Zone, Rectangle)
• Electronic Image Stabilization(EIS): N/A
• Digital Zoom: 16x
• Mirror: Support
• Defog: Support
• Motion Detection: Support
• Privacy Masking: Off / On (5 Area, Rectangle)
• DVE Image Enhance: Support
• Audio Compression: G.711, AMR, RAW_PCM (Optional)
• IntelligenceIntelligent Functions: Motion detection, Disk alarm, I/O alarm, Temperature alarm
• IVS: Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed

Temperature  Detection:

• Detection Mode: Spot, Line, Area
• Detection Preset: Support 3 temperature measurement rule types, 20 rules (20 points / 2 lines / 16 regions )
• Temperature Alarm: Over temperature alarm, Temperature difference  alarm
• Accuracy: ±2⃠/ ±2%
• Response Time: 30ms
• Effective temperature working environment: -40 °C ~ 60 °C (-40°F ~ 140 °F)
• Theory of temperature measurement range: -40 °C ~ 150 °C (-40°F ~ 302 °F)
• Temperature display mode: Temperature target ＞5âƒ, Display absolute temperature value,Temperature target 5âƒ, Display relative temperature value (temperature difference DEV = highest value - average)

NETWORK:

• Ethernet: RJ-45 (10/100Base-T)
• Protocols: IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, SIP ,802.1x
• Interoperability: ONVIF, CGI
• Streaming Method: Unicast
• Max. User Access: 10 Users
• Edge Storage: NASLocal PC for instant recordingMicro SD card 128GB
• Web Viewer: <IE11, Chrome, Firefox
• Web Language: English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian

INTERFACE:

• Ethernet: 1 Ethernet (10/100 Base-T) RJ-45 Connector
• Audio Interface: 1ch Audio In,1ch Audio Out
• Alarm: 2ch Alarm In,2ch Alarm Out
• RS485: Support
• BNC Output: Support
• Reset Button: Support
