System:
- Main Processor Dual-core embedded processor
- Operating System Embedded LINUX
Audio and Video:
- IP Camera Input 8 Channel
- Two-way Talk Yes
- Intelligent Video Face Recognition, Attendance
Face Recognition:
- Performance Max 20 face pictures /sec processing
- 8ch picture stream face recognition
- Stranger Mode Detect strangers' faces (not in device's face database)
- Similarity threshold can be set manually
- AI Search Search for image by image
- Search image by properties
- Database Management Up to 16 face databases with 10,000 face images in total
- Database Application Every data can be applied to any channel
- Trigger Events Buzzer, Alarm Out, compare the result simultaneously, etc.
Display:
- Interface 1 HDMI, 1 VGA
- Resolution HDMI: 3840 x 2160,1920 x 1080,1440 x 900, 1280 x 1024
- VGA: 1920×1080, 1280×1024, 1280×720
- Decoding Capacity 1ch 12MP/4ch 5MP/8ch 1080Pat30fps
- Multi-screen Display 1/4/9
Recording:
- Compression H.265+/H.265/H.264
- Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/ D1 etc.
- Record Rate 80Mbps
- Bit Rate 128Kbps ~ 8192Kbps Per Channel
- Record Mode Manual, Schedule (Regular, Continuous), Motion Detection, Video Loss, Camera Tamper, Alarm in
- Record Interval Post-record: 30 - 60 sec
Video Detection and Alarm:
- Trigger Events Recording, Buzzer, Push message, Pop up message.
- Video Detection Motion Detection, Video Loss, Camera Tamper
- Alarm In/Out 8/1
Playback and Backup:
- Sync Playback 9/4/1
- Search Mode Time /Date, Alarm, Picture grid, Event
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next
- Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device
Network:
- Interface 1 RJ-45 port (10M/100Mbps)
- PoE Interface 8ch 100Mbps, IEEE802.3af
- PoE Max Power 80W
- Network Function HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP
- Max. User Access 10 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF, SDK, CGI
Storage:
- Internal HDD 1 SATA Ports, up to 12TB for each HDD
- Mounting Mode Embedded Interface
- USB 2 ports (USB 2.0 x1, USB3.0 x1)
- Audio I/O 1ch MIC in, 1ch Audio line out
Specifications:
- Power Supply DC48V/2.5A
- Power Consumption 5W (without HDD)
- Operating Conditions -10 degree celsius - 50 degree celsius (14 F - 122 F)
- Storage Conditions Less than 90% RH
- Certifications CE/FCC
- Dimensions 255 x 235 x 47.5mm
- Net Weight 1kg
What's in the box

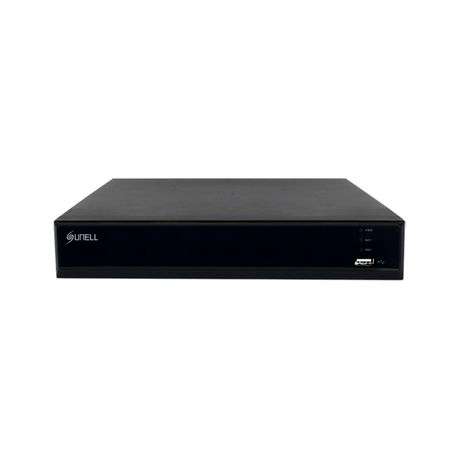

1xSunell NVR 8-Channel, 1 Bay, 1x LAN, 8x PoE, H.265
