Specifications

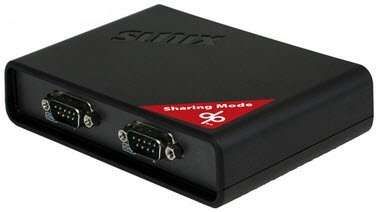

Sunix DPSS02H00 DevicePort Sharing mode Ethernet enabled with WiFi support, device sharing for connected peripherals to switch between multiple hosts - 2x serial/RS-232 over Ethernet, upstream+downstream with daisy support up to 255x serial ports, auto-detect & port-mapping, 115 Kbps, sunix DPL2000Q chipset, 121x81.9x27mm, 15KV ESD protection + 8KV IEC1000-4-2 Contact Discharge + 4KV line-to-line protection, powered by USB - to prevent on-line spy recording, DevicePort Dock Mode limits specific Ethernet port connection to PC (not directly on router or switch)
Overview:
DPSS02H00 allows users to expand two RS-232 ports over Ethernet connection, and it works on any windows based desktop, thin client, laptop, All-in-one, and tablet PC computers. With SUNIX DPL2000Q High-Performance Ethernet-UART controller and exclusive I/O Redirection Technology, DevicePort creates physical COM ports that support real time data communication, Smart COM on/off-line deployment, Device Sharing, and Ethernet-COM port hot-plug capability; user can expand RS-232 COM port easily without complex software configuration. SUNIX DevicePort improves solution deployment efficiency to achieve greater reliability in commercial and industrial automation applications.
Features:
Expands 2 independent RS-232 serial ports over Ethernet networking.
Built-in with SUNIX DevicePortR DPL2000Q High-Performance Ethernet-UART controller.
SUNIX DevicePort proprietary Ethernet I/O Redirection Technology.
Serial communication with real time data transmit and receive.
Physical COM port accessible via Windows Device Manager.
Up to 255 COM ports can be setup on a windows system simultaneously.
Accessing Legacy COM port by using existing software and application.
Flexible port configuration with DevicePort on/off-line smart COM deployment.
Auto connection and mapping with MAC address bound.
Keeps physical COM port in system when DevicePort under off-line mode.
Serial signal staging until DevicePort recovery back to on-line mode.
Device Sharing allows connected peripherals to switch between multiple hosts at ease.
Built-in dual 10/100 Ethernet ports for Ethernet cascading capability.
Low power consumption design of 2.5W for meeting Green Environmental movement.
15KV ESD protection for all serial signal lines meeting IEC-61000-4-2 standard.
CE, FCC, VCCI, C-Tick, BSMI and RoHS certified, with Microsoft WHQL approval.
