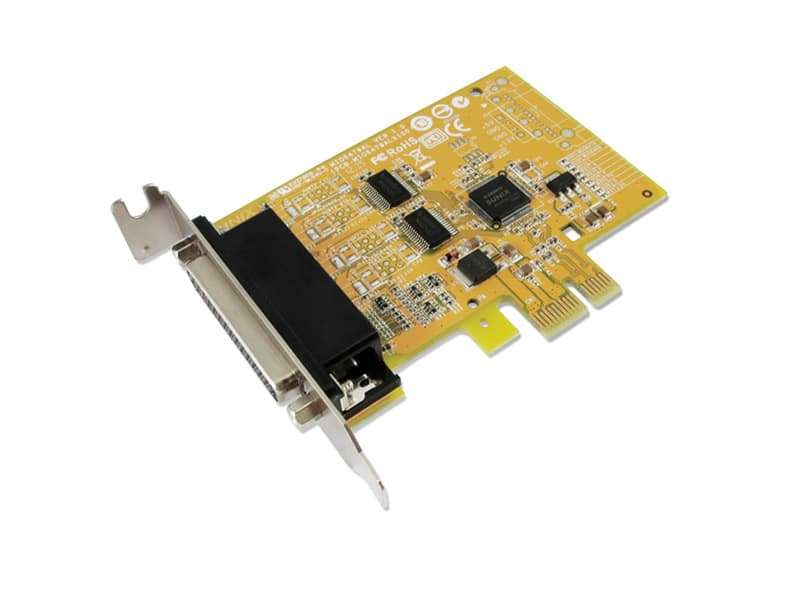

Sunix MIO6479HL 2-port RS-232 & 1-port Parallel High Speed PCI Express Low Profile Multi-I/O ...

Discover the Sunix MIO6479HL 2-port RS-232 & 1-port Parallel High Speed PCI Express Low Profile Multi-I/O Board

Elevate your connectivity with the Sunix MIO6479HL, a high-performance multi-I/O board designed to enhance your computing experience. With advanced features and exceptional speed, this board is a must-have for anyone looking to optimize their system.

Specifications

General

- Interface: RS-232 and IEEE1284

- Controller: SUNIX SUN2410 (16C950 UART Compatible)

- BUS: PCI Express Spec 2.0, Single-Lane (x1)

- IRQ & IO: Assigned by System

Serial Communication

- Interface: RS-232

- No. of Port: 2-port

- FIFO: 128byte Hardware

- Baud rate: 50bps ~ 921.6Kbps

- Flow Control: None, Xon/Xoff, RTS/CTS

Parallel Communication

- Interface: IEEE1284

- No. of Port: 1-port

- Mode: SPP / ECP / EPP / BPP

- Speed: Maximum 1.8MBps

Driver Support

- Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11

- Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)

- Linux: Linux 2.x / 3.x / 4.x / 5.x

Regulatory Approvals

- Hardware: CE, FCC, VCCI, BSMI

- Software: Microsoft WHQL Windows

Environment

- Operation Temperature: 0 to 60°C (32 to 140°F)

- Operation Humidity: 5 to 95% RH

- Storage Temperature: -20 to 85°C (-4 to 185°F)

Dimension

- PCB Dimension: 92 x 69 mm

- Bracket: Low Profile 80 mm

- Bracket Space: 1

Note:
*LPT port does not support LPT Key Locker Parallel device.
*LPT port does not support legacy 278/378/3BC ISA address under Microsoft Windows nor Linux operation systems.
* ECP / EPP / SPP / BPP modes work under Windows, and Linux driver only supports SPP mode.

Accessories

Take advantage of optional accessories such as the PCIe Add-in card Holder (Part No.: 5013-PCIFX1C00-QCN) for added convenience.

Support

Download manuals, datasheets, and drivers to get the most out of your Sunix MIO6479HL board.
