Sunix PCI Express one channel P-ATA (IDE) Host Controller Board

New 1 was available
R170.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
IDE1400
Bob Shop ID
217513013





Product Description:

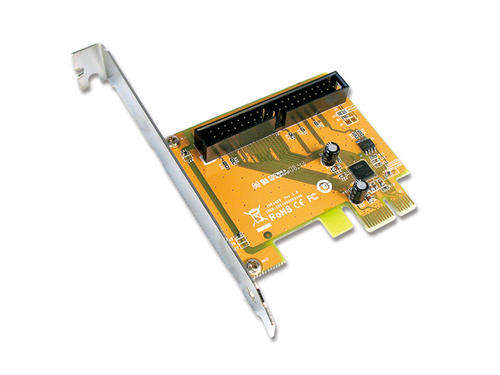

SUNIX PCI Express one channel P-ATA (IDE) Host Controller Board

SUNIX IDE1400 is an ultra high-speed ATA channel PATA (IDE) host controller board with PCI-Express x1 (one lane) interface to connect two legacy Parallel-ATA (IDE) or ATAPI devices to provide extendable connection for motherboard, desktop PC system. It achieves a 133 MB/s burst transfer rate to enabling the utilization of system built-in ATA driver with capacities greater than 137GB. In addition, IDE1400 board is driver free under Microsoft Windows and Linux operation system with system booting and data storing feature. IDE1400 works with various brands of Ultra ATA 133/100/66/33 hard disk and CF (Compact Flash card) drivers and ATAPI CD/DVD R/RW devices.

Specifications:



  •
  • Interface: PCI Express x1
  • IC: VIA VT6415
  • Port:one internal Parallel-ATA (IDE) channel
  • Mode: PIO Mode 0,1,2,3,4 Multiword DMA mode 0,1,2 UDMA 33/66/100/133
  • RAID: Do NOT support RAID function
  • O.S. Support: Microsoft Windows 2000, XP, 2003, and Vista 32/64 system, Linux 2.6.x.
  • Certification:
  •
  • UR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3
  • US: FCC Part 15 Class B
  • TAIWAN: BSMI: CNS13438
  • AS/NZS: C-Tick: CISPR22
  • JAPAN: VCCI
  •
  •
  • Approval:RoHS, CE, FCC ClassB
  • PCB Dimensions: 70mm (W) x 63mm (L)
  • Bracket: Standard 121mm / Low Profile 79.5mm





Features:



  • Supports 1-Lane 2.5Gbps PCI Express bus Spec. Revision 1.1.
  • Supports one Parallel-ATA (IDE) channel to expand two ATA/ATAPI storage devices.
  • Compliance with power management specification v1.1 and ACPI v2.0.
  • Supports system booting from add-on card function.
  • Low-profile design fitting for kinds of computer chassis (Optional).
  • Certified by CE, FCC, VCCI, BSMI, C-Tick, and RoHS.
  • Support Microsoft Windows, Linux, and DOS operation system.
