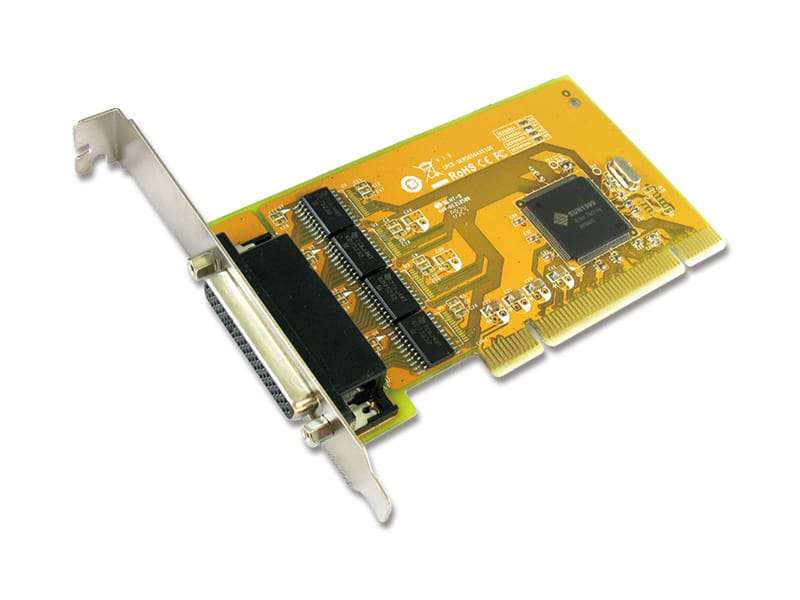

Sunix SER5056A 4-port RS-232 Universal PCI Serial Board

Specifications

Description: 4-port RS-232 Universal PCI Serial Board

Serial Communication

• Interface: RS-232
• Controller: SUNIX SUN1999 Yazi (16C950 UART Compatible)
• Bus: Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
• No. of Ports: 4-port
• IRQ & IO: Assigned by System
• FIFO: 128 byte (Hardware)
• Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
• Baud rate: 50 bps to 115.2 Kbps
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: None, Xon/Xoff, RTS/CTS
• Protection: ±2KV ESD protection for each signal Human Body Model (HBM)
• PCB connector: DB44 Female

Driver Support

• Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
• Windows Server: 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
• Linux: Linux 2.x / 3.x / 4.x / 5.x
• DOS

Regulatory Approvals

• Hardware: CE, FCC, VCCI, BSMI
• Software: Microsoft WHQL Windows

Environment

• Operation Temperature: 0 to 60°C (32 to 140°F)
• Operation Humidity: 5 to 95% RH
• Storage Temperature: -20 to 85°C (-4 to 185°F)

Dimension

• PCB Dimension: 120 x 68 mm
• Bracket: Standard 121 mm
• Bracket Space: 1

Experience the power of reliable serial communication with the Sunix SER5056A 4-port RS-232 Universal PCI Serial Board. Limited availability due to high demand - act now and enhance your connectivity with this amazing product!

Don't miss out on the opportunity to improve your setup. Add the Sunix SER5056A 4-port RS-232 Universal PCI Serial Board to your cart today and experience instant connectivity like never before!
