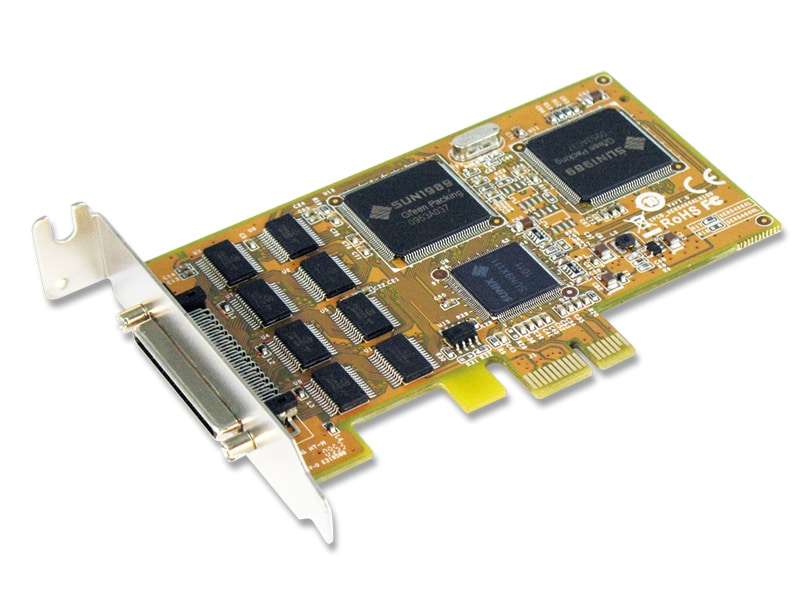

Sunix SER5466HL 8-port RS-232 High Speed PCI Express Low Profile Serial Board

Specifications

• Description: Enhance your connectivity with the 8-port RS-232 High Speed PCI Express Low Profile Serial Board.

Serial Communication

• Interface: RS-232
• Controller: SUNIX SUN1999 (16C950 UART Compatible)
• Bus: PCI Express one lane (x1)
• No. of Port: 8-port
• IRQ & IO: Assigned by System
• FIFO: 128 byte (Hardware)
• Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Baud rate: 50 bps to 921.6 Kbps
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: None, Xon/Xoff, RTS/CTS
• Protection: ±15KV ESD protection for each signal Human Body Model (HBM), ±15KV IEC1000-4-2 Air Gap Discharge, ±8KV IEC1000-4-2 Contact Discharge

Driver Support

• Windows Client: Windows XP / Vista / 7 / 8.x / 10 (X86/X64) / 11
• Windows Server: Windows 2003 / 2008 / 2012 / 2016 / 2019 / 2022 (X64)
• Other Supported Operating Systems: Linux, DOS, FreeBSD, QNX, SCO OpenServer, SCO UnixWare, Solaris, IBM OS/2

Regulatory Approvals

• Hardware: CE, FCC, VCCI, BSMI

Environment

• Operation Temperature: 0 to 60°C (32 to 140°F)
• Operation Humidity: 5 to 95% RH
• Storage Temperature: -20 to 85°C (-4 to 185°F)

Dimension

• Bracket: Low Profile 80 mm
• Bracket Space: 1

Unlock the Power of Connectivity

Experience amazing connectivity with the Sunix SER5466HL 8-port RS-232 High Speed PCI Express Low Profile Serial Board. Instantly improve your communication capabilities with eight high-speed RS-232 ports. This exclusive board offers seamless integration with various operating systems, making it perfect for both personal and professional use.

Advanced Features

• High-speed data transfer up to 921.6 Kbps.
• Support for multiple data bit and stop bit configurations.
• Enhanced protection with ±15KV ESD protection for each signal.

Limited Availability - Order Now!

Hurry! Due to high demand, the Sunix SER5466HL 8-port RS-232 High Speed PCI Express Low Profile Serial Board is in limited supply. Add it to your cart now to enjoy seamless connectivity and efficient data transfer.

Upgrade Your Connectivity Today

Don't miss out on the opportunity to enhance your communication capabilities. Upgrade to the Sunix SER5466HL
