Description;
-This is a multi-function inverter/charger, combining the functions of an inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size.
-Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications
Features;
-Pure sine wave output
-Adjustable parameter
-Lower failure rates
-Auto restart while AC is recovering
-Output short circuit protection
-Compatible with the main market product
Specifications;
Inverter Mode;
-Rated power; 3500VA/ 3000W
-DC Input; 24DC, 145A
-AC Output; 230VAC, 50Hz, 13A,1
AC Charger Mode;
-AC Input; 230VAC, 50Hz, 15A,1
-DC Output; 27VDC, 10-60A
-AC Output; 230VAC, 50Hz, 13A,1
Solar Charge Mode;
-Rated current; 60A
-Inverter weight; 15700g
-System Voltage; 24VDC
-Min. solar voltage; 30VDC
-Best Vmp range; 30-35VDC
-Max. solar voltage; [VOC]; 105VDC
-Package dimensions; l=53.5cm x h=20cm x w=40cm
What's In The Box
1 X 3.5KVA-24V PWM 3000W Solar Inverter
with mains voltage and can charge batteries.
-Auto restart while AC is recovering
-Overload and short circuit protection
-Smart battery charger design for optimized battery performance
-Cold start function
-RoHS compliant
What's in the box

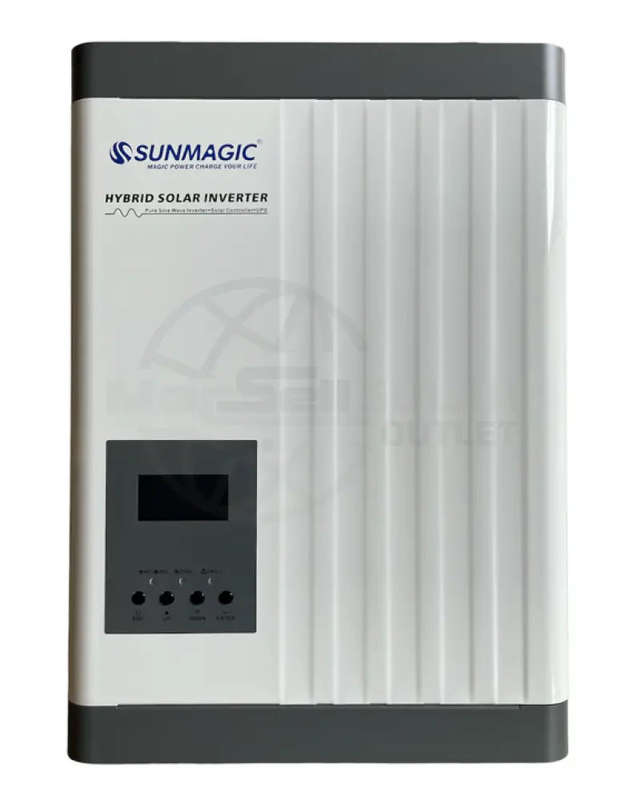

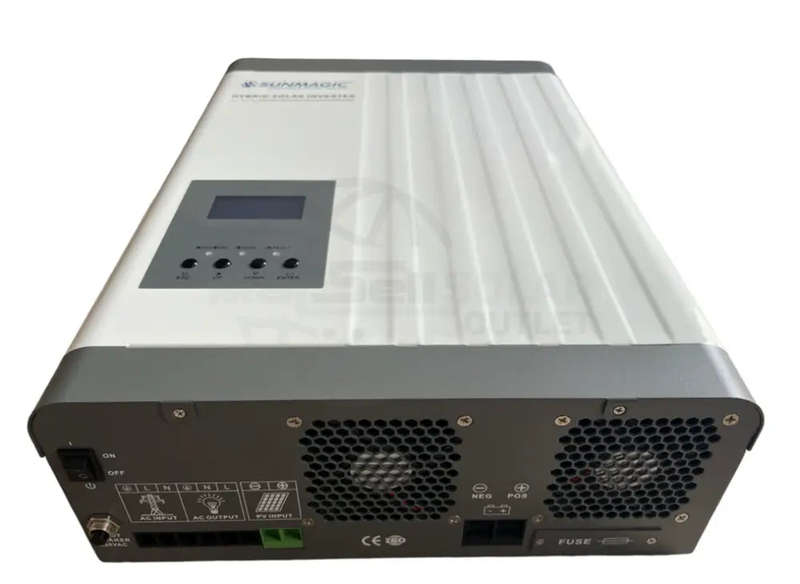

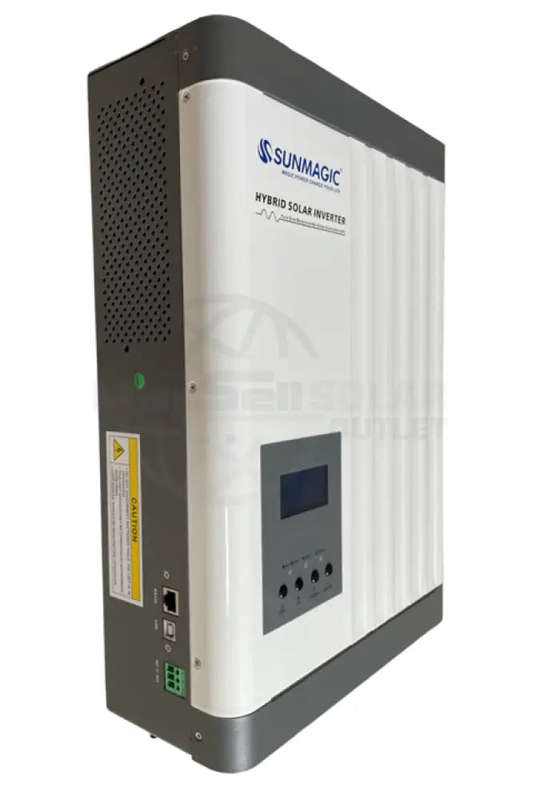

1 x Sunmagic 3.5KVA 3000w PWM 24V Solar Hybrid Inverter
1 x Communication cable
1 x User Manual
Size : 535 x 380 x 195 mm
15kg
PV INPUT:
Normal operating voltage:240Vdc Vmax PV:500Vdc
PV input voltage range:90-500Vdc Imax PV:27A
Full load MPPT range: 240-450Vdc Rated Power 6200W
Maximum Solar Charging Current:120A
GRID/AC OUTPUT:
Normal Output Voltage:220/230/240Vac Feed-in Grid Voltage Range:195-253Vac Feed-in Grid Frequency Range: 49-51+1Hz
Normal Output Curren: 15.7A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC) :97%
Normal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load:3600W
Maximum Main load:3600W Maximum Second load: 1200W Main load cut off voltage:22Vdc Main load return voltage:26Vdc AC INPUT:
Normal operating voltage:230Vac Maximum input current:30A
Normal operating frequency:50/60Hz
Surge power:7200VA
Maximum AC charging current:100A
Battery voltage range: 20-33Vdc
Maximum battery current: 150A
What's in the box
1 x Inverter
1 x User Manual
