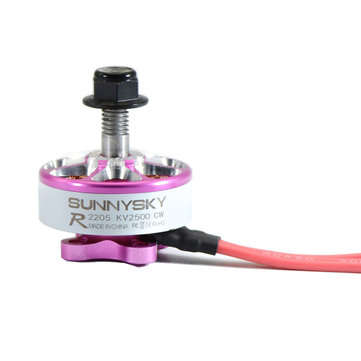

Sunnysky E-R2205 2205 2300KV 2500KV 3-4S Brushless Motor for RC Drone FPV Racing?

Notice: All motors you get are CW Screw Thread (Sliver Nut)? .
????????????? The word CCW on the motor points at the Motor Rotation.
??

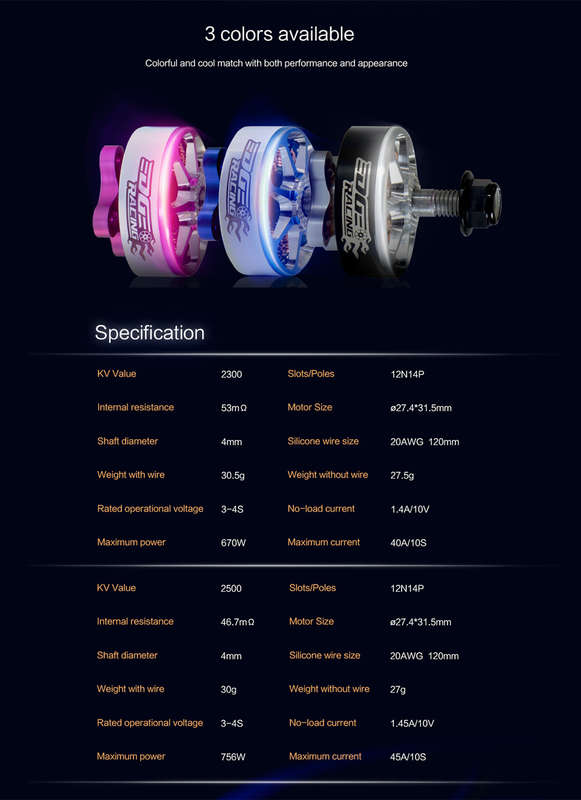

Specification:
Brand Name: Sunnysky
Model: E-R2205
Item Name: 2205 2300KV 2500KV 3-4S Brushless Motor
KV: 2300KV / 2500KV ( Optional)
Version: CW Screw Thread
??????????????? CCW Rotation (Sliver Nut)

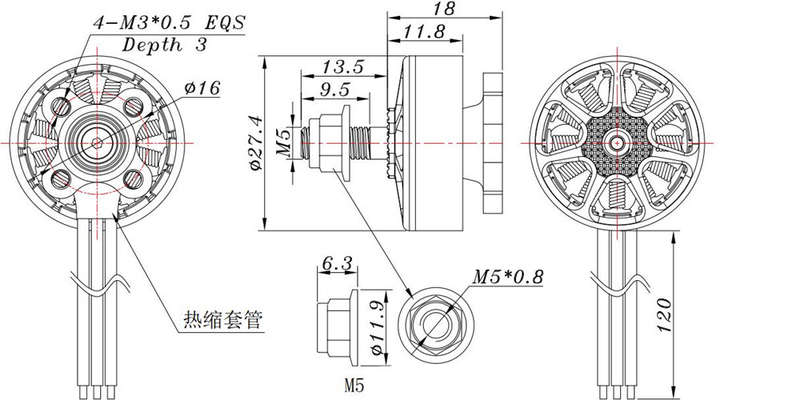

Stator Diameter: 22mm
Stator Thickness: 5mm?
No. of Stator Arms: 12
No. of Rotor Poles: 14??
Rotor Diameter: 27.4mm
Body Length: 18mm
Max. Lipo Cell: 3-4S (2300KV & 2500KV)
No-Load Current: 1.45A@10V (2300KV);? 1.4A@10V (2500KV)
Motor Resistance: 53m??? (2300KV) ;? ? ? ? 46.7m?? (2500KV)
Max. Con. Current: 40A/10s? (2300KV);? ? 45A/10s (2500KV)
Max. Con. Power: 670W (2300KV) ;????????? 756W (2500KV)
Weight: 30.5g? (2300KV);??
? ? ? ? ? ? ?30g? ? ?(2500KV)
Recommend ESC: 30-45A (2300KV);? ? 45-50A (2500KV)
Recommend Propeller: 5040 /5045 3-Blade Prop

2300KV Testing Table ()

Propeller Voltage (V) Current (A) Thrust (g) Power (W) Efficiency (g/W) RPM Temp. 100% Throttle
5040 3-Blade 14.8 1.1 100 16 6.14 8803 88a??? 40s.
2.8 200 41 4.83 12503
4.8 300 71 ?4.22 15374
7.05? 400 104 3.83 17710
9.6? 500 142 3.52 19812
12.4? 600 184 3.27 21730
15.4? 700 ?228 3.07 23679
18.4? 800 272 2.94 25180
22.1? 900 327 2.75 26445
25.8 1010 382 2.65 28001

2500KV Testing Table ()

Propeller Voltage (V) Current (A) Thrust (g) Power (W) Efficiency (g/W) RPM Temp. 100% Throttle
5040 3-Blade 14.8 1.2 100 18 5.63 8769 84a??? 26s.
2.8 200 41 4.83 12422
4.9 300 73 ?4.14 15352
7.2 400 107 3.75 17680
9.9 500 147 3.41 19990
12.7 600 188 3.19 21753
15.9 700 ?235 2.97 23598
19.3 800 286 2.80 25202
22.8 900 337 2.67 26800
26.6 1000 394 2.54 27936
30.9 1120 457 2.45 29573

Package Included:
1x Sunnysky E-R2205 2300KV Motor
1x Motor Nut
OR
1x Sunnysky E-R2205 2500KV Motor
1x Motor Nut
