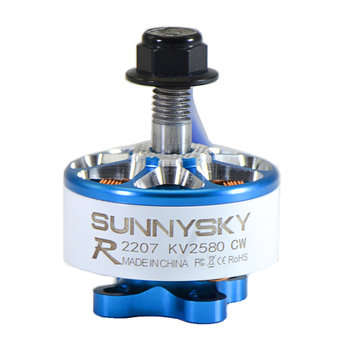

Sunnysky E-R2207 2207 1800KV 2580KV 3-4S Brushless Motor for RC Drone FPV Racing

Notice: All motors you get are CW Screw Thread (Sliver Nut)? .
????????????? The word CCW on the motor points at the Motor Rotation.

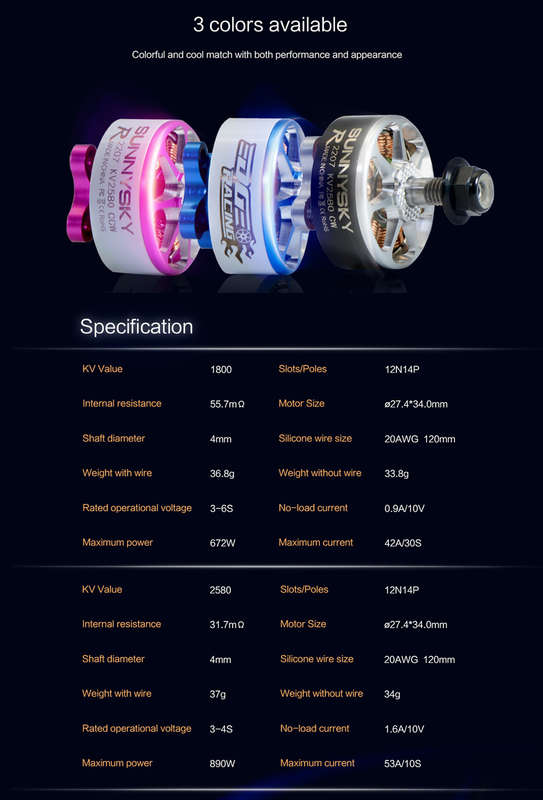

Specification:
Brand Name: Sunnysky
Model: E-R2207
Item Name: 2207 1800KV 2580KV 3-4S Brushless Motor
KV: 1800KV / 2580KV ( Optional)
Version: CW Screw Thread
??????????????? CCW Rotation (Sliver Nut)

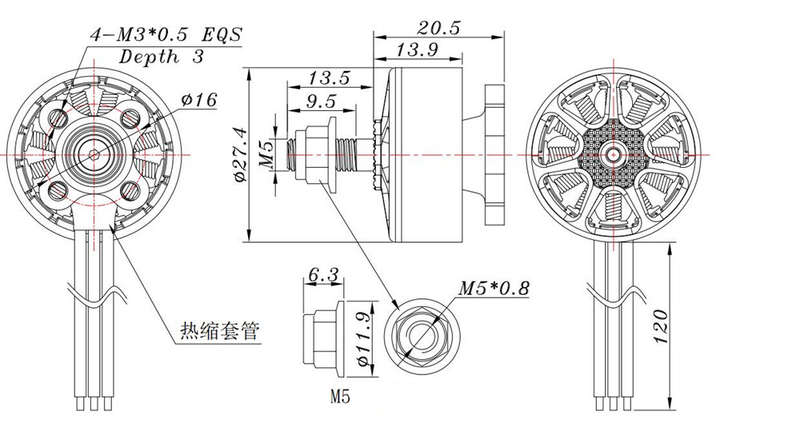

Stator Diameter: 22mm
Stator Thickness: 7mm?
No. of Stator Arms: 12
No. of Rotor Poles: 14??
Rotor Diameter: 27.4mm
Body Length: 20.5mm
Max. Lipo Cell: 3-6S (1800KV) ;? 3-4S(2580KV)
No-Load Current: 0.9A@10V (1800KV);? 1.6A@10V (2580KV)
Motor Resistance: 55.7m??? (1800KV) ;?? 31.7m?? (2580KV)
Max. Con. Current: 42A/30s? (1800KV);??? 53A/10s (2580KV)
Max. Con. Power: 672W (1800KV) ;????????? 890W (2580KV)
Weight: 36.8g? (1800KV);??
? ? ? ? ? ? ?? 37g (2580KV)
Recommend ESC: 45-50A (1800KV) ;??? 50A (2580KV)
Recommend Propeller: 5040 /5045 3-Blade Prop

2580KV Testing Table: ()

Propeller Voltage (V) Current (A) Thrust (g) Power (W) Efficiency (g/W) RPM Temp. 100% Throttle
5040 3-Blade 22.2 1.3 100 19 5.2? 8692 88a??? 7min.
3.1 200 46 4.36 12360
5.2 300 77 ?3.9? 15261
7.5 400 111 3.6 17281
10.1 500 149 3.34 19822
13 600 192 3.12 21784
15.9 700 ?235 2.97 23637
19 800 281 2.84 25364
22.69 900 336 2.68 26877
25.8 1000 382 2.62 27900
34.9 1239 517 2.4 31190


1800KV Testing Table: ( )

Propeller Voltage (V) Current (A) Thrust (g) Power (W) Efficiency (g/W) RPM Temp. 100% Throttle
5040 3-Blade 22.2 0.8 100 18 5.63 8734 80a??? 30s.
2.1 200 47 4.29 12518
3.6 300 80 ?3.75 15208
5.2 400 115 3.47 17523
7 500 155 3.22 19888
8.9 600 198 3.04 21541
10.8 700 240 2.92 23527
12.9 800 286 2.79 25401
14.8 900 329 2.74 26701
16.8 1000 373 2.68 27918
21.8 1200 484 2.48 30788
27.8 1440 617 2.33 33491

Package Included:
1x Sunnysky E-R2007 1800KV Motor
1x Motor Nut
OR
1x Sunnysky E-R2007 2580KV Motor
1x Motor Nut
