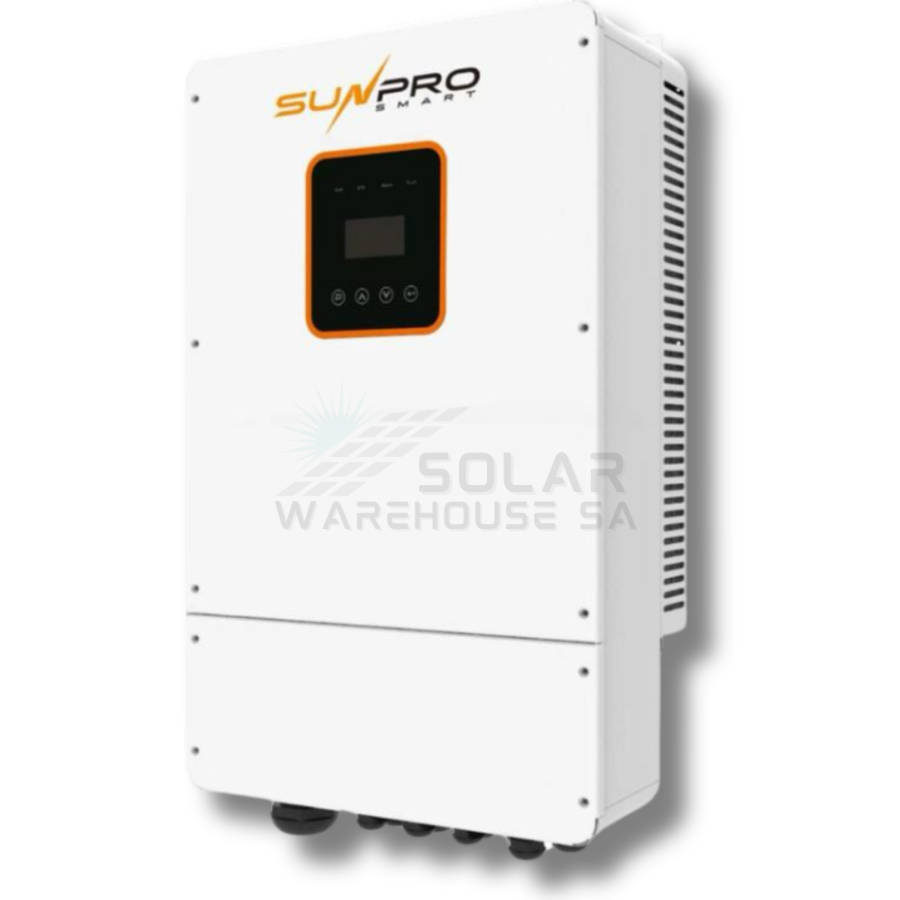

Sunpro Hybrid Solar Inverter Single Phase MPPT Parralel 8.8KW Hybrid Inverter

SOLAR HYBRID INVERTER KEY FEATURES:

• Extensive In Voltage Input
• Comptable with Lead-Acid batteries as well as Lithium Ion Batteries
• Natural Cooling, Low Noise
• IP 65 Wall Mounted Installations, space Saving
• Reverse Polarity Protection for Battery
• Compatible with CT Function
• Full Power Discharge, Charge Automatic Turn Off when fully charged
• Family Smart Energy Manager
• Power Dispatching Management System
• Virtual Distributed Power Plant

Package Includes:

• Hybrid Inverter
• Current Transformers
• DC External Connector
• AC External Connector
• USB Cable
• Hanging Wall Mount Rack
• M6 Expansion Screw
• User Manual
• Certificate of Approval
• Warranty Card
• Wifi Module
• 2M Parallel Line

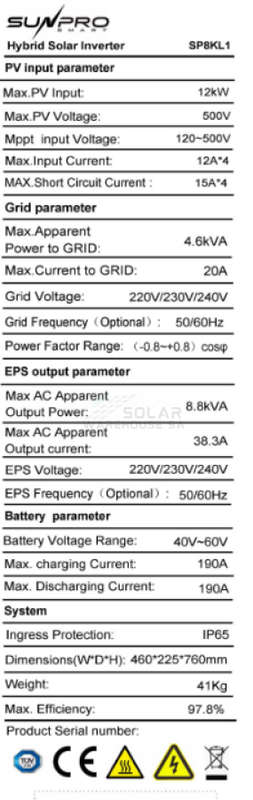

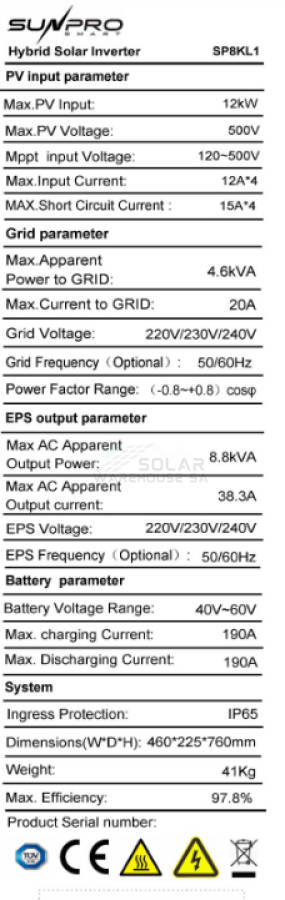

Specifications:

Pv Input Parameter
Max.PV Input: 12kW
Max.PV Voltage:500V
Mppt input Voltage:120-500V
Max.Input Current:12A 4
MAX.Short Circuit Current:15A 4

Grid parameter
Max.Apparent Power to GRID:4.6kVA
Max. Current to GRID:20A
Grid Voltage:220V/230V/240V
Grid Frequency (Optional):50/60Hz
Power Factor Range: (-0.8-+0.8) cosq

EPS output parameter
Max AC Apparent Output Power: 8.8kVA
Max AC Apparent Output current:38.3A
EPS Voltage:220V/230V/240V
EPS Frequency (Optional): 50/60Hz

Battery parameter
Battery Voltage Range: 40V~60V
Max. charging Current:190A
Max. Discharging Current:190A

System
Ingress Protection:IP65
Dimensions(W*D*H): 460*225*760mm
Weight:41Kg
Max. Efficiency:97.8%

3 Years Warranty
