Description

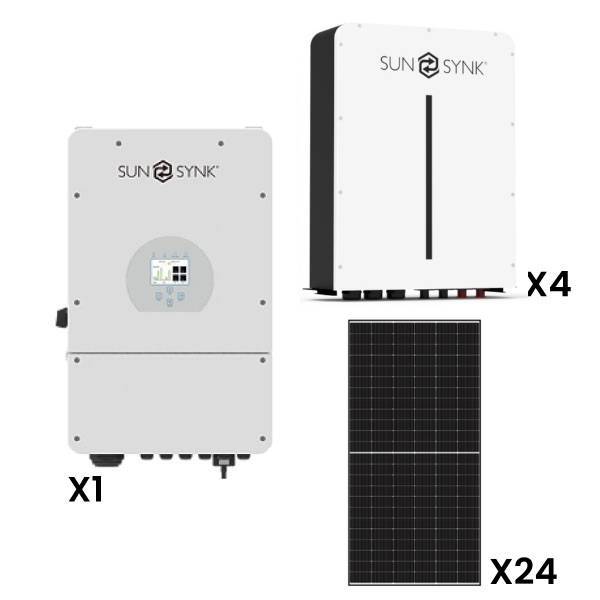

Sunsynk 16kW Solar, Inverter & Battery Combo Deal 1 X Sunsynk 16kW Inverter, 4 X 5kW Sunsynk Lithium Ion Battery 24 X 550watts Canadian Solar Panels
This system can power the following appliances:
3x LED Tv
100 led Lights
Decorder
Cell Phones
Wifi Router
3 x Fridge
X2 Chest Freezer
Computers
Fan
Kettle
Microwave
Iron
2x Air conditioner
The following appliances can also be used , but it is advisable to use them during the day when the sun is peak as
Pool Pump
Washing Machine
3 x air conditioner or borehole pump
2x geyser on a timer
At night on an approximate load excluding ( ir, pool & washing machine, borehole pump) , the battery will last around 8 to 12 hrs
Estimated Energy Production and Savings
Assuming an average of 5 peak sun hours per day in South Africa, the system could generate approximately:
- Daily Energy Production: 10.8kW (system size) x 5 hours (peak sun hours) = 54kWh/day
- Monthly Energy Production: 54kWh/day x 30 days = 1620kWh/month
With Eskom charging R4.18 per kWh, the estimated monthly savings would be:
-Monthly Savings: 1620kWh/month x R4.18/kWh = approximately R6,771.60
Annual savings would be:
- Annual Savings: R6,771.60 x 12 = approximately R81,259.20
Benefits
- Reduced Energy Bills: By generating your own energy, you'll reduce your reliance on the grid and lower your energy bills.
- Energy Independence: The battery storage system allows you to store excess energy for use during power outages or at night.
- Environmental Benefits: Solar energy is a clean and renewable source of energy, reducing your carbon footprint and contributing to a sustainable future.
System Components:
- Sunsynk 16kW Hybrid Inverter:
- Maximum Output Power: 16kW
- Battery Charge Current: 300A
- Maximum DC Input Power: 18,000W
- Maximum Efficiency: 97.60%
- Wi-Fi Ready with Sunsynk App for remote monitoring
- Sunsynk Lithium Ion Batteries:
- 4 x 5kW (20kWh total) with 100Ah capacity each
- Recommended Charge/Discharge Current: 50A
- Maximum Charge/Discharge Current: 100A
- IP Rating: IP20

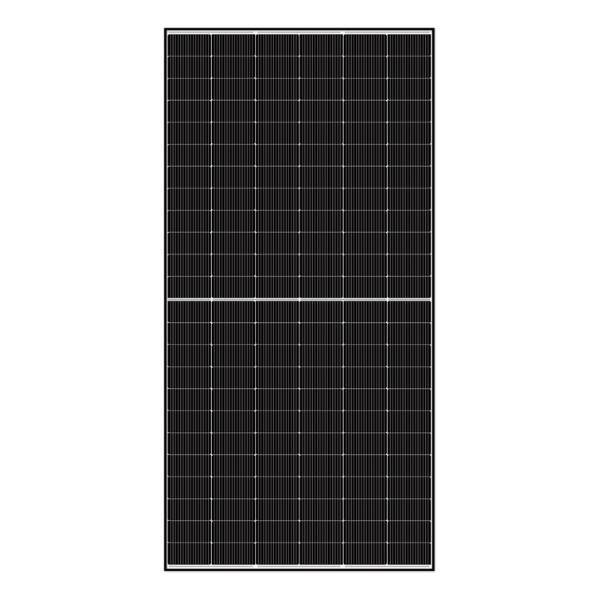

- Canadian Solar Panels (24 x 550W):
- Total Power Output: 13.2kW (24 x 550W)
- Module Efficiency: 22.60%
- Certified to withstand 2400 Pa wind load and 5400 Pa snow load
System Specifications:
- Maximum On-Grid AC Power: 16,000W
- Maximum Off-Grid AC Power: 13,000W
- Battery Voltage Range: 43-60V
- Communication with BMS: CAN/RS485
- Protection Degree: IP65
Additional Features:
- Colourful Touch LCD display
- Visual power flow screen
- Parallel/multi-invert function for grid-tied and off-grid operations
- Wi-Fi and GSM monitoring supported
- Comprehensive certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
Warranty and Support:
- 15-year limited product warranty on the inverter
- 5-year limited product warranty on batteries (extendable to 10 years with Sunsynk battery pairing)
Fee free to ask questions!
We can also recommend installation team if needed.
