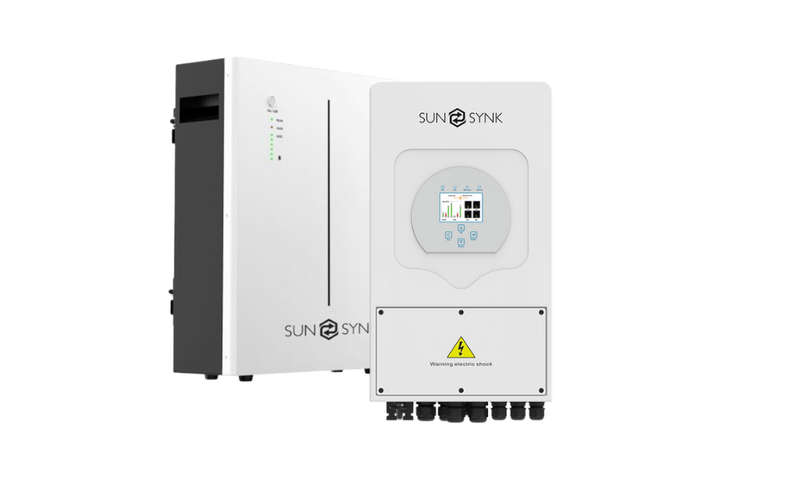

Sunsynk 5KW hybrid invertor + Sunsynk 5.12KWH lithium battery
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Kit Includes:
5KW Sunsynk Inverter,
1 x Sunsynk 5.32KW Battery
INSTALLATION AVAILABLE IN GAUTENG AT ONLY R79 000. THIS INCLUDES THE EQUIPMENT, INSTALLATION OF THE ENTIRE SYSTEM AND COC. COMPLETE TO FORM BELOW AND WE WILL CONTACT YOU TO DISCUSS THE DETAILS FOR INSTALLATION.
Sunsynk 5.5kW Hybrid Inverter
Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine all with a Sunsynk Hybrid Inverter. It's ideal for home and business and scalable so that you can expand it as required.
Start with UPS backup power (with batteries and inverter only) and add panels later.
Start with Grid-tied (with panels and inverter only) and add batteries later.
Install a complete Hybrid system including batteries and solar panels which can be expanded, or...
Go totally off the grid with a completely independent system.
Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.
- Inputs:
PV solar
AC grid power
Batteries
GeneratorOutput voltage 220/230/240Vac - Continuous power 5000W
- Backup power - 5000W
- DC 48V
- Battery charger 120A
- Transfer time <= 10ms
- Battery charger adjustable for battery bank size and type
Can charge Lead Acid and Li-ion batteries
Li-ion battery charging self-adapts to BMS - Solar Input
Max power input 6500W
Max V DC input 370V (100V~500V)
Max current input 13A + 13A
MPPTs 2
MPPT Range 125~425V - Multi-core processor design and advanced MPPT control
- High reliability and response speed
- Programmable export
- Works parallel on or off-grid
- Single-phase operation
- Multiple operating modes:Grid-tie only.Hybrid.Off-grid.Battery only
- Additional features: AC couple For additional PV input 6 stages time of use settings
- IP65
- Meter Port (Ecco model only)
Sunsynk Hybrid Inverter 5kW0Datasheet
Sunsynk 5.32kWh Battery
Sunsynk's top-grade 5.32kWh Lithium-Ion Phosphate batteries have been engineered to the highest standard.
They are capable of up to 80% depth of discharge and scalable up to 16 times, allowing for a maximum of 85.12kWh per inverter.
Our BMS (Battery Management System) also offers a quick paralleling function, so no dip switches are needed, making installation straightforward.
Our battery is 1C rated, meaning that it will be able to charge or discharge at the full 5.32kWh until it is depleted. This allows the end user to utilise the full potential of our inverter and battery systems.
Sunsynk Battery 5.32 WallMounted Datasheet
